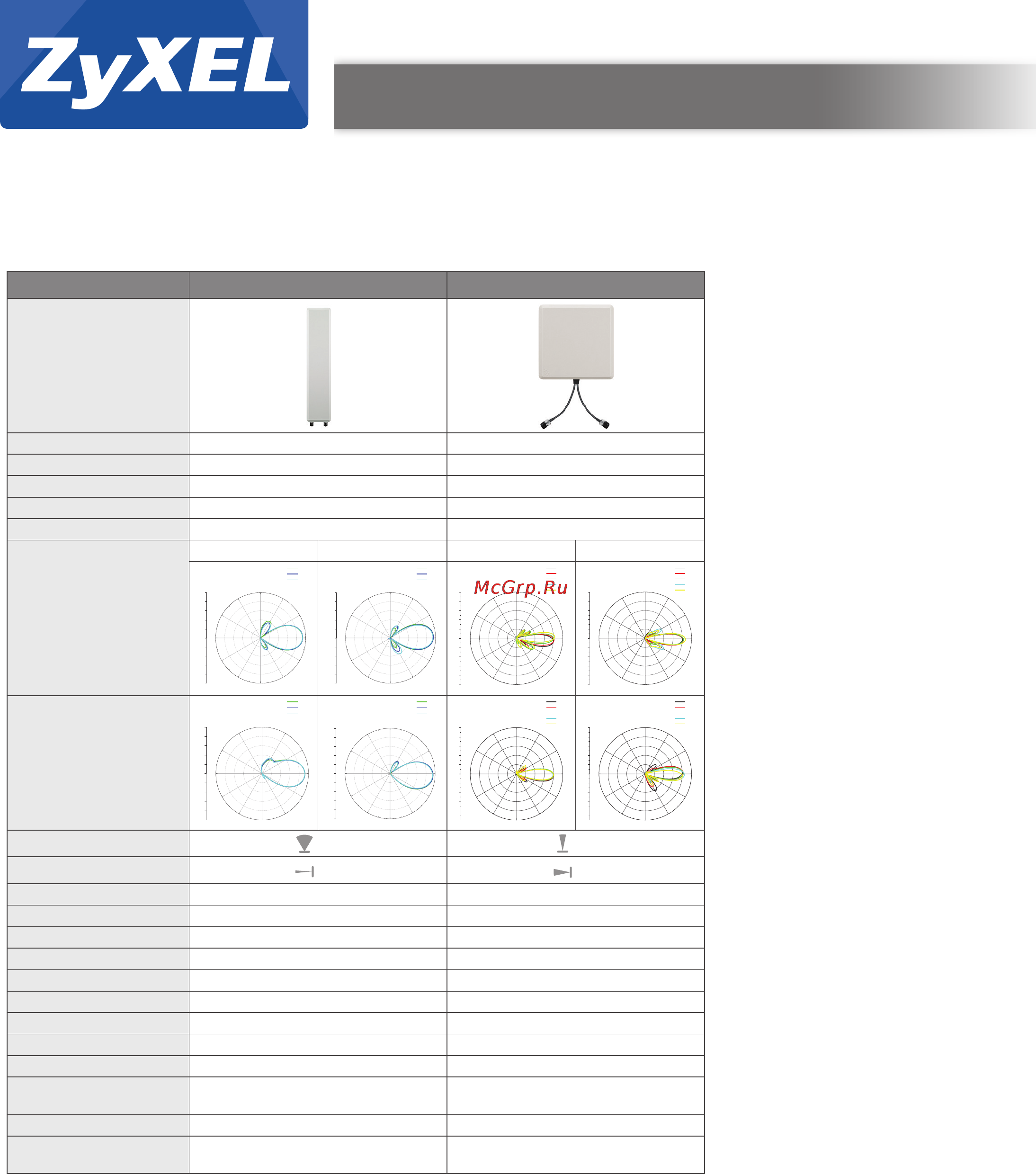

Antennas and Cables
Model ANT3315 ANT3316
Product photo
Space Outdoor Outdoor
Frequency band (MHz) 5150 - 5875 5150 - 5875
Gain 15±0.5 dBi 15 - 16 dBi
VSWR 2.0:1 Max. 2.0:1 Max.
Polarization Linear, ±45° Linear, ±90°
Radiation pattern:
H-plane
Port A Port B Port A Port B
Radiation pattern:
V-plane
HPBW/Horizontal 60° 19°
HPBW/Vertical 8° 21°
Side lobes level -5 dB Max. -
Front to back ratio -30 dB Max. -20 dB Max.
Impedance 50 Ω 50 Ω
Connector N type jack x 2 N type jack x 2
Survival wind speed 216 km/hr 216 km/hr
Temperature -40°C to 80°C/-40°F to 176°F -40°C to 80°C/-40°F to 176°F
Humidity 95% at 55°C (131°F) 95% at 55°C (131°F)
Radome color Gray Gray-white
Radome material ABS, UV resistant ABS, UV resistant
Dimensions
(WxDxH)(mm/in.)
560 x 120 x 145/22.04 x 4.72 x 5.71 210 x 210 x 73/8.27 x 8.27 x 2.87
Weight (g/lb.) 1.4/3.09 800/1.76
Accessory kit
• Mounting kit
• Quick installation guide
• Mounting kit
• Quick installation guide
-10
-5
0
5
10
15
-5
0
5
10
15
Magnitude (dBi)
0
-30
-60
-90
-120
-150
180
150
120
90
60
30
-10
-5
0
5
10
15
-5
0
5
10
15
Magnitude (dBi)
0
-30
-60
-90
-120
-150
180
150
120
90
60
30
-10
-5
0
5
10
15
-5
0
5
10
15
Magnitude (dBi)
0
-30
-60
-90
-120
-150
180
150
120
90
60
30
-10
-5
0
5
10
15
-5
0
5
10
15
Magnitude (dBi)
0
-30
-60
-90
-120
-150
180
150
120
90
60
30
2400 MHz
2450 MHz
2500 MHz
2400 MHz
2450 MHz
2500 MHz
2400 MHz
2450 MHz
2500 MHz
2400 MHz
2450 MHz
2500 MHz
5.1 GHz
5.3 GHz
5.5 GHZ
5.7 GHz
5.9 GHz
5.1 GHz
5.3 GHz
5.5 GHZ
5.7 GHz
5.9 GHz
5.1 GHz
5.3 GHz
5.5 GHZ
5.7 GHz
5.9 GHz
5.1 GHz
5.3 GHz
5.5 GHZ
5.7 GHz
5.9 GHz
-5
0
5
10
15
20
0
30
60
90
120
150
180
210
240
270
300
330
0
5
10
15
20
-5
0
5
10
15
20
0
30
60
90
120
150
180
210
240
270
300
330
0
5
10
15
20
-5
0
5
10
15
20
0
30
60
90
120
150
180
210
240
270
300
330
0
5
10
15
20
-5
0
5
10
15
20
0
30
60
90
120
150
180
210
240
270
300
330
0
5
10
15
20
