7

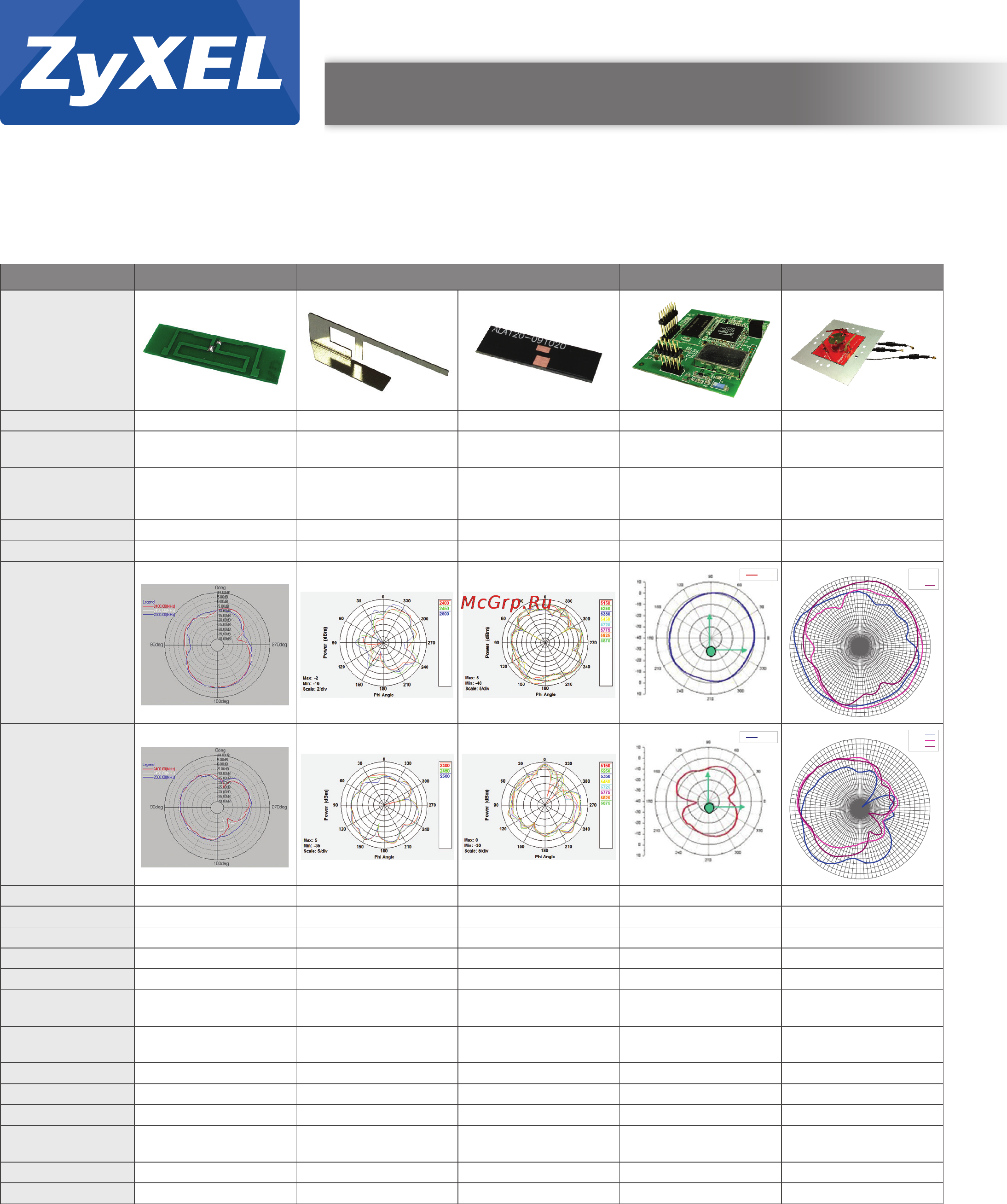

Antennas and Cables
Embedded Antenna
Model NWA1121-NI NWA1123-NI NWA1300-NJ NWA3166/NWA5160-N
Product photo
Space Embedded Embedded Embedded Embedded Embedded
Frequency band
(MHz)
2400 - 2500 2400 - 2500 5150 ‐ 5825 2400 - 2500
2400 - 2500/
5150 - 5900
Gain 4.4 dBi 2.0 dBi 2.0 dBi 2 dBi
6.0 dBi @2440 MHz/
5.1 dBi @5200 MHz/
8.0 dBi @5800 MHz
VSWR 1.92:1 Max 2.0:1 Max 2.0:1 Max 2 Max 2:1 Max
Polarization Linear, vertical Linear, vertical Linear, vertical Linear Linear
Radiation pattern:
H-plane
Radiation pattern:
V-plane
HPBW/Horizontal - - - - -
HPBW/Vertical - - - - -
Front to back ratio - - - - -
Impedance 50 Ω 50 Ω 50 Ω 50 Ω 50 Ω
Connector MHF IPEX IPEX - MHF
Survival wind
speed
- - - - -
Temperature
-10°C to 60°C/
14°F to 140°F
‐20°C to 55°C/
-4°F to 131°F
‐20°C to 55°C/
-4°F to 131°F
-40°C to 85°C/
-40°F to 185°F
-20°C to 70°C/
-4°F to 158°F
Humidity - 95% at 40°C/104°F 95% at 40°C/104°F 30% to 70% 0% to 95%
Radome color - - - - -
Radome material - - - - -
Dimensions
(WxDxH)(mm/in.)
38.4 x 10.4 x 0.6/
1.512 x 0.409 x 0.0197
35.5 x 10 x 4.7/
1.40 x 0.39 x 0.19
19 x 6 x 0.6/
0.75 x 0.24 x 0.023
5.2 x 2.0 x 1.1/
0.205 x 0.079 x 0.043
90 x 90 x 15.45/
3.543 x 3.543 x 0.608
Weight (g/lb.) 0.78/0.002 1.5/0.003 0.8/0.002 - 19/0.042
Accessory kit - - - -
-
Peak gain = -5.42 dBi
Average gain = -8.98 dBi
Peak gain = 1.69 dBi
Average gain = -3.22 dBi
dBi
dBi
-30
-28
-26
-24
-22
-20
-18
-16
-14
-12
-10
-8
-6
-4
-2
0
2
4
6
-20
-18
-16
-14
-12
-10
-8
-6
-4
-2
0
2
4
6
8
ANT 3
ANT 2
ANT 1
ANT 3
ANT 2
ANT 1
