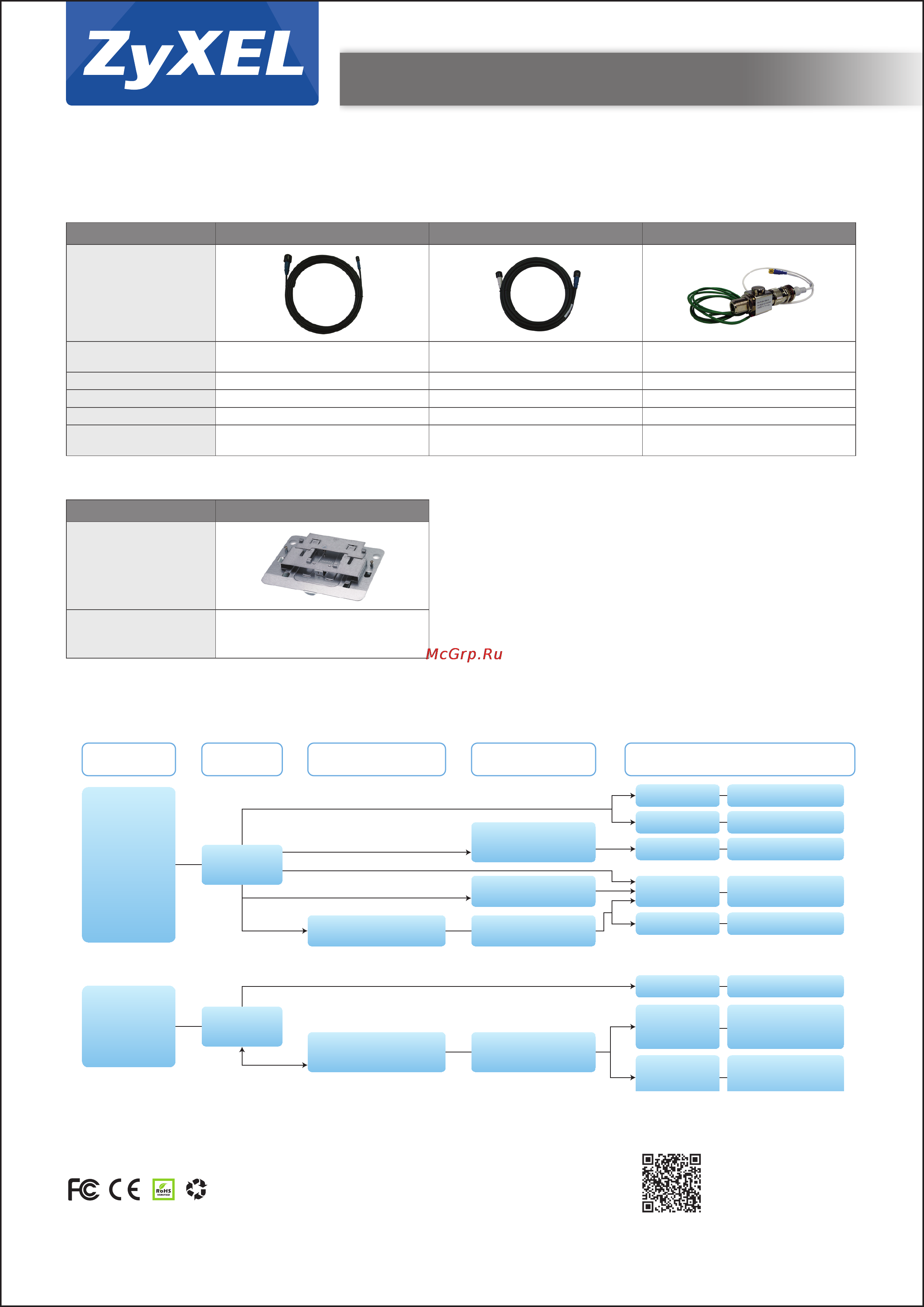

Antennas and Cables
F o r m o r e p r o d u c t i n f o r m a t i o n , v i s i t u s o n t h e w e b a t w w w . Z y X E L . c o m
Copyright © 2013 ZyXEL Communications Corp. All rights reserved. ZyXEL, ZyXEL logoare registered trademarks
of ZyXEL Communications Corp. All other brands, product names, or trademarks mentioned are the property of
their respective owners. All specications are subject to change without notice.
5-100-00713004 02/13
Installation Compatibility
Cable
Model LMR 200-N LMR 400-N EXT-300
Product photo
Connector N-plug, RP-SMA plug N-plug, N-plug
RP-SMA plug, N-jack (Jumper cable)/
N-plug, N-jack (Surge arrestor)
Cable length 3 m, 9 m 1 m, 9 m 0.5 m
Outer diameter 4.95 mm 10.29 mm -
Operating temperature -40°C to 85°C/-40°F to 185°F -40°C to 85°C/-40°F to 185°F -40°C to 85°C/-40°F to 185°F
Attenuation 55.4 dB/100 m @2.5 GHz 22.2 dB/100 m @2.5 GHz
1.5 dB @3 - 6 GHz (Jumper cable)
14 dB @4 - 6 GHz (Surge arrestor)
Ceiling Mounting Kit
Model Ceiling Mounting Kit
Product photo
Description
For NWA-3160, NWA-3163 &
NWA-3166, NWA3160-N, NWA3560-N,
NWA5160N, NWA5560-N
SMA-R
(jack)
LMR 200-N
RP-SMA plug to N-plug
EXT-300
Surge Arrestor
EXT-300
Surge Arrestor
EXT-300
Jumper Cable &
Surge Arrestor
Cables
Indoor
NWA1100
NWA1100-N
NWA-3160
NWA-3163
NWA-3500
NWA3160-N
NWA3560-N
NWA5560-N
Indoor Use
Outdoor
Outdoor
Outdoor
Outdoor
AP Models
Connector
Type
Surge Arrestor
(Optional)
Antennas
N-Type
(jack)
LMR 400-N
N-plug to N-plug
EXT-300
Surge Arrestor
2.4/5 GHz
2.4 GHz
5 GHz
2.4 GHz
2.4/5 GHz
Direct Connect
NWA-3500
NWA3550-N
NWA5550-N
Outdoor Use
Cable
Extension
EXT-108, EXT-114
EXT-109, EXT-118
ANT2206
2.4 GHz ANT1310
2.4/5 GHz ANT2105
ANT1313, ANT1314
EXT-108, EXT-118
EXT-109, EXT-114
ANT2105
ANT3108, ANT3218
5 GHz
ANT3108, ANT3218
ANT3315, ANT3316
