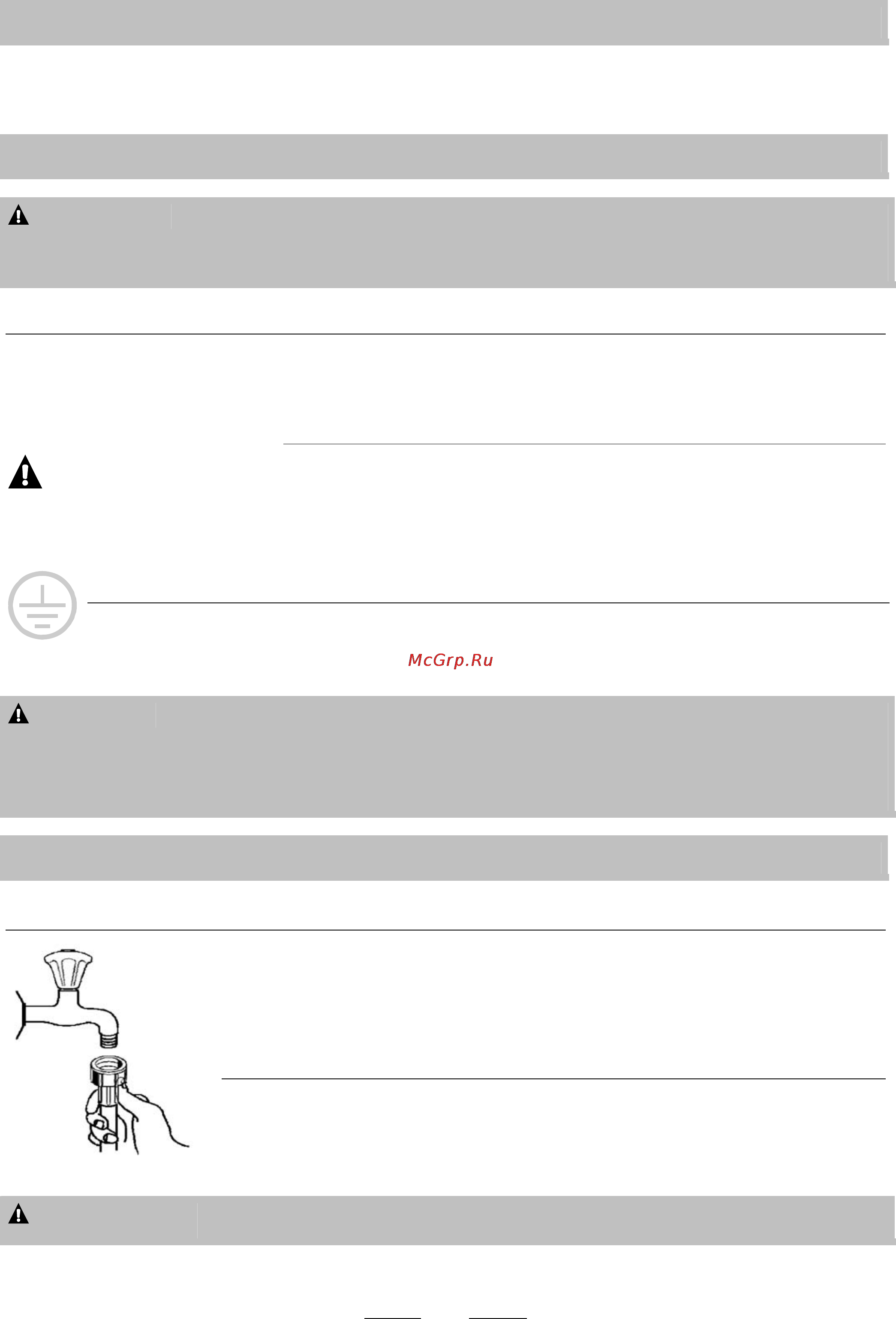

16
Positioning the Appliance
Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent
cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to
facilitate proper installation.
About Power Connection
WARNING!
For personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.
Electrical Requirements
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this
appliance.
Electrical Connection
Ensure the voltage and frequency of the power being corresponds to those on the
rating plate. Only insert the plug into an electrical socket which is earthed properly. If
the electrical socket to which the appliance must be connected is not appropriate for
the plug, replace the socket, rather than using adaptors or the like as they could cause
over heating and burns.
GROUNDING INSTRUCTIONS
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk
of electric shock by providing a path of least resistance for the electric current. This appliance is equipped
with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into
an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.
WARNING!
Improper connection of the equipment earthing conductor can result in the risk of an electric
shock.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
Water Connection
Cold Water Connection
Connect the cold water supply hose to a threaded 3/4 (inch) connector and make sure that it is
fastened tightly in place. If the water pipes are new or have not been used for an extended
period of time, let the water run to make sure that the water is clear and free of impurities. If this
precaution is not taken, there is a risk that the water inlet can get blocked and damage the
appliance.
Hot Water Connection
The water supply to the appliance can also be connected to the house hot water line
(centralized system, heating system), as long as it does not exceed a temperature of 60°C. In
this case, the wash cycle time will be shortened by about 15 minutes and the wash efficiency
slightly reduced. The connection must be made to the hot water line following the same
procedures as those for the connection to the cold water line.
WARNING!
In order to avoid that there is more water staying in the inlet hose, please close the hydrant after
using. (Not applicable to appliances without aqua-stop.)
Insure proper ground
exists before use
