LSI Corporation
- 49 -
6Gb/s MegaRAID SAS RAID Controllers User Guide
August 2012
Chapter 3: MegaRAID SAS RAID Controller Characteristics
6Gb/s MegaRAID SAS RAID Controller Family
The MegaRAID SAS 9271-8iCC RAID controller controls eight internal SAS+SATA ports through two SFF-8087 mini
SAS 4i internal connectors. This RAID controller ships as standard with CacheCade (CC) Pro 2.0 and Fast Path software
enabled out of the box.
3.1.7.1 MegaRAID SAS 9271 RAID Controller – Board Layout and Jumper/Connector Information
This subsection provides the board layout, and the connector and jumper information for the MegaRAID SAS 9266-8i
RAID controller.
The following figure shows the jumpers and the connectors on the RAID controller. The jumpers are set at the factory,
and you usually do not need to change them.

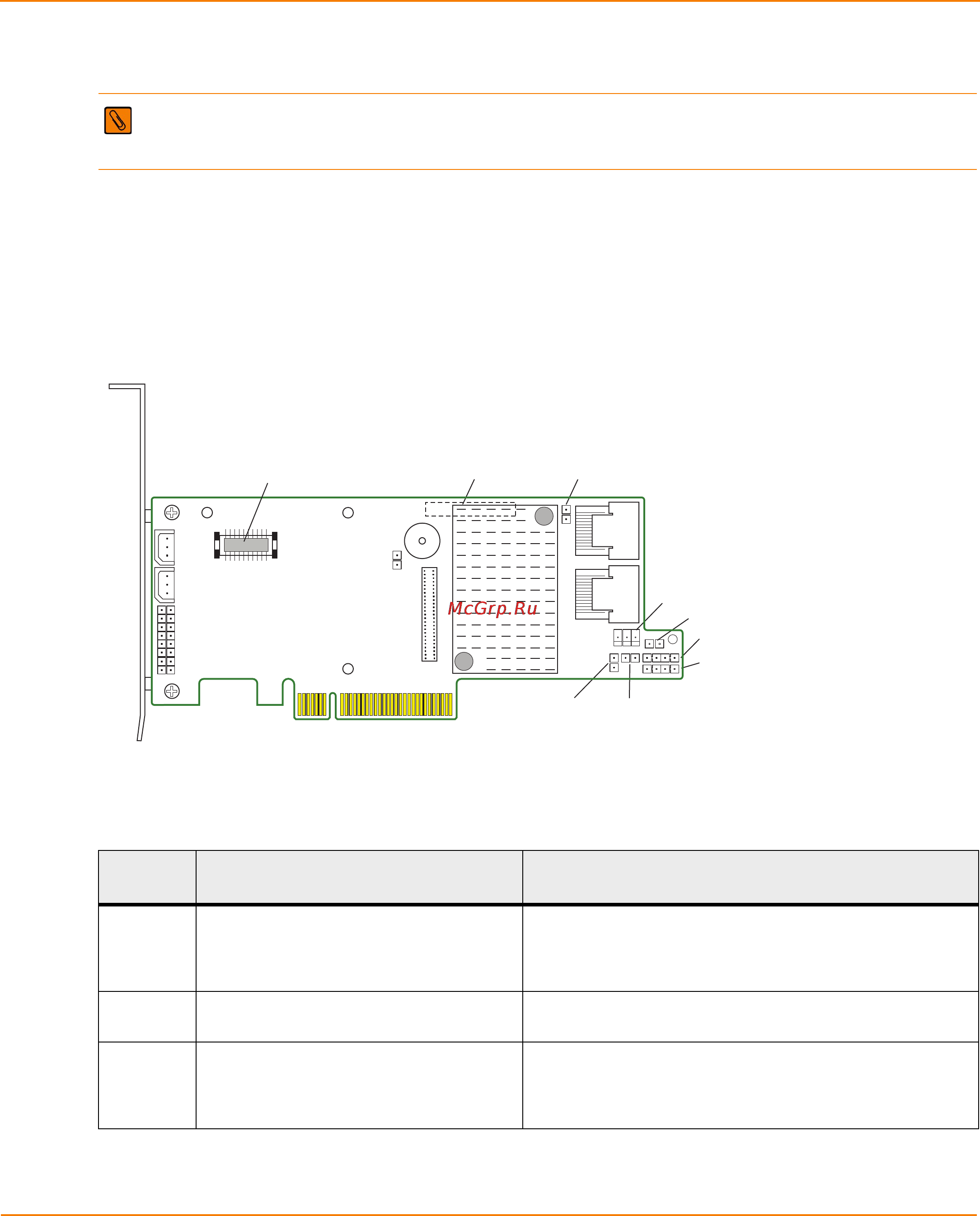

Figure 18 Layout of the MegaRAID SAS 9271-8i RAID Controller
The following table describes the jumpers and the connectors on the MegaRAID SAS 9271 RAID controllers.
NOTE The MegaRAID SAS 9271-4i RAID controller does not contain the J5B1 connector, which supports
ports 4 to 7. The J5B1 connector is on the MegaRAID SAS 9271-8i RAID controller and on the MegaRAID
SAS 9271-8iCC RAID controller.
Table 12 MegaRAID SAS 9271 RAID Controllers – Jumpers and Connectors
Jumper/
Connector
Type Description
J1A2 SCS Backplane Management connector 3-pin shielded header
Implements an enclosure management module that is responsible
for providing enclosure management functions for storage
enclosures and server backplanes.
J1A3 Local Battery Backup Unit connector 20-pin connector
Connects the LSIiBBU09 unit directly to the RAID controller.
J1A4 SCS Backplane Management connector 3-pin shielded header
Implements an enclosure management module that is responsible
for providing enclosure management functions for storage
enclosures and server backplanes.
3_00890-01
J3A1
J4B1
J3L1
J5A2
J6B3 J6B5
J6B6
J6B4
J6B2
J6B1
J1A3
J2B4
J1A2
J1A4
J1B1
J5A1
J5B1
