LSI Corporation
- 57 -
6Gb/s MegaRAID SAS RAID Controllers User Guide
August 2012
Chapter 3: MegaRAID SAS RAID Controller Characteristics
6Gb/s MegaRAID SAS RAID Controller Family
J2D1 Standard Edge Card connector The RAID controller interfaces with the host system though a
standard edge card.
This interface provides power to the board and an I
2
C
interface connected to the I
2
C bus for IPMI.
J3B1 x4 SAS Ports 8 to 11 internal connector SFF-8087 x4 internal mini SAS connector
Connects the controller by cable to SAS drives or
SATA drives.
J4A1 Module CPLD 1x8-pin connector
Reserved for LSI use.
J4A2 Activity LED header 2-pin connector
Connects to an LED that indicates activity on the drives
connected to the controller.
J4A3 Global Drive Fault LED header 2-pin connector
Connects to an LED that indicates whether a drive is in a
fault condition.
J4A4 LED Locate and Fault Indication header
Ports 8 to 11
Ports 12 to 15
2x8-pin header
Connects to an LED array that indicates whether a drive is in
a fault condition. There is one LED per port. When lit, each
LED indicates the corresponding drive has failed or is in the
Unconfigured-Bad state.
The LEDs function in a direct-attach configuration (there are
no SAS expanders). Direct attach is defined as a maximum of
one drive connected directly to each port.
NOTE This header is used for RAID controllers with internal
SAS ports only.

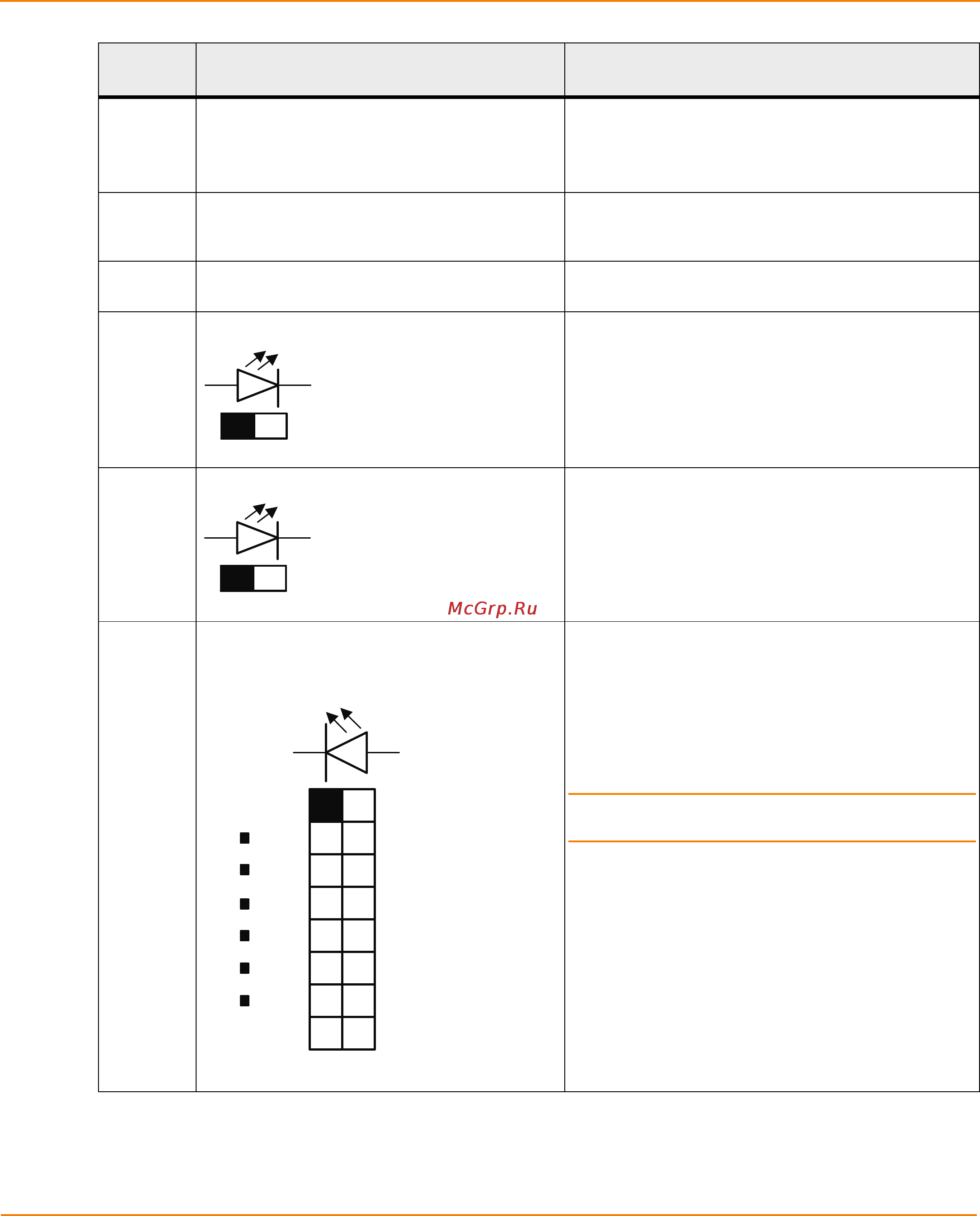

Table 15 MegaRAID SAS 9280-24i4e RAID Controller – Connectors (Continued)
Jumper/
Connector
Type Description
J4A2
+ve
ak
-ve
J4A3
ak
+ve -ve
J4A4
PORT 8
PORT 15
+ve-ve
ka
