Powering Up the Control Head
Turn on your Fishing System by pressing the POWER/LIGHT key. The Title screen is displayed until the
Fishing System begins operation. Your 1100 Series™ will begin Normal or Simulator operation, depending
on the presence or absence of a transducer.

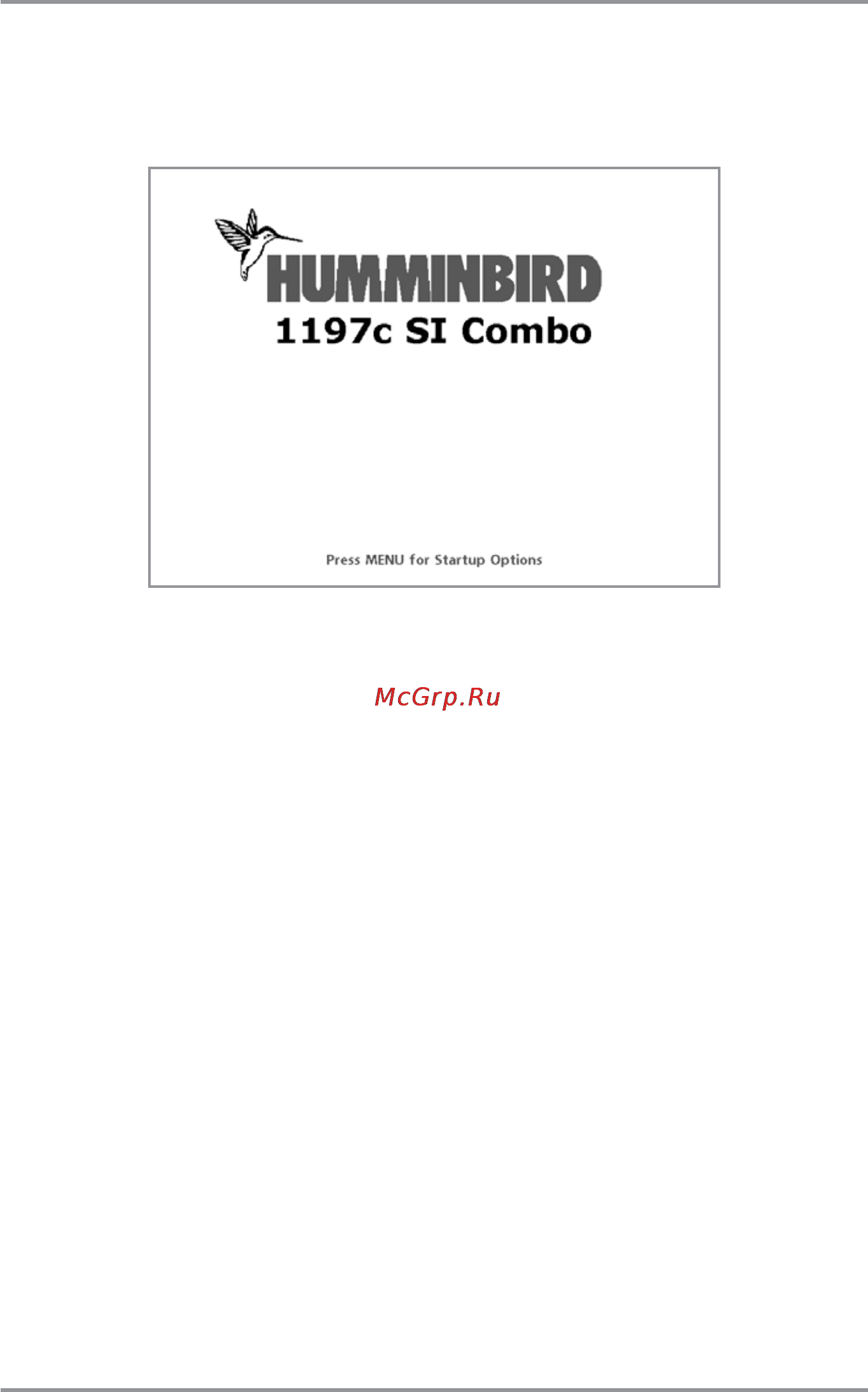

1100 Series™ Title Screen
47
