NOTE: Sonar chart speed is increased during Fast Forward and reversed during Rewind. This may reduce the
quality of the sonar image, since at higher speeds, not every sonar return can be processed and displayed.
NOTE: Navigation is not affected by the Sonar Recording feature, but any active navigation is cancelled when
playback begins or ends.
You can delete the highlighted recording, or all recordings, using Delete Recording or Delete All Recordings
from the Snapshot and Recording X-Press™ menu.

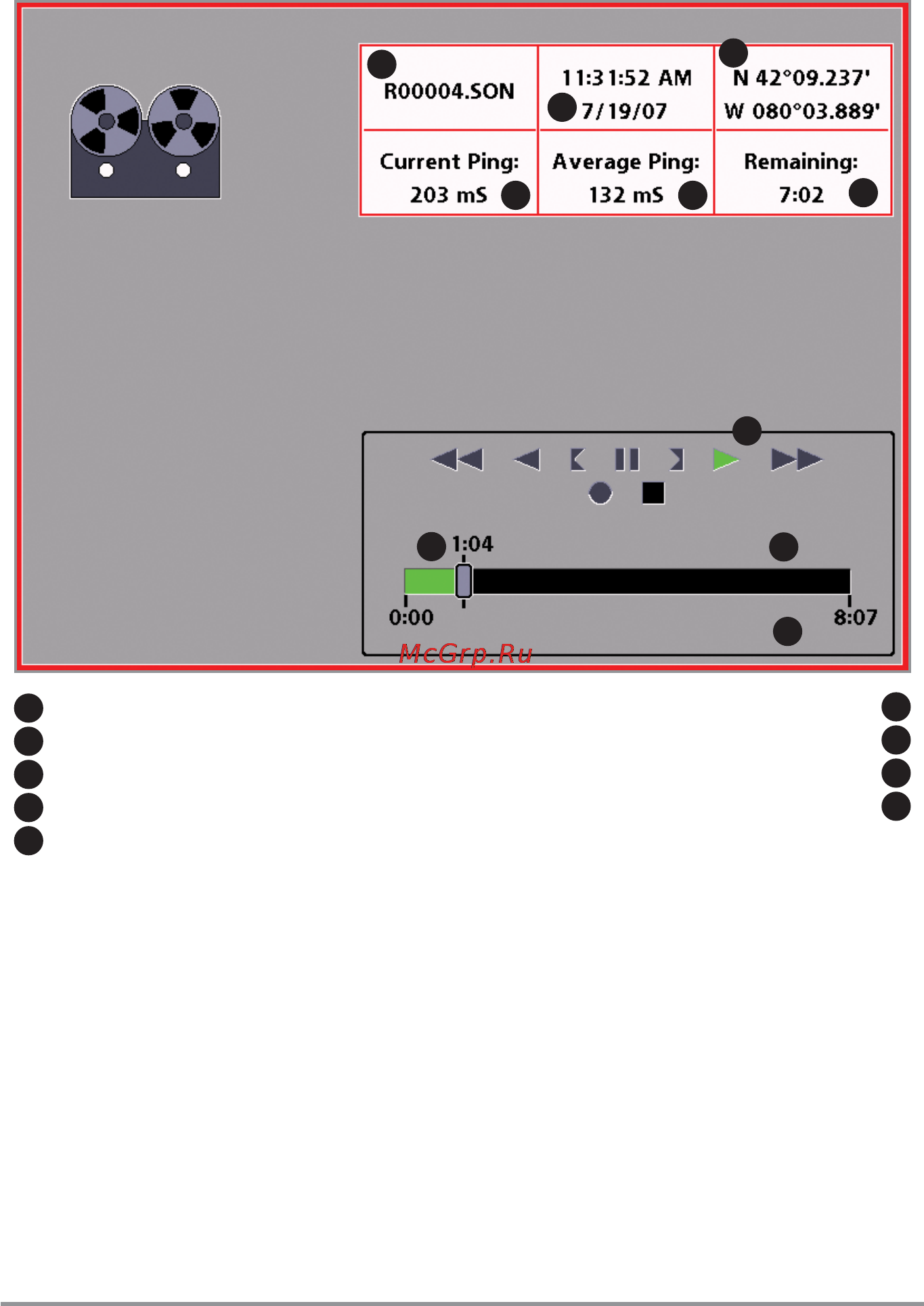

Name of recording Amount of time remaining to play
1
6
Time and Date recording started Playback speed icons
2
7
Position when recording started Amount of time already played
3
8
Current Ping Rate Overall length of recording
4
9
Average Ping Rate
5
10
Recording Playback
8
1
2
3
4 5
6
7
6
9
78
