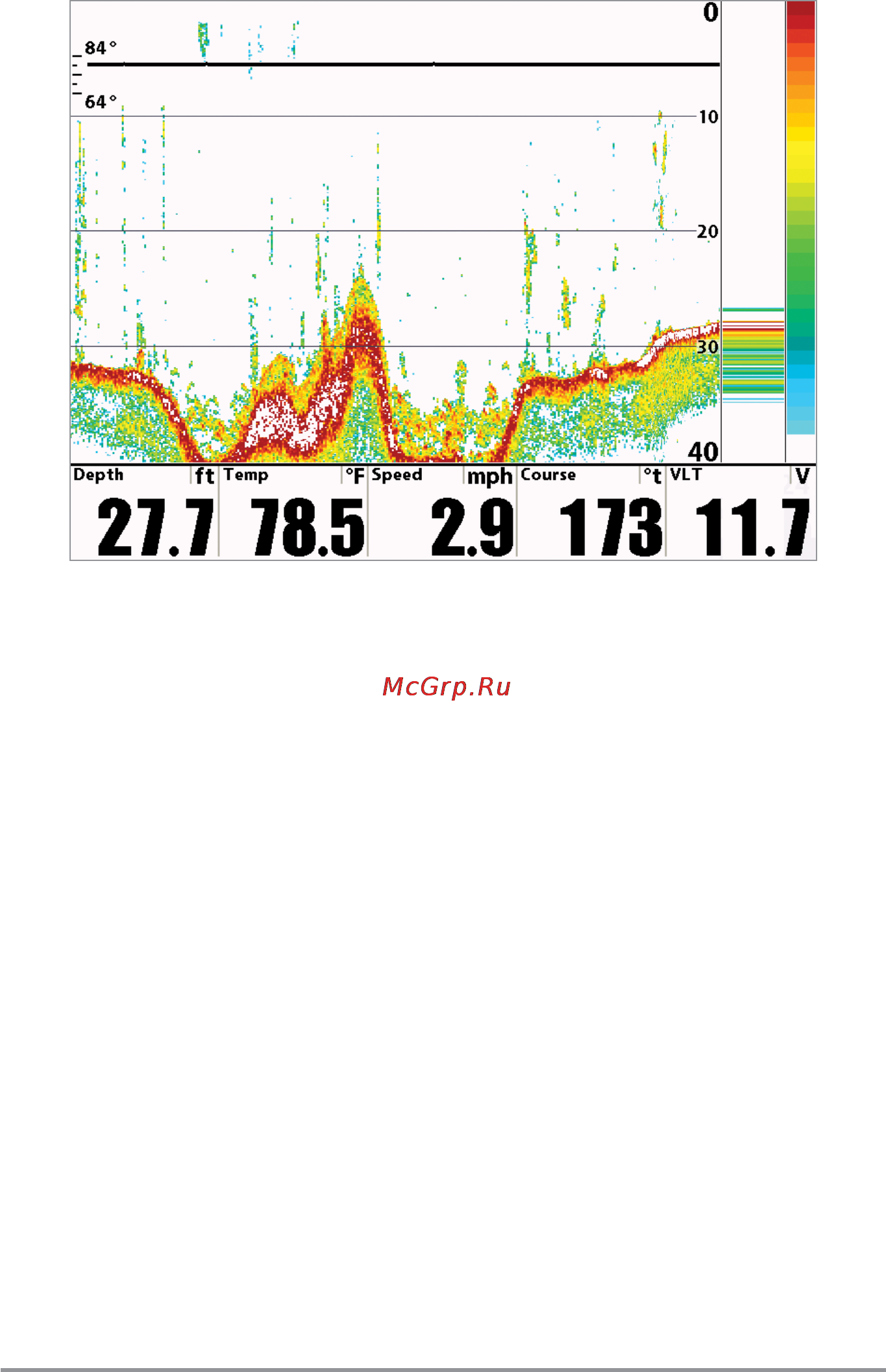

WhiteLine® highlights the strongest sonar returns in white, resulting in a distinctive outline. This has the benefit of
clearly defining the bottom on the display.
