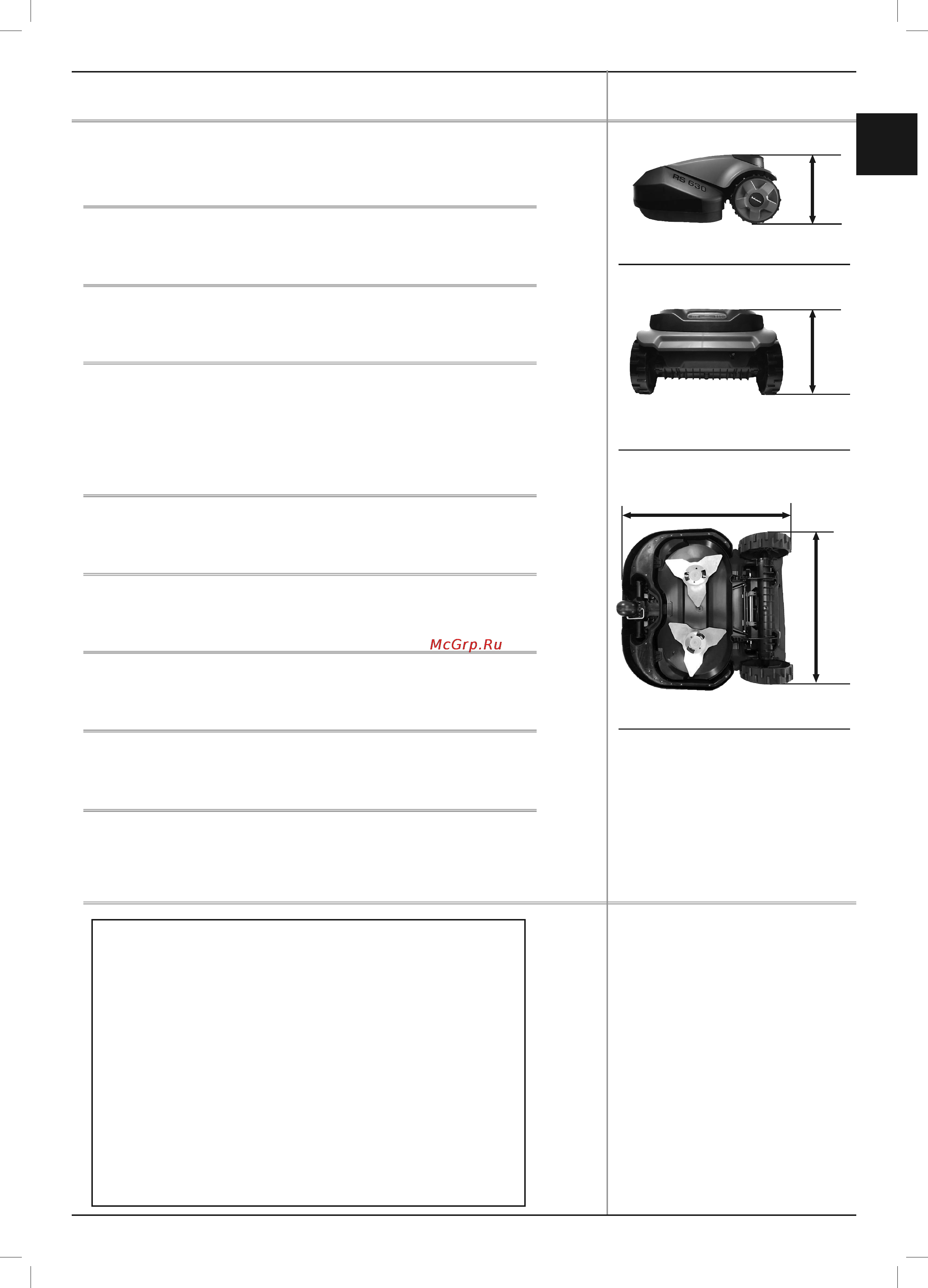

Robomow S models
Chapter 8 Specifications
Max Lawn Size
RS615/625/635: 1500m
2
/ 2500m
2
/ 3500m
2
(16000 / 27000 / 37500 ft
2
).
Dimensions
73.5 cm (L) x 66 cm (W) x 31 cm (H) / (29” L x 26” W x 12.2” H).
Weight
20 kg (44 lb.) Including batteries.
Noise level
ECO Mode: 66 dB
Hi Power: 72 dB Measured (Guaranteed – 74 dB).
The noise at the operator’s ears less than 70 dBA.
Mowing Width
56 cm Cutting Width – 2 Blades of 28 cm (22”).
Mowing Height
20-80 mm (0.8”-3”).
Mowing Motors
DC Brush for RS615. DC Brushless for RS625/635
Blade Motor RPM
4000 rpm (ECO Mode – 3300 rpm).
Batteries and Charging (RS635 model)
26V Lithium Iron-Phosphate Battery (LiFePO4) 6Ah
Charging Time – Max. 2 hours.
EN
L
W
H
H
L
W
H
H
Anti-Theft Code
Write down your 4-digit Anti-Theft code.
Return here, if you ever forget the code.
____ ____ ____ ____
Robomow Serial Number
_______________________
SIDE
REAR
BOTTOM
