Инструкция по эксплуатации Страница: 106

Lenovo thinkpad t540p, 20be0098rt Инструкция по эксплуатации онлайн [106/182] 157416

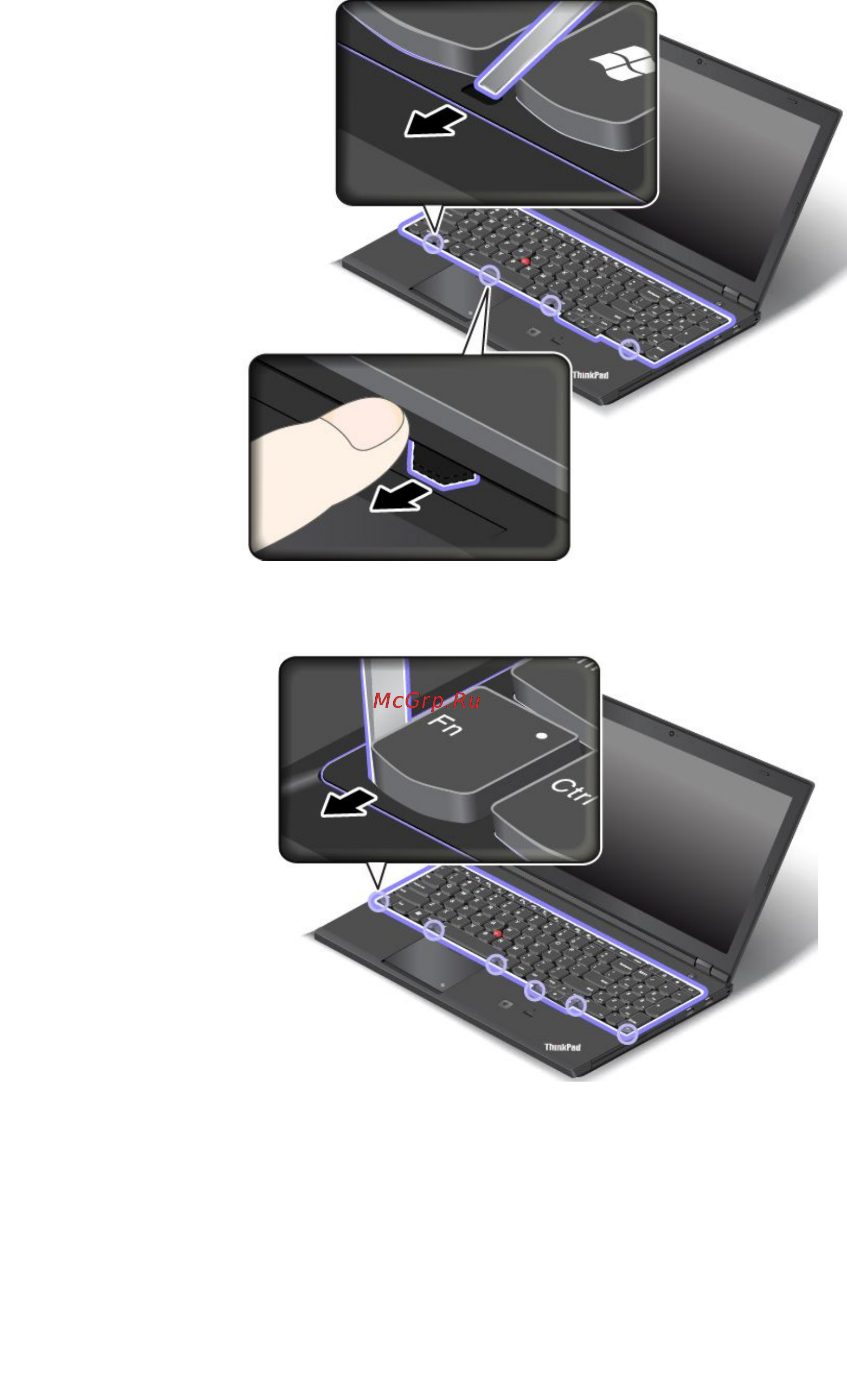

5.Slidethekeyboardframebackwardby2.5mm(0.1inch)withtheatendofthekeyboardmulti-tool.

Hidethelatchesofthekeyboardframeunderthekeyboardbezelbypushingthelatcheswithyour

ngerasshown.

6.Adjustthekeyboardframeinplacewiththeatendofthekeyboardmulti-tooltoensurethatallthe

latchesaresecuredunderthekeyboardbezel.

7.Reinstallthebatterypack.See“Replacingthebatterypack”onpage65.

8.Turnthecomputeroveragain.Connecttheacpoweradapterandallcablestothecomputer.

90UserGuide
