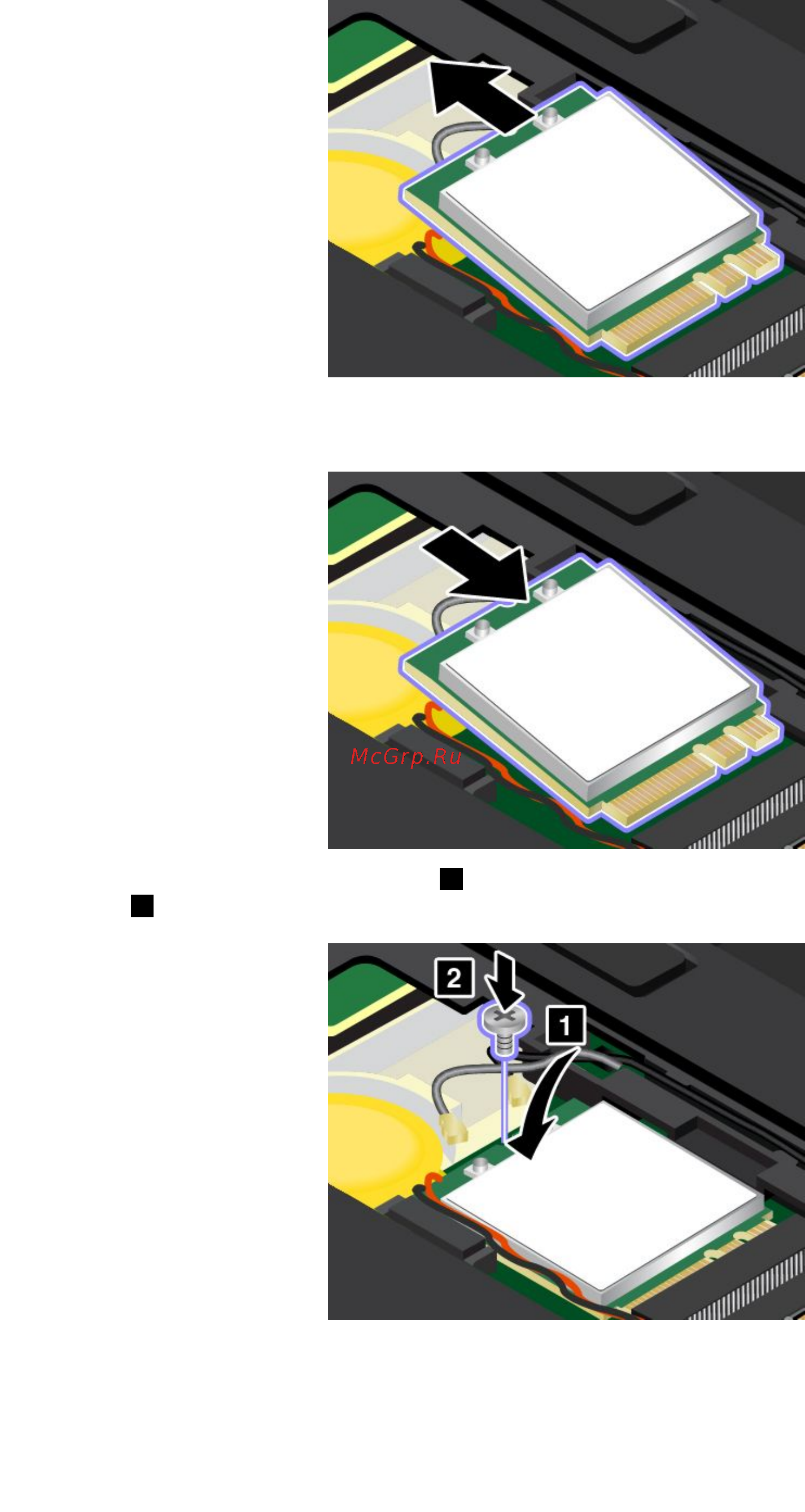

7.CarefullyremovethewirelessLANcardoutoftheslot.

8.AlignthecontactedgeofthenewwirelessLANcardwiththekeyintheslot.Thencarefullyinsertthe

newwirelessLANcardintotheslotatanangleofabout20degrees.

9.PivotthewirelessLANcarddownward1,andtheninstallthescrewtosecurethewirelessLANcard

inplace2.

78UserGuide
