Lenovo thinkpad t540p, 20be0098rt Инструкция по эксплуатации онлайн [98/182] 157416

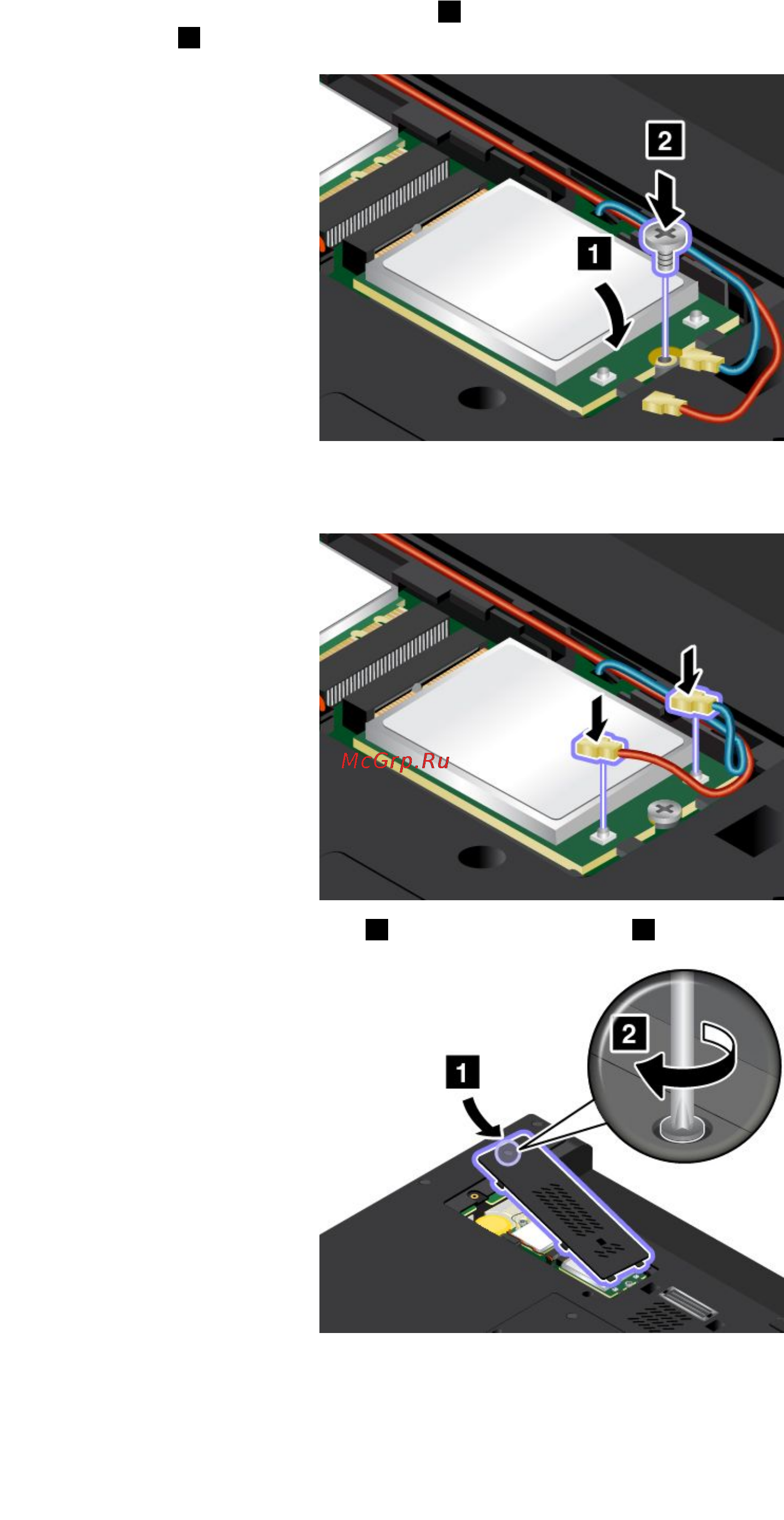

9.PivotthewirelessWANcarddownward1,andtheninstallthescrewtosecurethewirelessWAN

cardinplace2.

10.ConnecttheantennacablestothewirelessWANcard.Ensurethatyouattachtheredcabletothemain

connectorandthebluecabletotheauxiliaryconnectoronthewirelessWANcard.

11.Reinstallthesmallbottomcover1.Thentightenthescrew2.

12.Reinstallthebatterypack.See“Replacingthebatterypack”onpage65.

13.Turnthecomputeroveragain.Connecttheacpoweradapterandallcablestothecomputer.

82UserGuide
