DSL-504 ADSL Router User’s Guide

RFC 1483 Bridged Ethernet Connections

To configure the Router for RFC 1483 connections it is necessary to provide a

static global IP address and subnet mask for the WAN interface. In addition, you

may need to define the DNS settings as well. Ask your network service provider

about DNS configuration settings. You can enter the DNS settings in the DHCP

Configuration menu. DHCP Configuration is discussed in Chapter 5, Web-based

Management.

After you have changed the Connection Type to RFC 1483, click on the Static IP

Address Configuration button to bring up the window below:

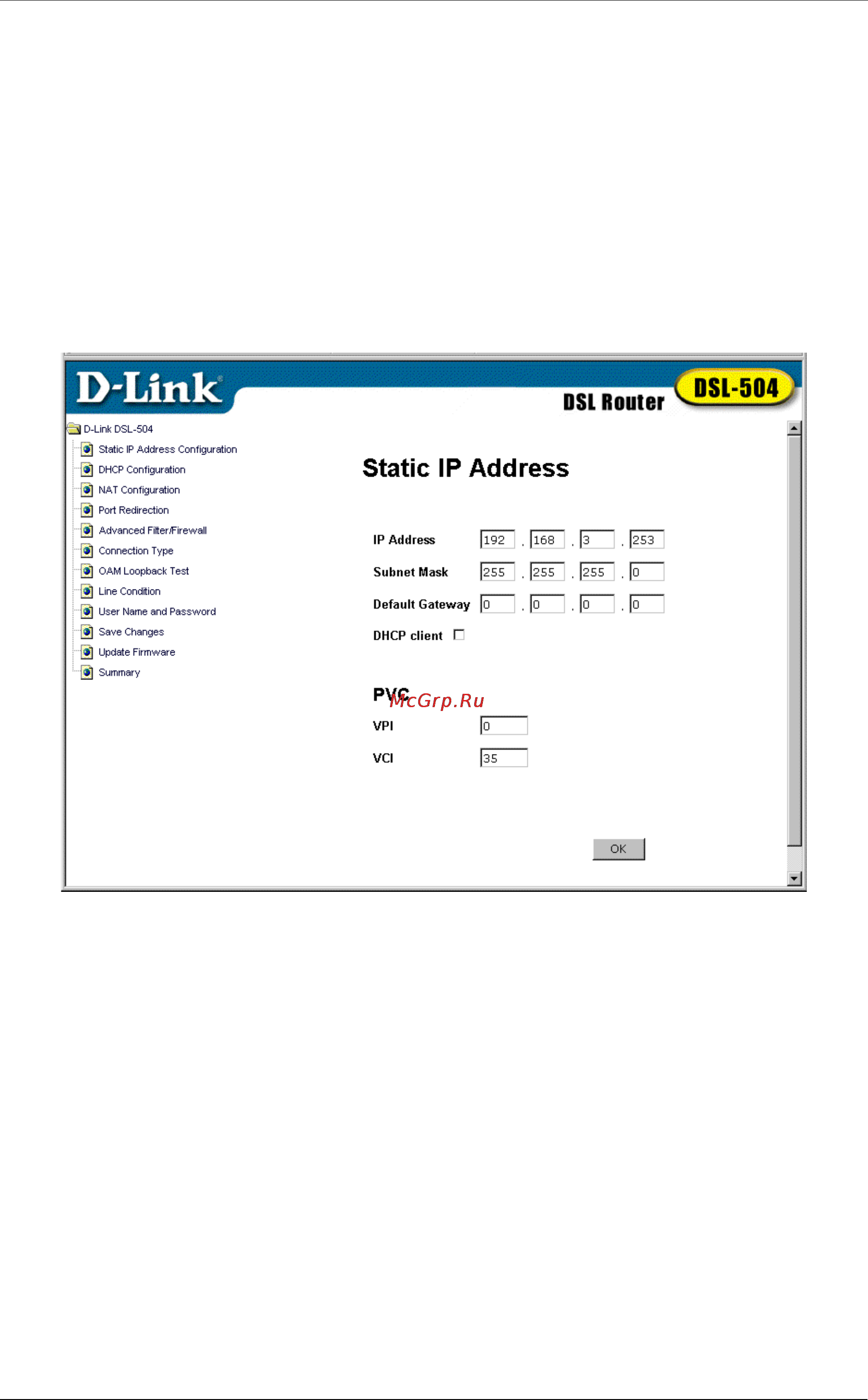

Static IP Address Configuration Window

In the Static IP Address Configuration window you will need to enter the global

IP Address and Subnet Mask used to identify the Router on the Internet. Some

static IP address connections will also require use of a default gateway. If you are

given a Default Gateway IP address by the network service provider enter that

here as well.

In the PVC field, enter the VPI and VCI values used for the ADSL connection.

Check all of the entries in this window to be certain that they are correct and

click the OK button. Once all the values have been set you must save the changes

and restart the Router.

After the Router has been configured and restarted you can access the Internet

by simply launching the web browser of the Manager PC. When your LAN is set

up, any workstation properly connected to the Router will have Internet access

using a web browser.
