DGE-530T Gigabit Ethernet Adapter Card
Connecting the Network Cable
1000BASE-T Gigabit Ethernet enables operation over the extensive installed base of legacy Category 5
cabling systems and, by default, the Category 5 cabling systems currently being installed.
It provides optimal full-duplex 1000Mb/s Ethernet service over Category 5e links as defined by
ANSI/TIA/EIA-568-A-5. Topology rules for 1000BASE-T are the same as those used for 100BASE-T.
Category 5 and 5e link lengths are limited to 100 meters.

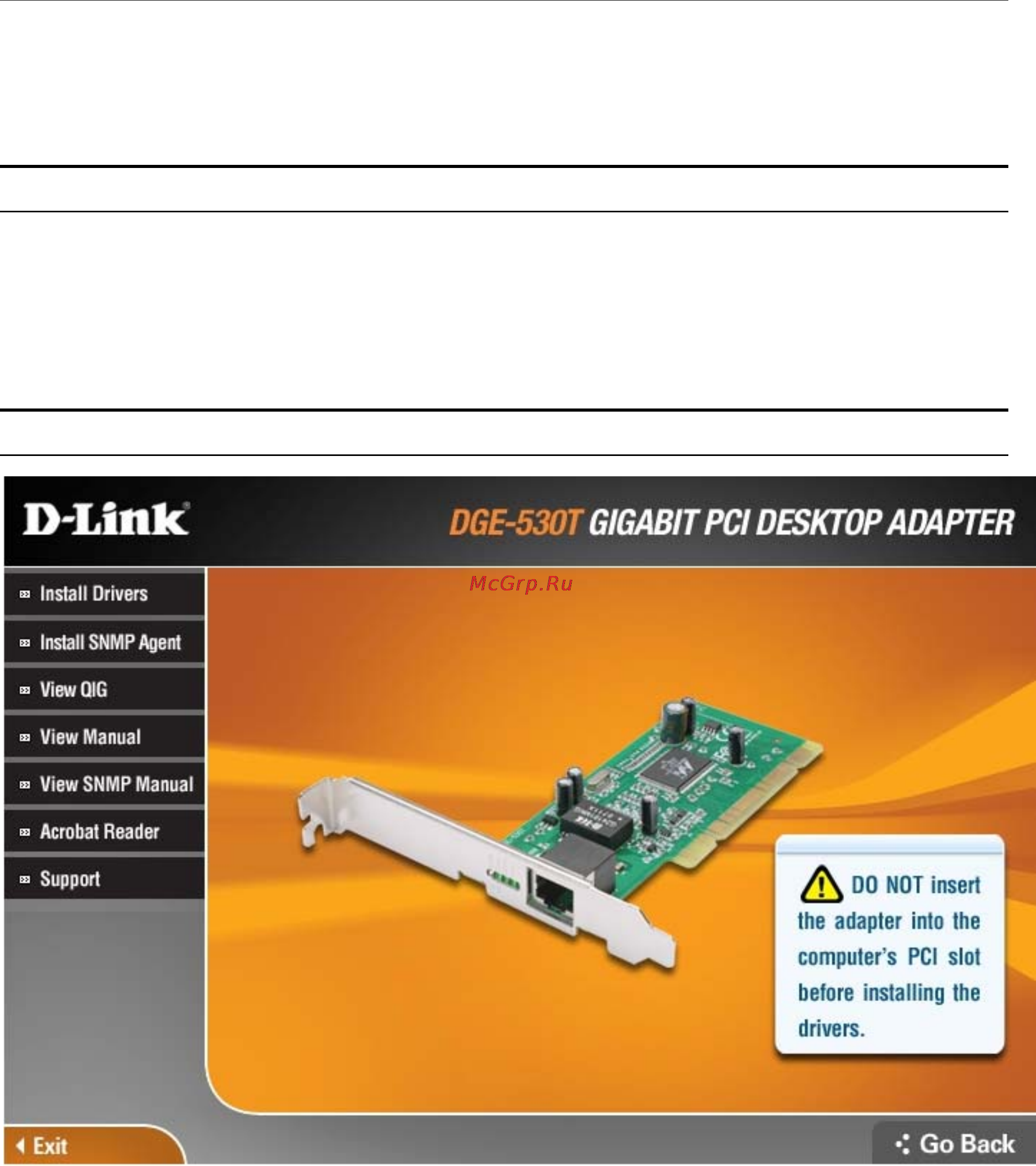

Software Installation
The CD included with your DGE-530T is designed to make installation of necessary software a painless
and trouble-free process. Simply click on the “Install Drivers” link and an Installation Wizard will
guide you through the process, no matter which operating system you’re running. Your DGE-530T will
be installed successfully in just a few moments, allowing you to enjoy the many advantages of joining
an Ethernet LAN.
The included Adobe Acrobat Reader, which is needed to read or print out your user manual, is also
useful for many other applications.
