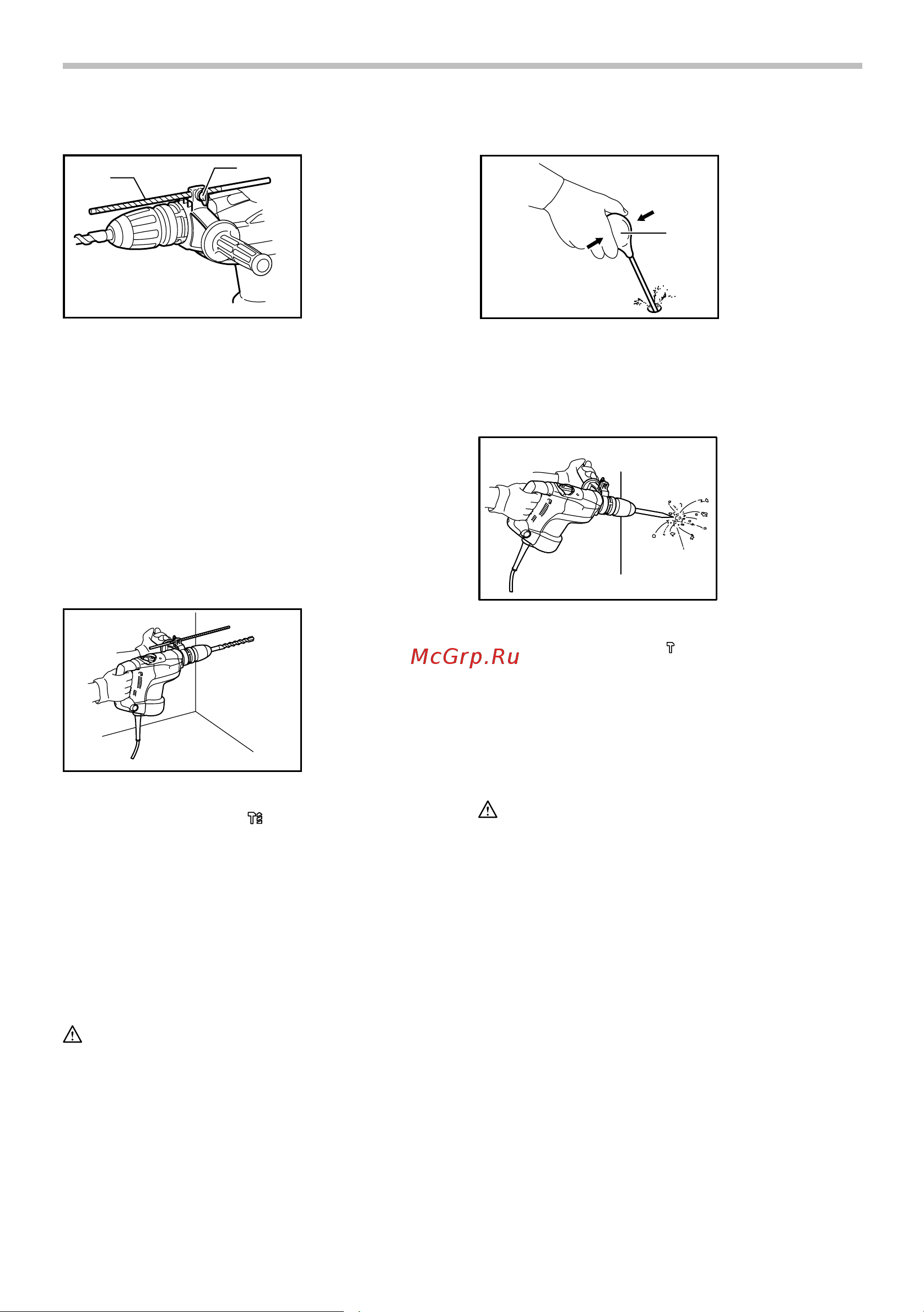

8
Depth gauge
1
2
006323
The depth gauge is convenient for drilling holes of
uniform depth. Loosen the clamp screw and adjust the
depth gauge to the desired depth. After adjusting,
tighten the clamp screw firmly.
NOTE:
• The depth gauge cannot be used at the position
where the depth gauge strikes against the gear
housing/motor housing.
OPERATION
Hammer drilling operation
006324
Set the change lever to the
symbol.
Position the bit at the desired location for the hole, then
pull the switch trigger. Do not force the tool. Light
pressure gives best results. Keep the tool in position and
prevent it from slipping away from the hole.
Do not apply more pressure when the hole becomes
clogged with chips or particles. Instead, run the tool at
an idle, then remove the bit partially from the hole. By
repeating this several times, the hole will be cleaned out
and normal drilling may be resumed.
CAUTION:
• When the bit begins to break through concrete or if
the bit strikes reinforcing rods embedded in
concrete, the tool may react dangerously. Maintain
good balance and safe footing while holding the
tool firmly with both hands to prevent dangerous
reaction.
Blow-out bulb (optional accessory)
1
002449
After drilling the hole, use the blow-out bulb to clean the
dust out of the hole.
Chipping/Scaling/Demolition
006325
Set the change lever to the
symbol.
Hold the tool firmly with both hands. Turn the tool on and
apply slight pressure on the tool so that the tool will not
bounce around, uncontrolled. Pressing very hard on the
tool will not increase the efficiency.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
• This servicing should be performed by Makita
Authorized Service Centers only.
This tool requires no hourly or daily lubrication because
it has a grease-packed lubrication system. It should be
relubricated after requlary. Send the complete tool to
Makita Authorized Service Center for this lubrication
service.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers,
always using Makita replacement parts.
1. Blow-out bulb
1. Depth gauge
2. Clamp screw
