Makita kp0800 [10/12] Accessories

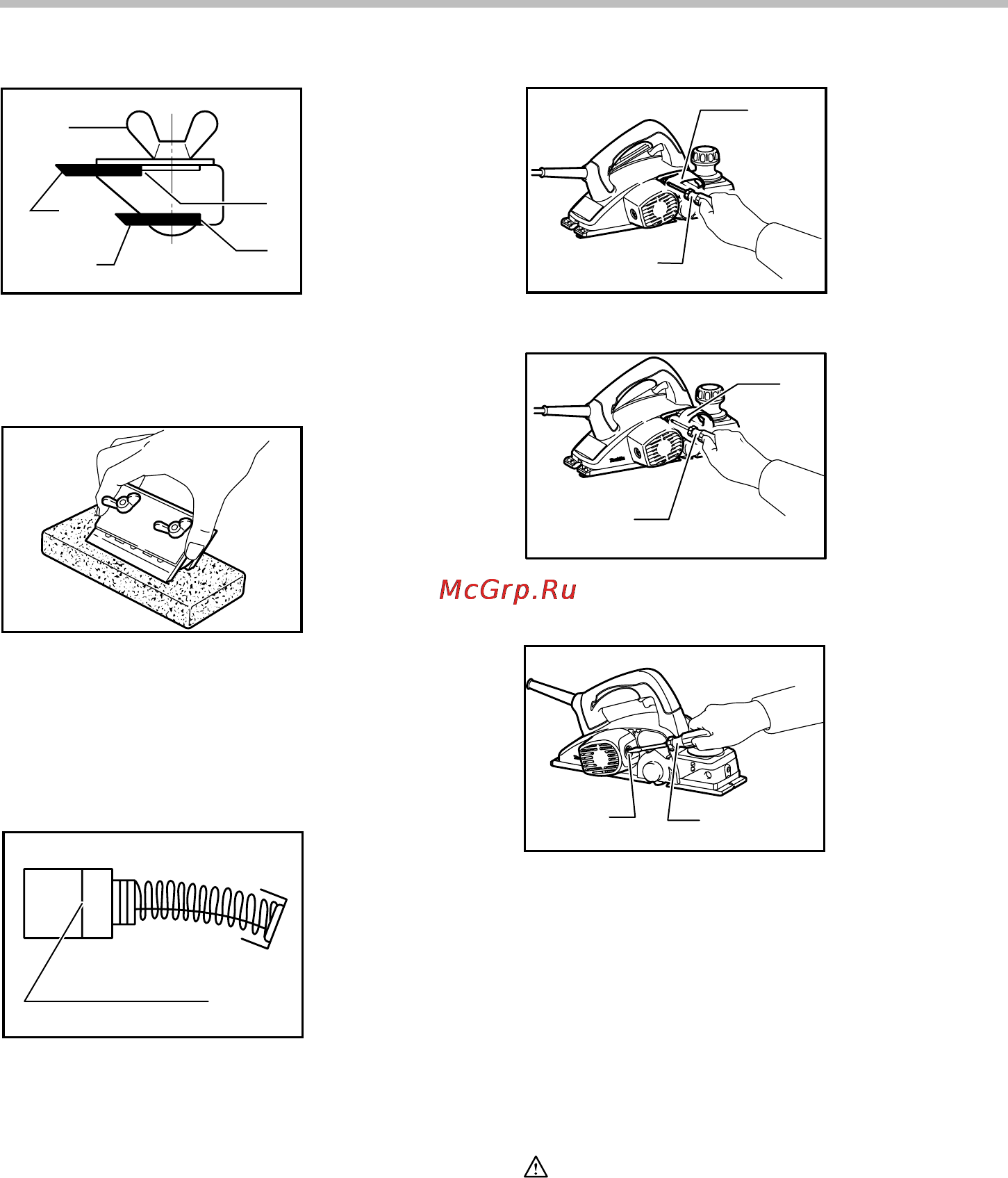

![Makita kp0800 [10/12] Accessories](/views2/1175214/page10/bga.png)
10
1
2
3
4
5
002589
First, loosen the two wing nuts on the holder and insert
the blades (A) and (B), so that they contact the sides (C)
and (D). Then tighten the wing nuts.
002590
Immerse the dressing stone in water for 2 or 3 minutes
before sharpening. Hold the holder so that the both
blades contact the dressing stone for simultaneous
sharpening at the same angle.
Replacing carbon brushes
1
001145
Remove and check the carbon brushes regularly.
Replace when they wear down to the limit mark. Keep
the carbon brushes clean and free to slip in the holders.
Both carbon brushes should be replaced at the same
time. Use only identical carbon brushes.
1
2
010335
1
2
010185
Use a screwdriver to remove the chip cover or nozzle.
1
2
010186
Use a screwdriver to remove the brush holder caps.
Take out the worn carbon brushes, insert the new ones
and secure the brush holder caps.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers,
always using Makita replacement parts.
ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• High-speed steel Planer blade
1. Brush holder
cap
2. Screwdriver
1. Nozzle
2. Screwdriver
1. Chip cover
2. Screwdriver
1. Limit mark
1. Wing nut
2. Blade (A)
3. Blade (B)
4. Side (D)
5. Side (C)
