Makita bo5030 [4/28] Assembly

8JD, ENGLAND

GEB021-1

SPECIFIC SAFETY RULES

DO NOT let comfort or familiarity with product

(gained from repeated use) replace strict adherence

to sander safety rules. If you use this tool unsafely

or incorrectly, you can suffer serious personal

injury.

1. Hold power tools by insulated gripping

surfaces when performing an operation where

the cutting tool may contact hidden wiring or

its own cord. Contact with a "live" wire will make

exposed metal parts of the tool "live" and shock

the operator.

2. Always use safety glasses or goggles.

Ordinary eye or sun glasses are NOT safety

glasses.

3. Hold the tool firmly.

4. Do not leave the tool running. Operate the tool

only when hand-held.

5. This tool has not been waterproofed, so do not

use water on the workpiece surface.

6. Ventilate your work area adequately when you

perform sanding operations.

7. Some material contains chemicals which may

be toxic. Take caution to prevent dust

inhalation and skin contact. Follow material

supplier safety data.

8. Use of this tool to sand some products, paints

and wood could expose user to dust

containing hazardous substances. Use

appropriate respiratory protection.

9. Be sure that there are no cracks or breakage

on the pad before use. Cracks or breakage

may cause a personal injury.

SAVE THESE INSTRUCTIONS.

WARNING:

MISUSE or failure to follow the safety rules stated in

this instruction manual may cause serious personal

injury.

FUNCTIONAL DESCRIPTION

CAUTION:

• Always be sure that the tool is switched off and

unplugged before adjusting or checking function on

the tool.

Switch action

Fig.1

CAUTION:

• Before plugging in the tool, always be sure that the

tool is switched off.

To start the tool, press the "I (ON)" side of the switch. To

stop, press the "O (OFF)" side of the switch.

Speed adjusting dial

For BO5031 only

Fig.2

The tool speed can be infinitely adjusted between 4,000

and 12,000 orbit per minute by turning the adjusting dial.

Higher speed is obtained when the dial is turned in the

direction of number 5; lower speed is obtained when it is

turned in the direction of number 1.

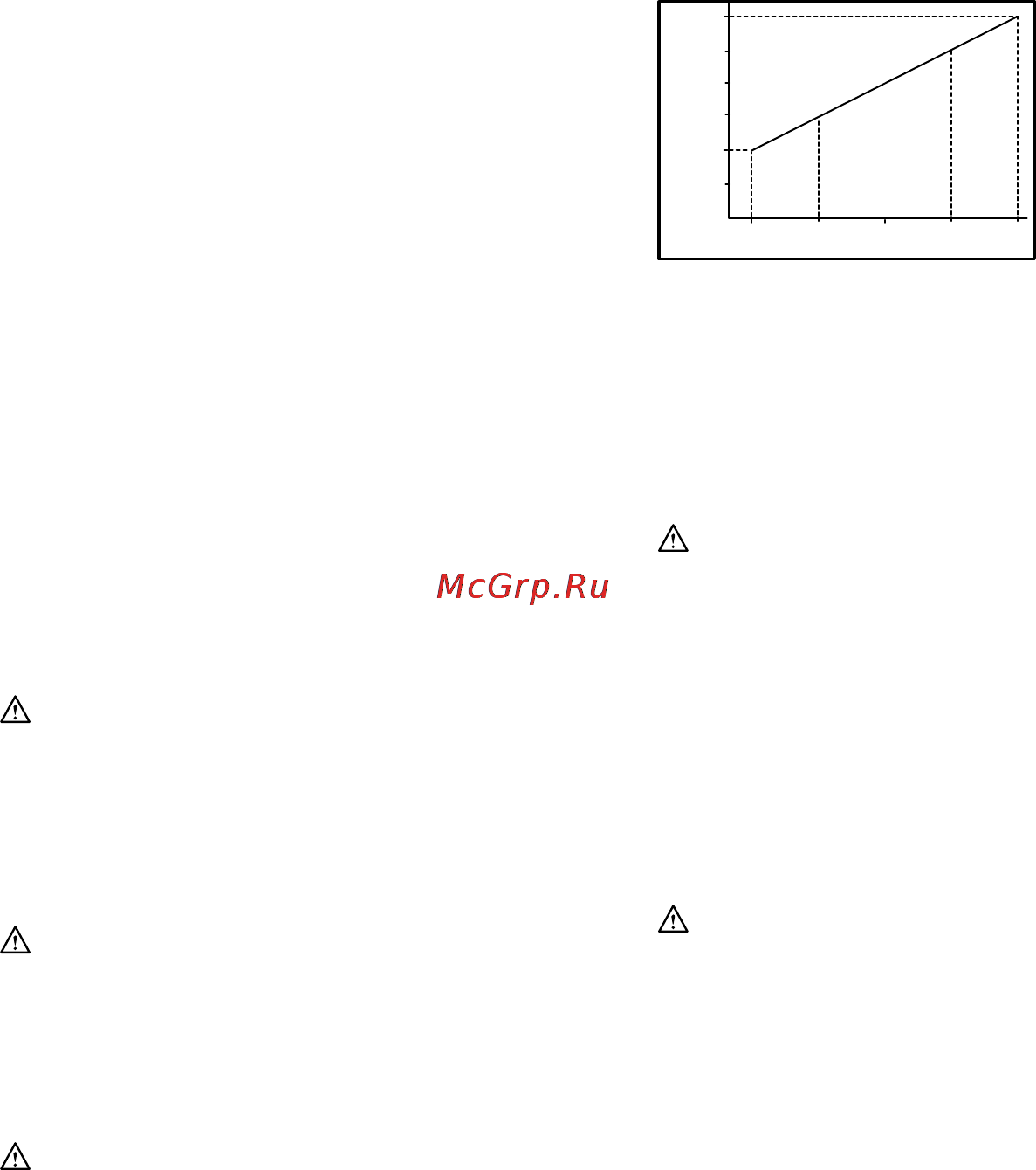

Refer to the figure for the relationship between the

number settings on the adjusting dial and the kind of

work.

A range: For polishing

B range: For finish sanding

C range: For regular sanding

Dial setting

Orbits per minute

4000

12000

003291

NOTE:

• The figure shows standard applications. They may

differ under certain conditions.

ASSEMBLY

CAUTION:

• Always be sure that the tool is switched off and

unplugged before carrying out any work on the

tool.

Installing or removing abrasive disc

Fig.3

To install the abrasive disc, first remove all dirt or foreign

matter from the pad. Then peel off the backing paper

from the abrasive disc and attach the abrasive disc to

the pad. Be careful to align the holes in the abrasive disc

with those in the pad.

CAUTION:

• If you peel off the abrasive disc from the pad, its

adhesion will become poor. Never attempt to stick

it onto the pad for further use.

Installing dust bag

Fig.4

Install the dust bag on the tool so that the Makita logo on

the dust bag will be upright (not upside down).

Emptying dust bag

Fig.5

When the dust bag is about half full, switch off and

Makita bo5030 [4/28] Assembly
