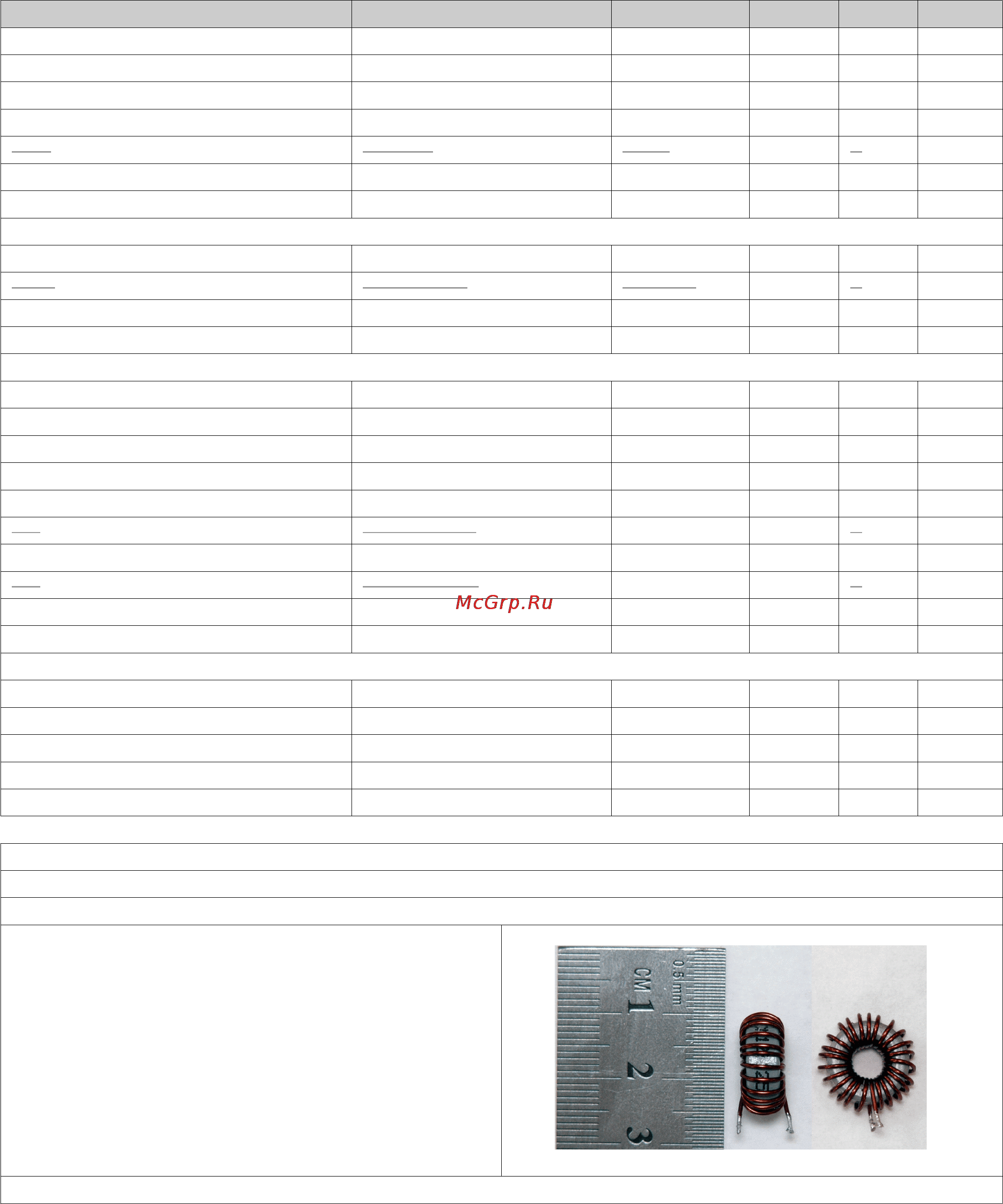

Electric circuit reference Value Package Analog Qnt. Note

R18 76,8 KΩ (1%) 0805 1

R19 100 Ω 0805 1

R20, R21, R23, R24, R26 4,7 KΩ 0805 5

R25 4,7 KΩ 0805 1 2

R22 1 KΩ 0805 1

Transistor

VT1 IRLML6402 SOT-23 1

VT2 FMMT617 SOT-23 1 2

VT3 BC847 SOT-23 1

Connectors

X1 B 9B-XH-A 1

X2 PLS-2 1

X3 B 2B-XH-A 1

X4 PLS-6 1

X5 BH-10 1

X6 B 3B-EH-A 1

X7 FB-12 1

X8 B 3B-XH-A 1

X9 B 3B-EH-A 1

Jumper

J1 short circuit 1 4

J2 short circuit 1 4

J3 short circuit 1 4

J4 short cirquit 1 4

N o t e s

1. With E3## top marking (where ## refers to the producers lot number)

2. Not used

3. Inductance: core – 13x7x5 mm MPP(100)

permalloy; wire – Ø 0,63 mm, lacquerred copper;

winding – 25 turns.

4. Shorted
