Introduction

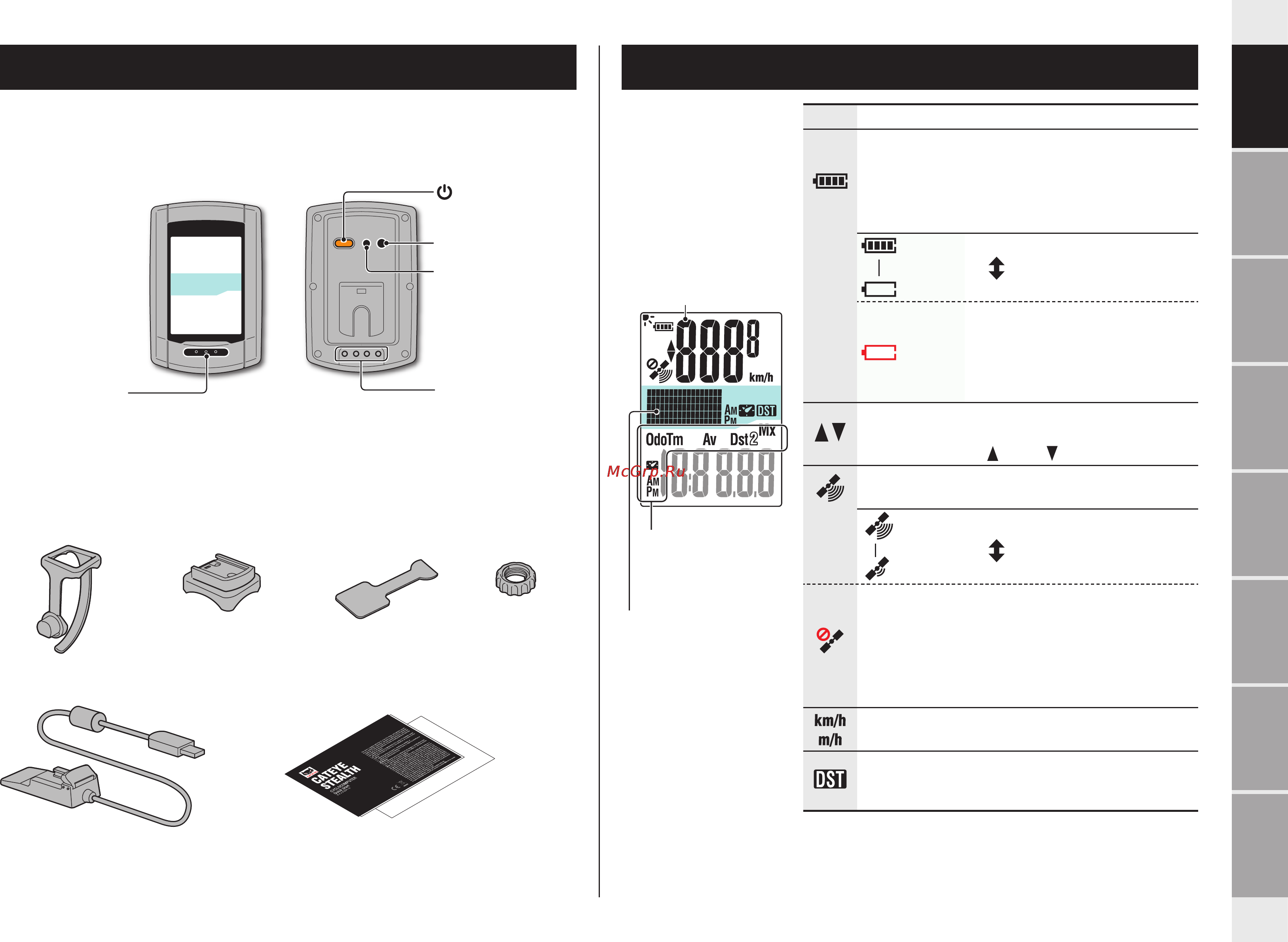

Description of computer and its parts
Screen display
Computer
Icon Description
Battery icon
Displays the remaining battery capacity in 5 levels.
* For information on how to charge the battery, see
“How to turn on/off the power / how to charge the
battery” (page 5).
(Light up)
Remaining battery capacity is large.
Remaining battery capacity is small.
(Flash)
Remaining battery capacity is nearly
zero. In such case, the computer
turns off the power automatically.
Charge the battery as soon as pos-
sible.
Pace arrow
Indicates if the current speed is faster or slower than
the average speed. ( Faster, Slower)
GPS signal receiving icon
Indicates the GPS signal receiving status.
(Light up)
GPS signal is strong.
GPS signal is weak.
GPS signal non-receiving icon
Flashes when GPS signal cannot be received. In such
status, measurement cannot be performed.
* When such status lasts for 10 minutes, the com-
puter turns off the power automatically.
(Auto power off)
Speed unit
Flashes while speed measurement is in progress.
Daylight saving time icon
* For information on how to set the daylight saving time,
see “Changing the computer configuration” (page 20).
Accessories
MODE button
Front Back
MENU button
Power button
AC button
Contact
Bracket band
Bracket rubber pad
Dial
Bracket
Current speed
0.0 (3.0) - 105.9 km/h
[0.0 (2.0) - 65.9 m/h]
Selected data icon
Indicates the data displayed
on the lower display.
Dot display
Displays mainly the clock.
Cradle Quick start
Yellow card
