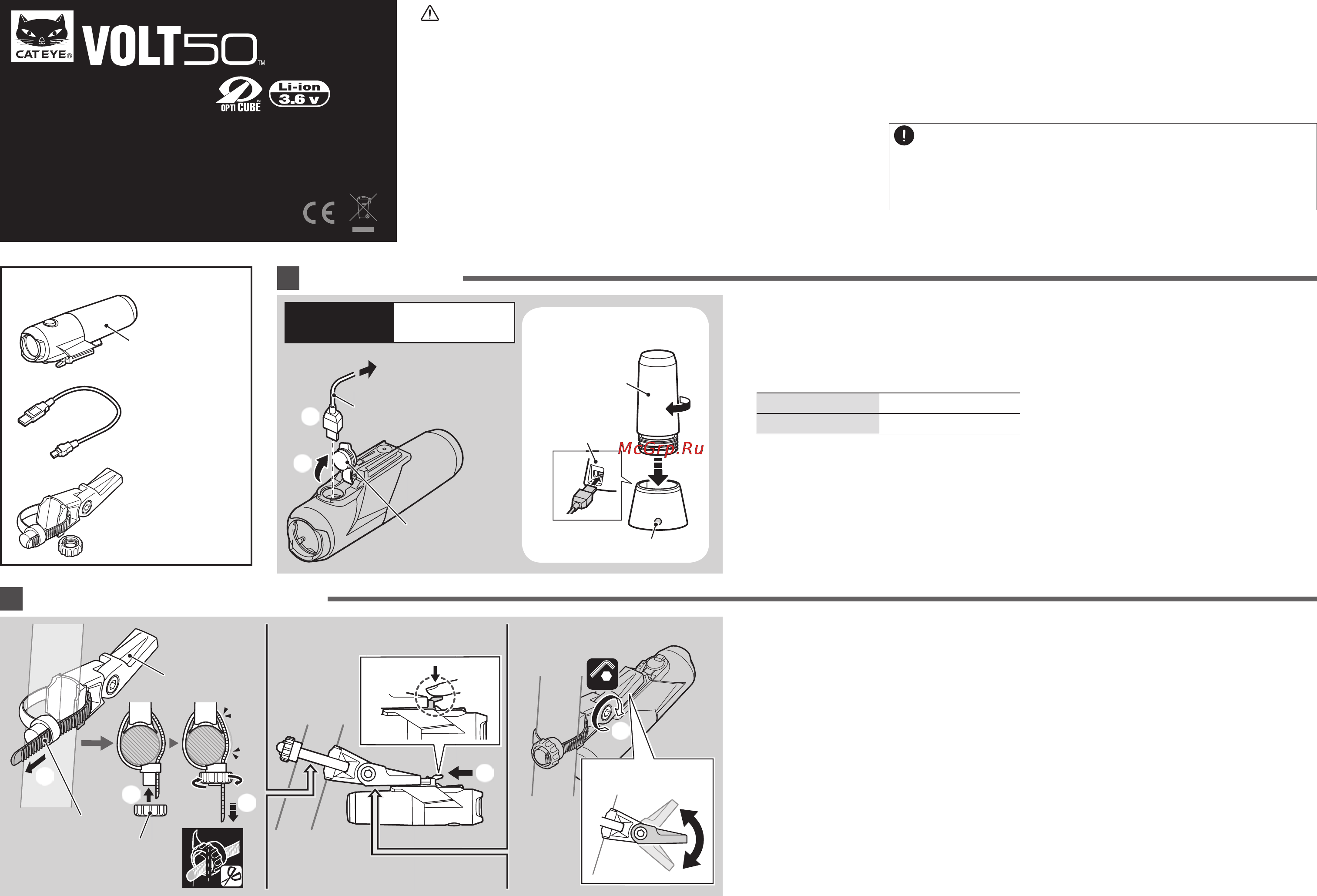

RECHARGEABLE HEADLIGHT
1. Connect the light unit to your PC or a
commercial USB battery charger using
the USB cable. (Fig 1
1
–
2
)
The switch or the indicator on the
cradle lights up, and charging starts.
Indicator light: On Charging
Indicator light: Off
Charging is completed
* When your PC is in sleep state, the
unit cannot be charged.
* We recommend using 500+mA
(USB2.0) USB battery charger.
2. After charging is completed, remove
the USB cable, and install the charge
jack cover.
* Charging and lighting times are ap-
proximate values, and will vary by
environmental and user conditions.
* The cartridge battery can be fast-
charged by using the optional charging
cradle (about 3 hours of charging time).
Use a 1A or higher USB charging
adapter when charging by the cradle.
Before using the light, please read this manual and
the attached “Lithium-ion Batteries” thoroughly, and
keep them for future reference.
HOW TO CHARGE
1
CAUTION!
• Before your trip, please make sure the light is fi rmly mount-
ed to the bracket, it lights up, and the light is not blocked by
baggage, etc.
• Do not press the switch of the light while riding.
• Do not place it within children’s reach.
• In preparation for unexpected battery shutoff, we recom-
mend you carry a spare cartridge battery and light.
• This product is water-resistant under normal daily use and
can be used in the rain. However, do not intentionally sub-
merge it in water.
• If the light unit or parts become dirty with mud, etc., clean
with a soft cloth which is moistened with mild soap. Never
apply paint thinner, benzine or alcohol; damage will result.
• Dispose of used cartridge batteries appropriately according
to local regulations.
Before Initial Use
This unit is shipped with a small charge to check the light.
Be sure to charge it before use, according to the instructions
“HOW TO CHARGE”.
1. Mount the bracket on the seat post.
(Fig 2
1
–
3
)
2. Insert the light unit into the bracket
until it clicks, and adjust the beam
angle. (
4
)
To remove the light from the bracket,
pull it out backward while pressing
down on the release button. (
5
)
3. Loosen the screw (
6
), adjust the
bracket to an appropriate angle, and
tighten the screw securely.
CAUTION!:
• Be sure to tighten the dial by hand.
When you tighten it too hard with
a tool, the screw thread may be
stripped.
• Check the dial and screw (
6
) on the
bracket periodically, and use them
without any loosening.
• Round off the cut edge of the bracket
strap to prevent injury.
HOW TO MOUNT ON A SEAT POST
2
Standard
charging time
Approx.
6 h
(USB 2.0)
2
1
Cradle
USB cable
Charge jack
cover
To PC or USB
battery charger
Charging on the cradle
Cartridge battery
Indicator
Design Pat. Pending
Copyright© 2013 CATEYE Co., Ltd.
EL46RCRSP13 130905 1
Manual
ENG
Dial
5 mm
Beam angle adjustment
Bracket
Strap
4
5
3
1
2
6
Tightening torque
2.0 N
.
m
Cartridge battery
USB cable
Light unit
FlexTight™ bracket
(SP-13)
Release
button
