Motorola mbp26 [8/27] Getting started

8 Getting Started

2. Getting Started

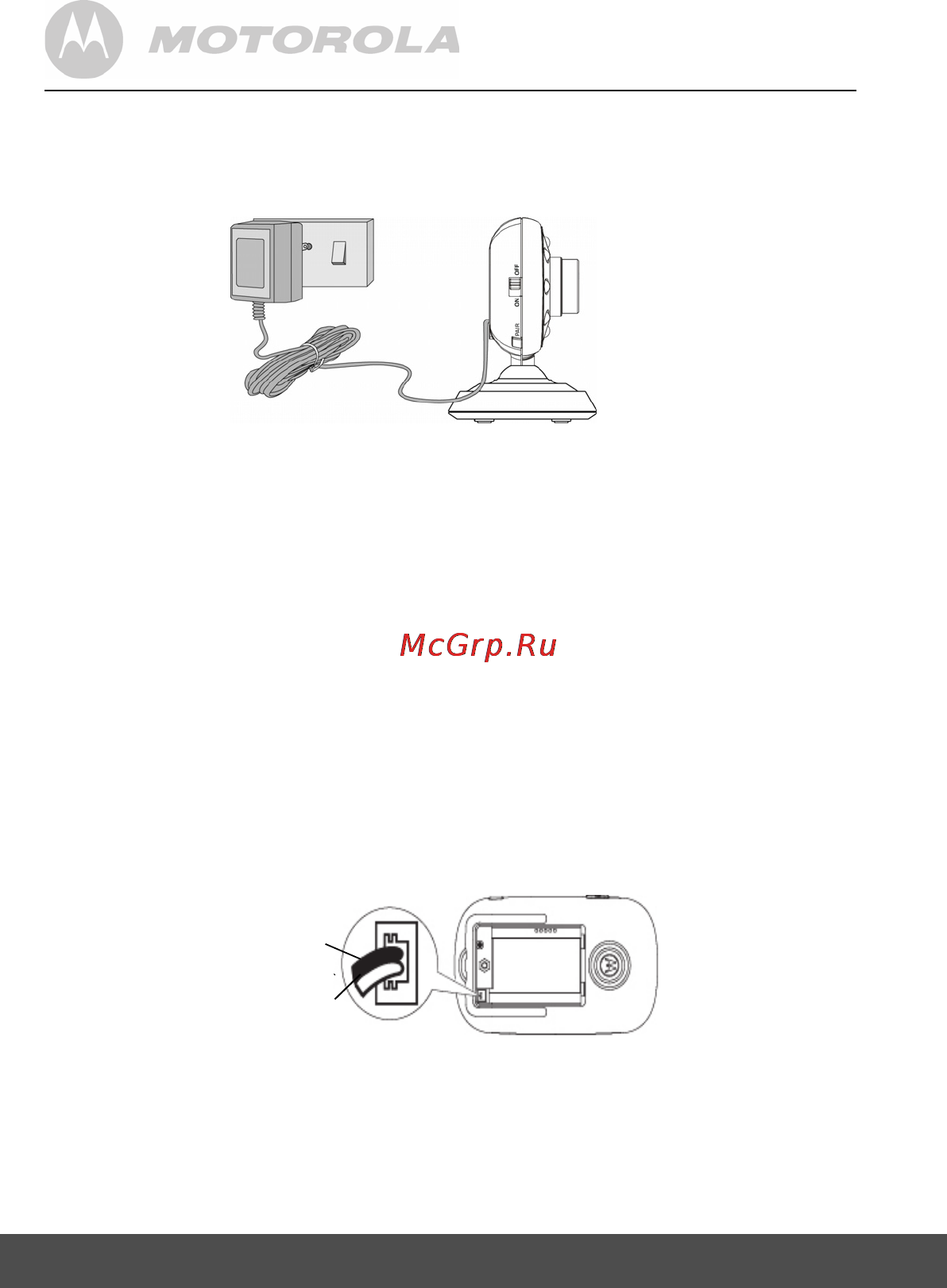

2.1 Baby Unit Power Supply

1. Connect the small plug of the power adapter to the baby unit (camera)

NOTE

Only use the enclosed power adapter (6V DC / 500mA) with the slightly

2. Slide the ON/OFF switch to the ON position. The power LED will

light up in orange.

3. Slide the ON/OFF switch to the OFF position to turn the Baby Unit off.

2.2 Parent Unit Battery Installation

Black

Red

1. Insert the plug of the rechargeable battery pack into the small socket

inside the battery compartment as shown above and fit the battery

pack into the compartment.

and the other end to the electrical outlet.

larger DC plug.

The supplied rechargeable battery pack should be fitted so the parent

unit can be moved without losing the link with the camera. Charge the

battery in parent unit before first time use or when the parent unit

indicates the battery is low.
