TL-WDN4800 450Mbps Wireless N Dual Band PCI Express Adapter
16

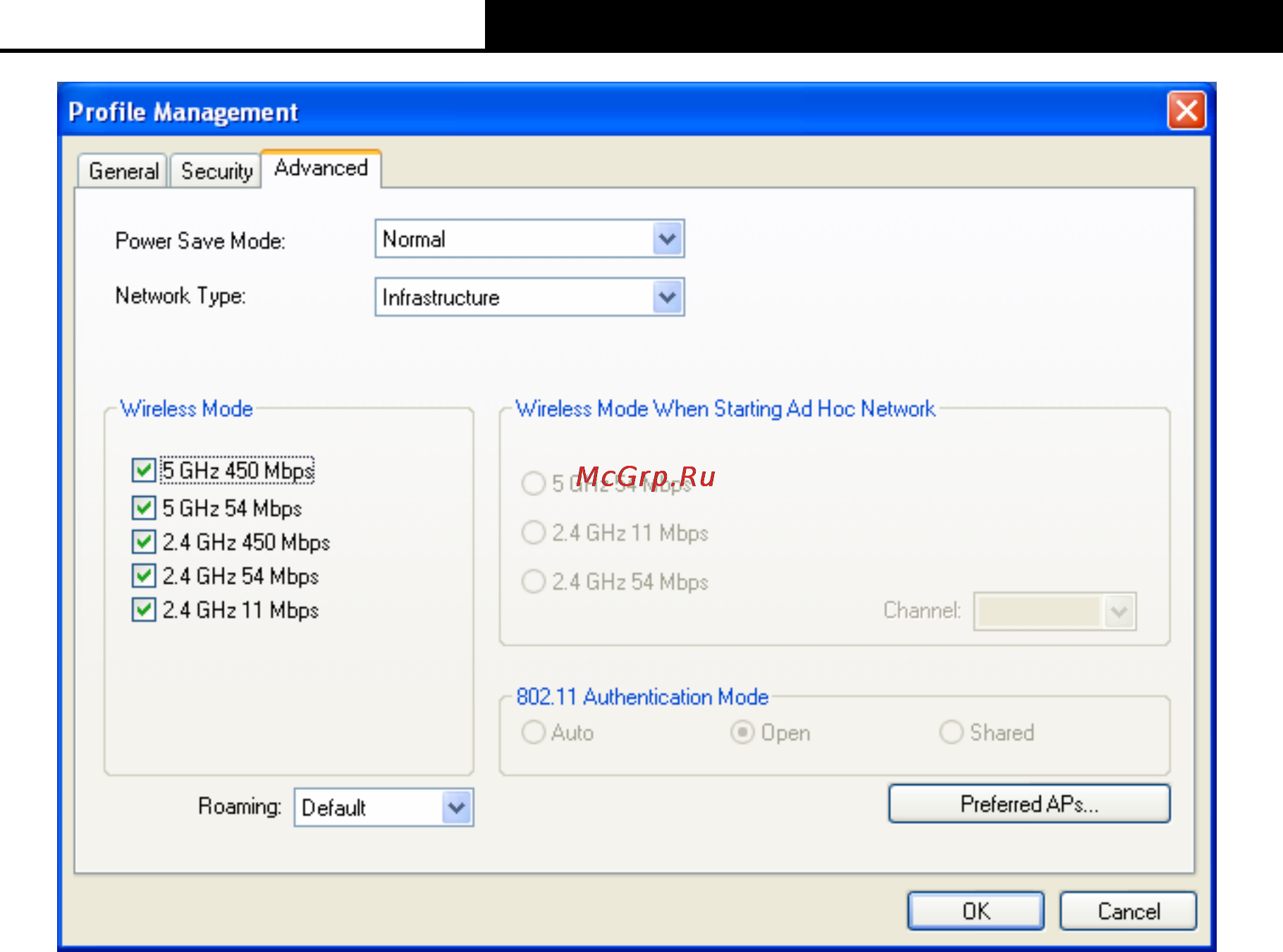

Figure 3-6
¾ Power Save Mode - Please select the power save mode in the drop-down list.
• Maximum -
Selects maximum mode to let the access point buffer incoming messages
for the Adapter. The Adapter will detect the access point if any messages are waiting
periodically.
• Normal - Normal mode uses maximum when retrieving a large number of packets, then
switches back to power save mode after retrieving the packets.
• Off - Turns power saving off, thus powering up the Wireless PCI Express Adapter
continuously for a short message response time.
¾ Network Type: There are basically two modes of networking:
• Infrastructure - All wireless clients will connect to an access point or wireless router.
• Ad-Hoc - Directly connecting to another computer, for peer-to-peer communication,
using wireless network adapters on each computer, such as two or more TL-WDN4800
wireless adapters.
)
Note:
1) An Infrastructure network contains an Access Point or wireless router. All the wireless
devices or clients will connect to the wireless router or access point.
2) An Ad-Hoc network contains only clients, such as laptops with wireless desktop adapters. All
the adapters must be in Ad-Hoc mode to communicate.
¾ Wireless Mode: Specifies 2.4 GHz 450 Mbps, 2.4 GHz 54 Mbps or 2.4 GHz 11 Mbps
