TL-WDN4800 450Mbps Wireless N Dual Band PCI Express Adapter

Following are the detailed configuration procedure of each way.

4.2.1 Enter a PIN into your AP device

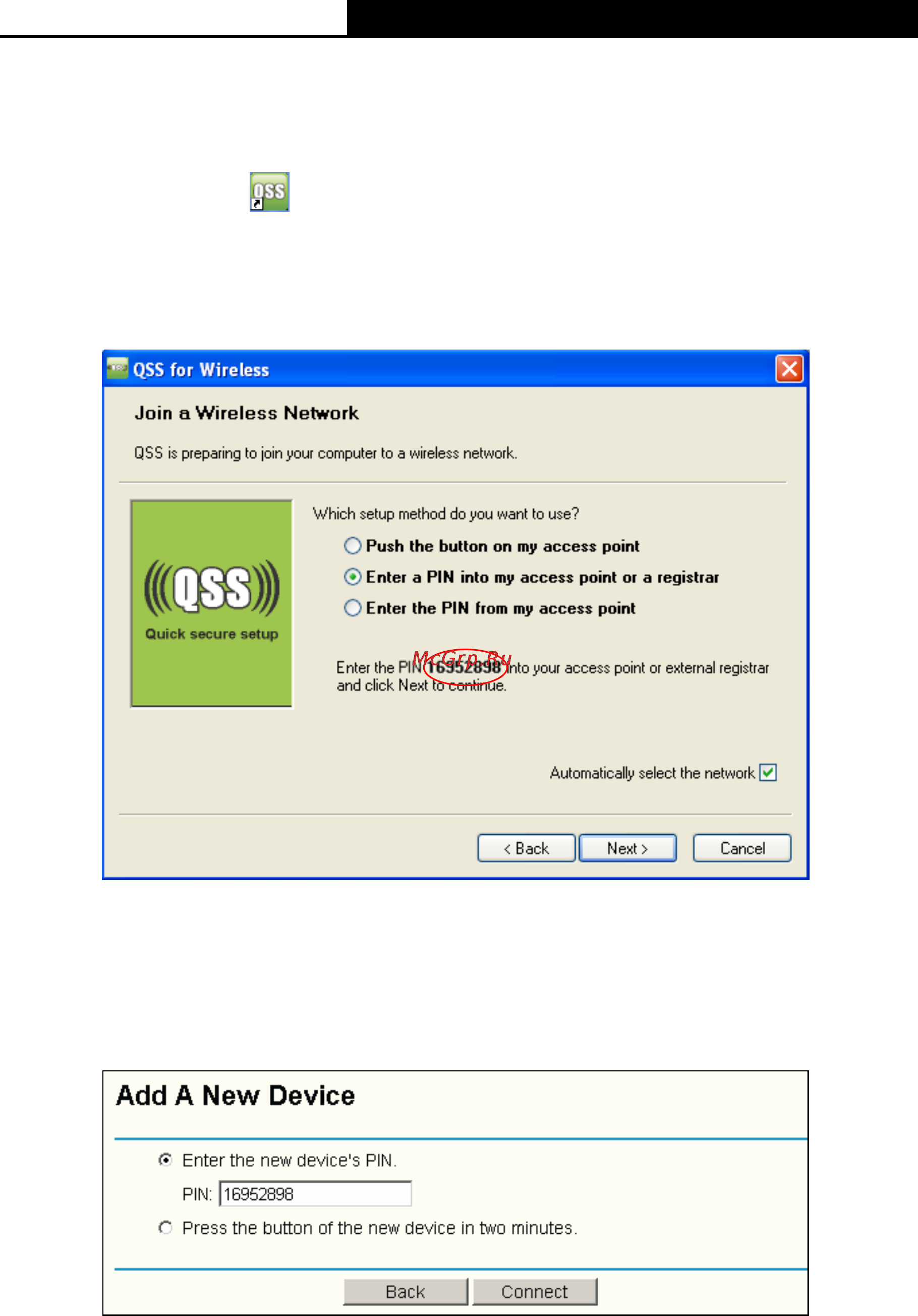

1. Double click the icon on the desktop to open the QSS Utility and then you can see the

welcome screen shown as Figure 4-6 Click Next to continue. Figure 4-9 will appear. Select

the second option and you will see the PIN value of the adapter which is randomly generated.

Click Next.

Figure 4-9

2. Open the Router’s Web-based Utility and click QSS link on the left of the main menu. Then

Figure 4-4 will appear. Click Add device, then you can see

X Figure 4-9 Select Enter the new

device’s PIN and enter the PIN value of the adapter shown in Figure 4-9, click Connect.

Figure 4-10

3. When Figure 4-8 appears, the QSS configuration is complete.
