How to adjust illumination intensity

Turn the rheostat intensity dial to the desired color (red or green) and intensity (6 steps: OFF to 5) (Fig. 3-3).

*The Nikon PROSTAFF 5 Riflescope comes with a 3V lithium battery (CR2032).

*Replace the battery if the Nikon PROSTAFF 5 Riflescope is ever submerged in water or if water enters the battery chamber.

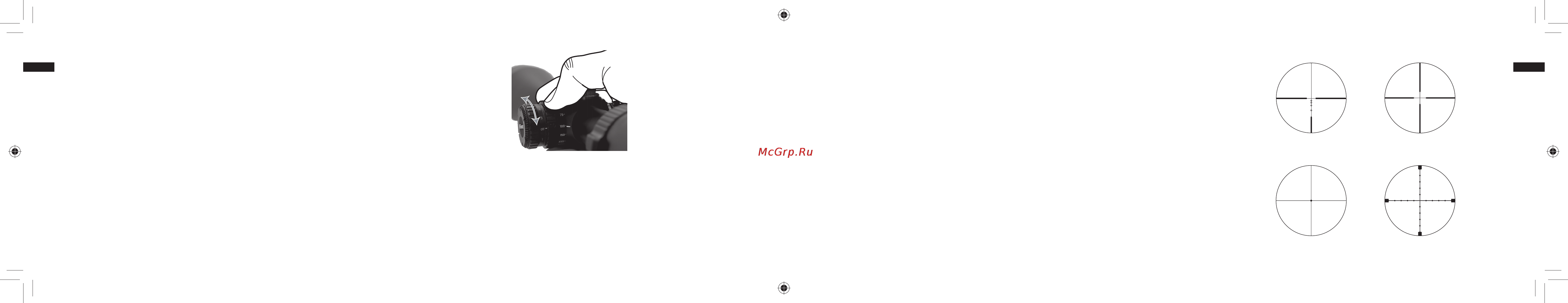

Fig. 3-3

BDC reticle

Duplex reticle

Fine Crosshair with Dot reticle Mildot reticle (MIL standard)

Fig. 3-4 Fig. 3-5

Fig. 3-6 Fig. 3-7

(2) Focusing

1 Look through the eyepiece with your eye positioned about 10 cm (4 in) away from the eyepiece to see the BDC reticle (Fig. 3-4),

the Duplex reticle (Fig. 3-5), the Fine Crosshair w/Dot reticle (Fig. 3-6), or the Mildot reticle (MILstandard) (Fig. 3-7). Be sure

your eye is positioned with proper alignment and with proper eye relief, otherwise the view will “black out.”

2 Point the objective end of the scope at the sky (NOT point it at the sun) or at a plain unpatterned wall.

3 Turn the eyepiece adjustment counter-clockwise and then turn it clockwise until the reticle appears sharp.

(3) Magnification

• The PROSTAFF 5 Riflescope has variable magnification. For details, see “2. Specifications”.

To change powers, rotate the power selector ring until the desired magnification appears adjacent to the power index dot.

PROSTAFF 5.indb 12-13PROSTAFF 5.indb 12-13 2/8/2013 5:28:08 PM2/8/2013 5:28:08 PM
