Using the Configuration Utility

Launch your web browser and type the device IP address (http:// 192.168.0.1)

in the browser’s address box. This IP address is the default value of your

gateway. Press Enter.

Note: Please make sure that the computer you will use to connect to and

configure the DFL-100 is assigned an IP address that is in the same range as

the DFL-100. The IP address of the DFL-100 is 192.168.0.1. All computers

on your network must be within that range, for instance, the computer IP

address could be 192.168.0.x, with a subnet mask of 255.255.255.0. All

computers on the LAN side network must have the same subnet mask.

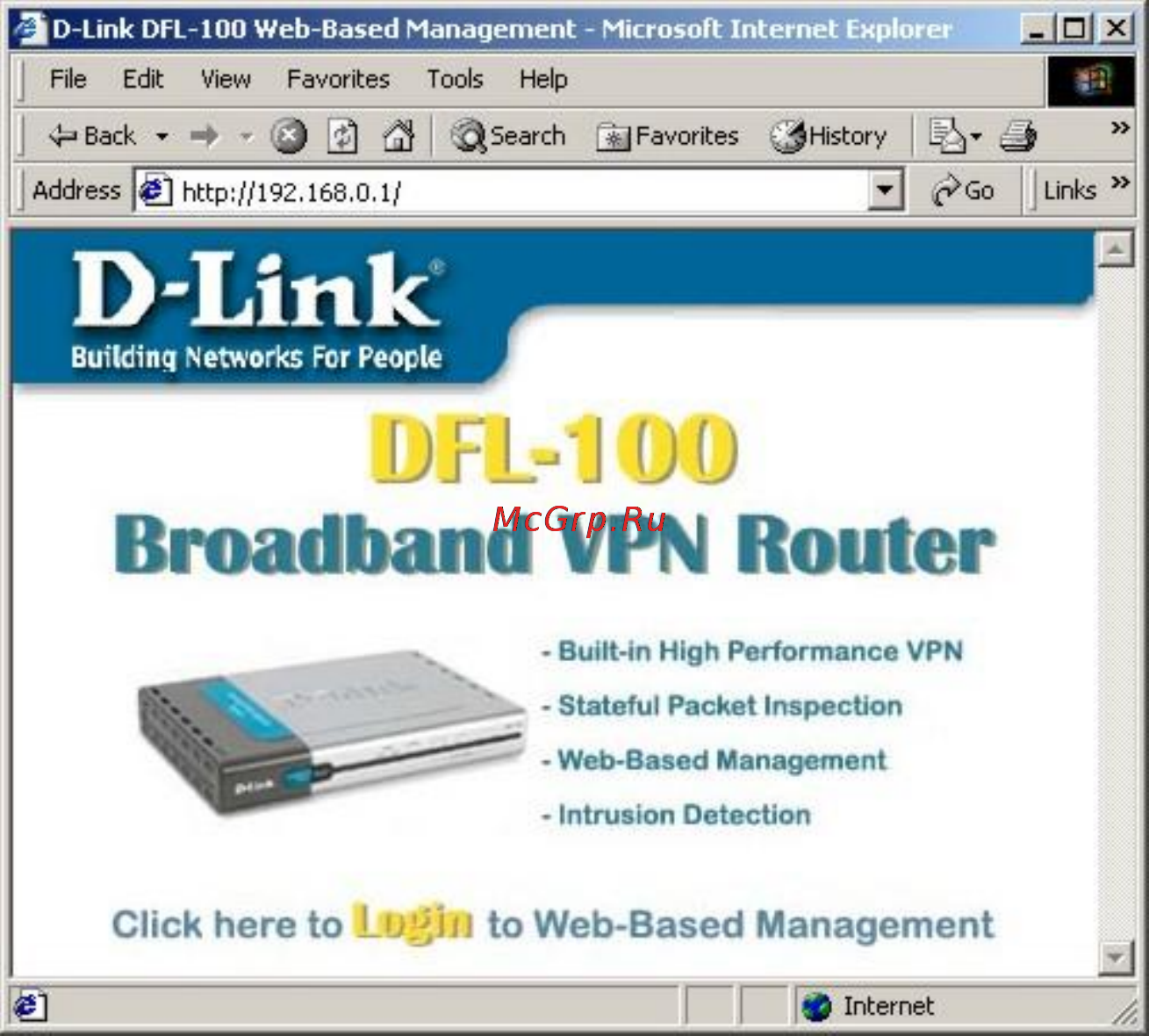

The logon menu appears. Click on the screen to open the Enter Network

Password dialog box.
