124

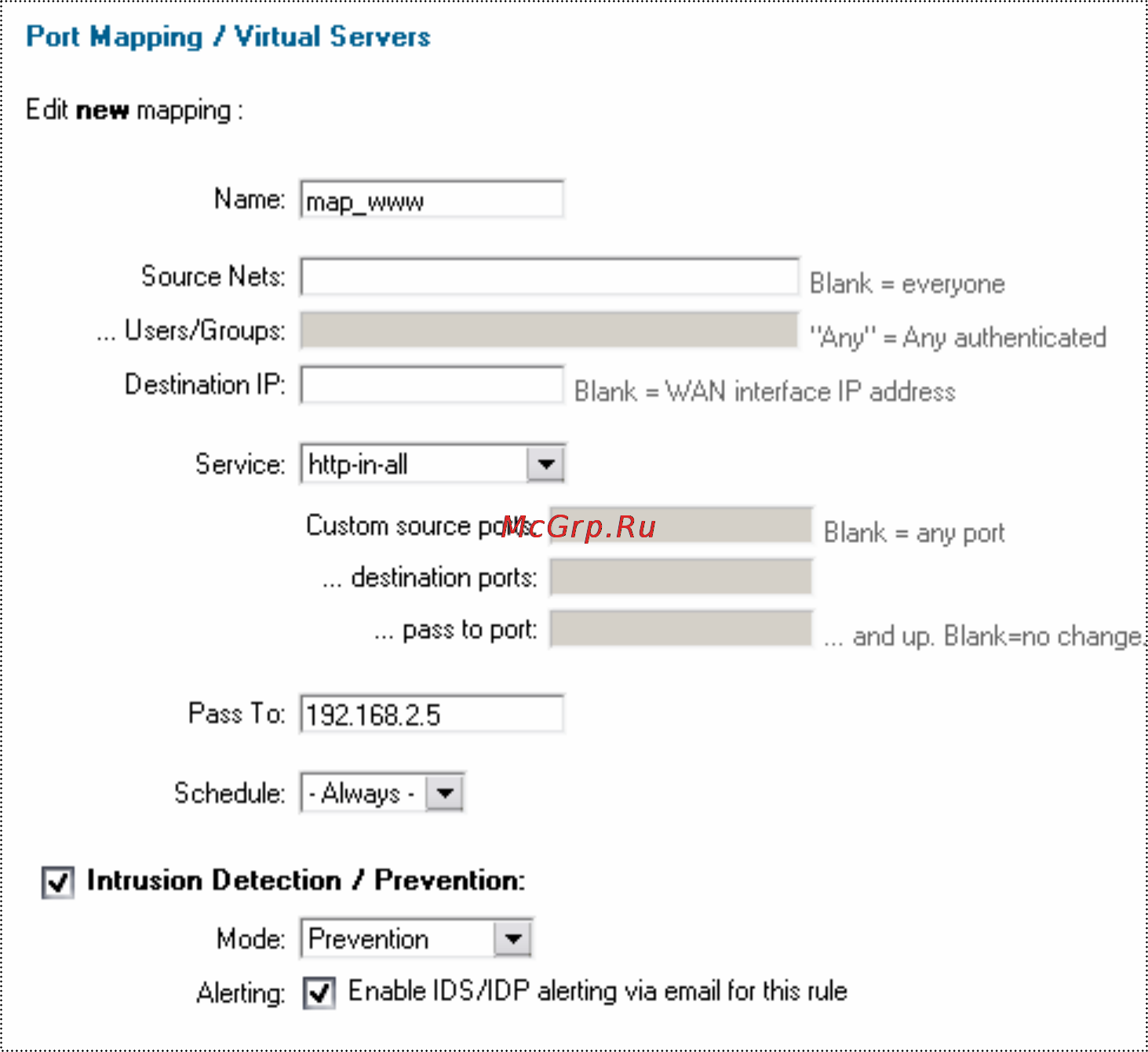

2. Set up the newly created port mapping:
Name the rule map_www
Select service http-in-all
Enter pass to IP: 192.168.2.5 (the IP of the web server)
Check the Intrusion detection / prevention option
Select mode Prevention
Enable email alerting by checking the Alerting box
Click Apply
