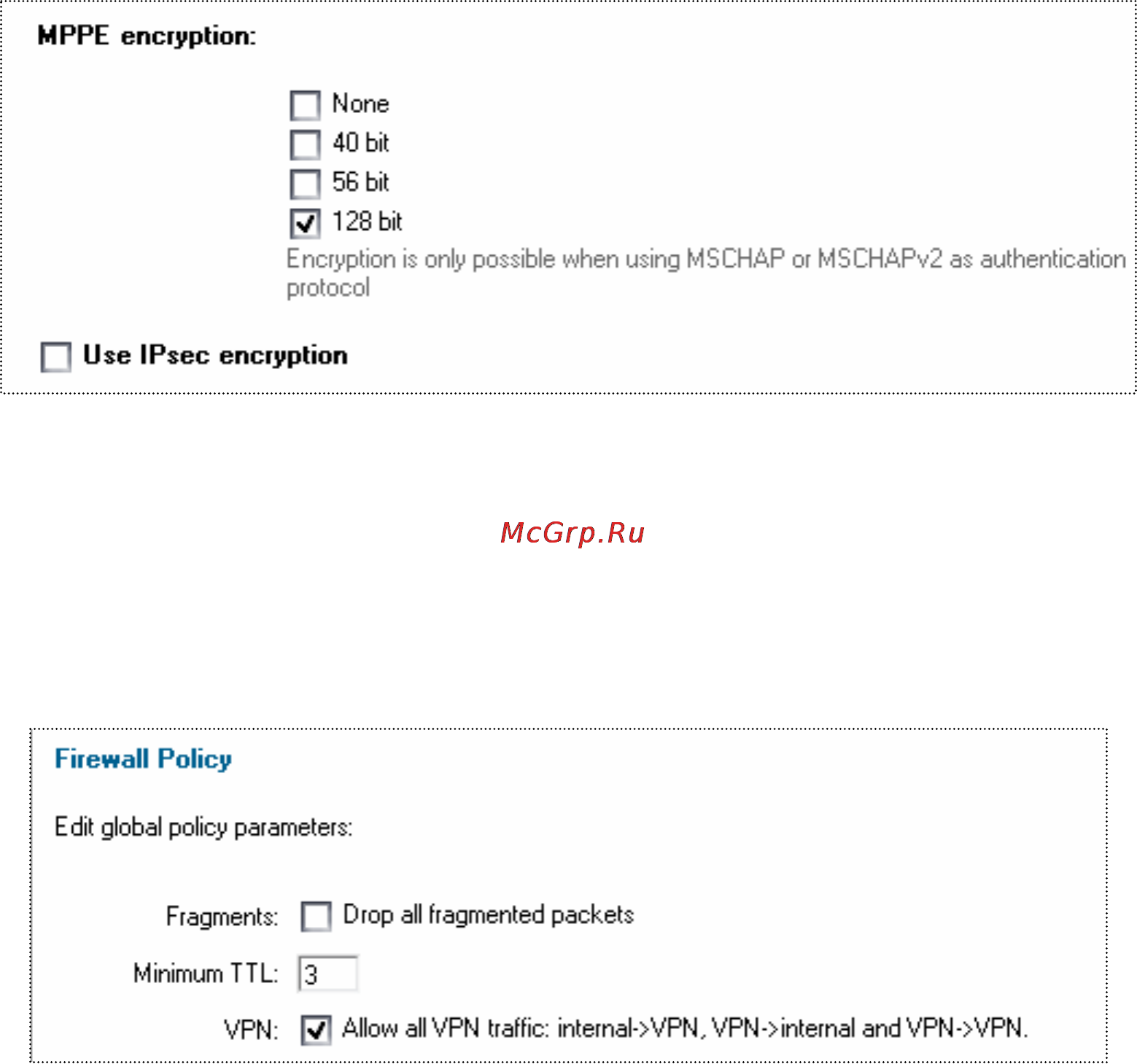

Under MPPE encryption 128 bit should be the only checked option.
Leave Use IPsec encryption unchecked
Click Apply
3. Setup policies for the new tunnel, Firewall->Policy:
Click Global policy parameters
Enable Allow all VPN traffic: internal->VPN, VPN->internal and VPN->VPN
Click Apply
4. Click Activate and wait for the firewall to restart.
