连接接口

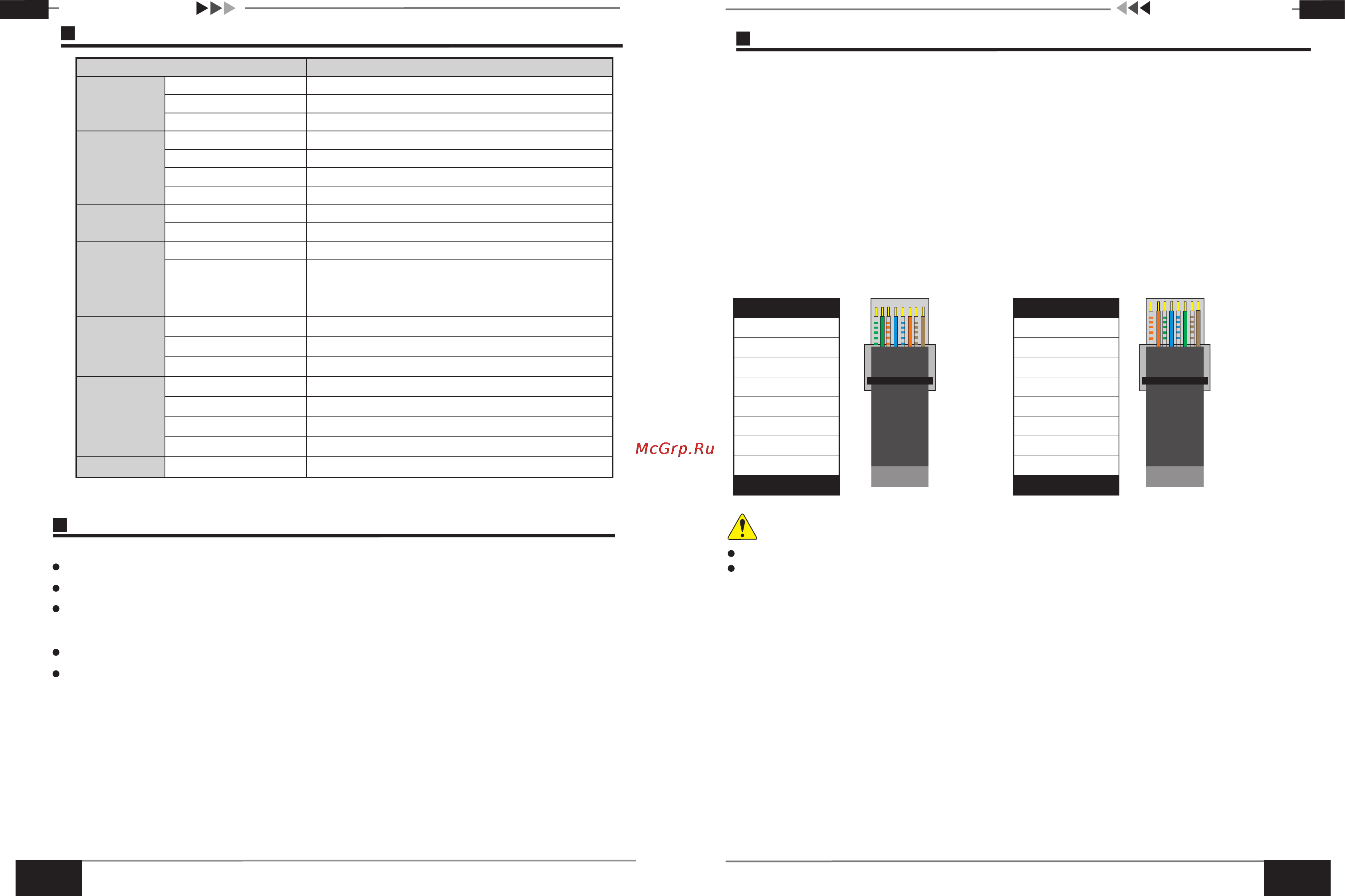

Specification
连接接口
Item
Description
Power
Power
Electric Supply
Power Voltage
AC100V~AC240V
Output Power Rate
≤30W
Network Port
Communication Port
1×RJ45 Input
TransmissionRate
10/100Mbps, 10/100/1000Mbps
Transmission Medium
Cat5/5e/6 Cable
Distance
100m (Max)
Status
Power LED
1 (Green)
PoE LED
1 (Yellow)
Protection
Surge Protection
1KV Per: IEC61000-4-5
ESD
1a Contact Discharge Level 3
1b
Per: IEC61000-4-2
Air Discharge Level 3
Environment
Working Temperature
0 ~55℃℃
Storage Temperature
-40 ~85℃℃
Humidity
0~90%
Structure
Size
120mm×62mm×39mm
Material
ABS Material
Color
Black
Weight
200g
Stability
MTBF
> 0000h3
连接接口
Problem Examination
Please remove the problem according to the following steps
If the device installed according to the user manual;
If the RJ45 reach the standard of EIA/TIA568A or 568B;
Please make sure the POE port power rate output does not surpass 30W. Also please make
sure the input network device power rate does not surpass 30W;
Please use a normal device to replace the failure one;
If the problem still exist, please contact the local dealer.
Specification change will not be noticed
3
4
Instruments to be used: wire crimper, network tester. Wire sequence of RJ45 plug should
conform with EIA/TIA568A or 568B.
1) Please remove 2cm long the insulating layer, and bar the 4 pairs UTP cable;
2) Separate the 4 pairs UTP cable and straighten them;
3) Line up the 8 pieces of cables per EIA/TIA 568A or 568B;
4) Cut off the cables to leave 1.5cm bare wire;
5) Plug 8 cables into RJ45 plug, make sure each cable is in each pin;
6) Use the wire crimper to crimp it;
7) Repeat above 5 steps to make the another end;
8) Using network tester to test the cable whether is working.
Plug Producing Method
pin color
white/green
green
blue
white/orange
white/blue
white/brown
orange
brown
1
2
3
4
5
6
7
8
pin color
1
2
3
4
5
6
7
8
white/green
green
blue
white/orange
white/blue
white/brown
orange
brown
EIA/TIA 568A
EIA/TIA 568B
When choose RJ-45 make sure if one end is EIA/TIA568A,the other end should also be EIA/TIA568A.
When choose RJ-45 make sure if one end is EIA/TIA568B,the other end should also be EIA/TIA568B.
Notice
POE Injector
POE Injector
