Korg pitchblack [8/24] Installing the battery
![Korg PitchBlack+ [8/24] Installing the battery](/views2/1018820/page8/bg8.png)
8
DC 9V IN
DC 9V OUT
INPUT AINPUT B
BYPASS

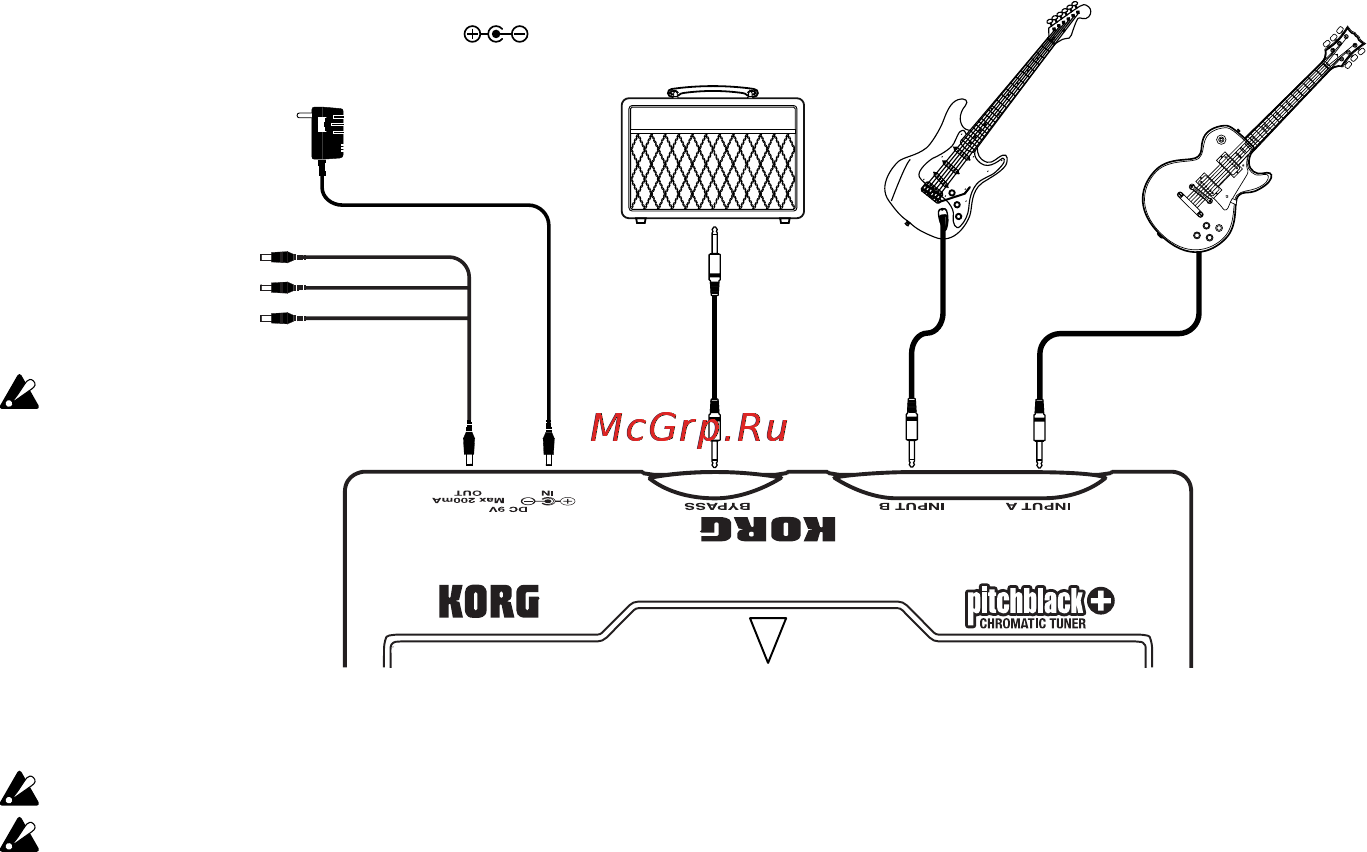

Подключения
7
Installing the battery
1 Open the lid of the battery compartment
located on the bottom of the unit.
2 Attach a battery to the battery connector.
Make sure that the battery is oriented in the
correct polarity.
3 Fit the battery into the battery compartment
and close the lid.
When the battery nears the end of its life, the
TUNER ON/OFF indicator will blink. Please
install a new battery as soon as possible.
The included battery is provided so that
you can verify that the unit is operating
correctly; its lifespan may be shorter than
normal.
Restoring the factory settings
Here’s how to return the pitchblack+ to the
factory settings.
1 Connect a cable to the INPUT A or INPUT B
jack; the pitchblack+ will be powered-on.
2 While holding down the UP button and
DOWN button, press the TUNER ON/OFF
switch.
The tuner will turn off, and the following
settings will return to their factory-set state.
Calibration: 440 Hz (40)
Tuning mode: Chromatic (CH)
Flat tuning: 0
Display mode: Focus (F1)
Temperament program: 0 cent for all notes
Отключите питание всего оборудования, прежде чем начнете выполнение подключений.
7
Installing the battery
1 Open the lid of the battery compartment
located on the bottom of the unit.
2 Attach a battery to the battery connector.
Make sure that the battery is oriented in the
correct polarity.
3 Fit the battery into the battery compartment
and close the lid.
When the battery nears the end of its life, the
TUNER ON/OFF indicator will blink. Please
install a new battery as soon as possible.
The included battery is provided so that
you can verify that the unit is operating
correctly; its lifespan may be shorter than
normal.
Restoring the factory settings
Here’s how to return the pitchblack+ to the
factory settings.
1 Connect a cable to the INPUT A or INPUT B
jack; the pitchblack+ will be powered-on.
2 While holding down the UP button and
DOWN button, press the TUNER ON/OFF
switch.
The tuner will turn off, and the following
settings will return to their factory-set state.
Calibration: 440 Hz (40)
Tuning mode: Chromatic (CH)
Flat tuning: 0
Display mode: Focus (F1)
Temperament program: 0 cent for all notes
Разъемы INPUT A, INPUT B и BYPASS являются монофоническими. Стереофонические кабели нельзя
использовать.
Адаптер переменного тока (9 В,
5
Flat tuning
You can tune your instrument down to seven
semitone steps below the note name shown in
the display.
Input jacks
The pitchblac k+ provides two input jacks,
INPUT A and INPUT B. You can specify
calibration, tuning mode, flat tuning, and
display mode individually for each input jack.
If you’ve connected an instrument to only one
of these jacks, you’ll be able to choose from two
sets of settings for your instrument.
Display mode
You can choose from six types of display
patterns for the LED meter. A variety of
illumination patterns are provided, including a
Meter that lights in the center when you're in
tune, a Strobe type meter that stops the flow of
illumination when the tuning is correct, and
Focus that uses dual LED meters to allow even
higher precision tuning.
BYPASS jack
When the tuner is off, the bypass output
delivers true bypass, in which the output signal
is completely unaffected by the internal
circuitry. The bypass output is muted when the
tuner is on.
DC 9V OUT jack
If you’re using the optional AC adapter (9V
), you can use the included DC cable to
supply
power for effect pedals that use
9V ( ). (A maximum of 200 mA can be
supplied.)
,
600 мА или более, приобретается
отдельно)
К разъему АС
Кабель DC (входит в комплект)
К педалям эффектов
Максимум 200 мА
7
Installing the battery
1 Open the lid of the battery compartment
located on the bottom of the unit.
2 Attach a battery to the battery connector.
Make sure that the battery is oriented in the
correct polarity.
3 Fit the battery into the battery compartment
and close the lid.
When the battery nears the end of its life, the
TUNER ON/OFF indicator will blink. Please
install a new battery as soon as possible.
The included battery is provided so that
you can verify that the unit is operating
correctly; its lifespan may be shorter than
normal.
Restoring the factory settings
Here’s how to return the pitchblack+ to the
factory settings.
1 Connect a cable to the INPUT A or INPUT B
jack; the pitchblack+ will be powered-on.
2 While holding down the UP button and
DOWN button, press the TUNER ON/OFF
switch.
The tuner will turn off, and the following
settings will return to their factory-set state.
Calibration: 440 Hz (40)
Tuning mode: Chromatic (CH)
Flat tuning: 0
Display mode: Focus (F1)
Temperament program: 0 cent for all notes
Не допускайте
прикосновения
неиспользуемых штекеров
к металлическим объектам.
В противном случае
вы можете повредить
адаптер переменного
тока. Убедитесь, что
неиспользуемые штекеры
защищены.
Подключите к усилителю или
педали эффектов, и т.п.
Гитара или
бас-гитара
