CONNECTIONS

DETACHING THE WALL MOUNT

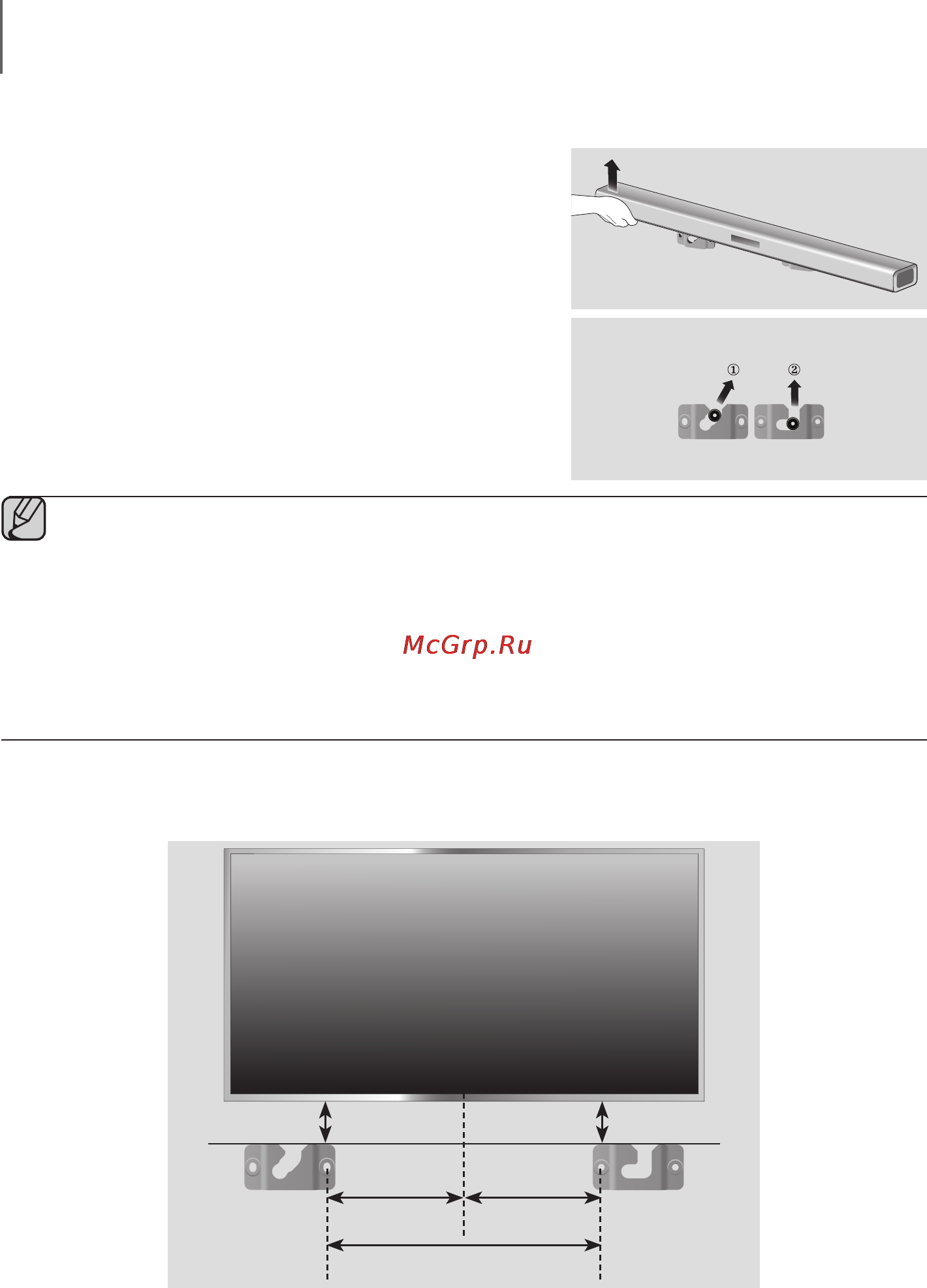

1. Pull the Soundbar upwards as shown in the figure to separate

it from the wall mount.

●

Do not hang onto the installed unit and avoid striking or dropping the unit.

●

Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may cause an

injury or damage the product.

●

When the unit is installed on a wall, please make sure that children do not pull any of the

connecting cables, as it may cause it to fall.

●

For the optimal performance of a wall mount installation, install the speaker system at least 2 inches

(5 cm) below the TV, if the TV is mounted on the wall.

●

For your safety, if you do not mount the unit on the wall, install it on a secure, flat surface where it

is unlikely to fall.

INSTALLING THE BRACKET WITHOUT REFERRING TO THE

WALL-MOUNT INSTALLATION GUIDE

2 inches

(5 cm) or more

2 inches

(5 cm) or more

6.3 inches

(16 cm)

6.9 inches

(17.5 cm)

Minimum 12.9 ~ 13.2 inches

(32.8 ~ 33.5cm)

1. Place the “Wall Mount L” on the desired wall surface while paralleled to the floor as shown above, and fix

a screw through the hole on its right end.

2. Place the “Wall Mount R” on the desired wall surface while paralleled to the floor as shown above, and fix

a screw through the hole on its left end.

●

If Wall Mount L/R are to be mounted beneath the TV, check their fixing hole positions in steps 1 and 2, so

that they are aligned appropriately to the center of the TV’s bottom.

3. Fix screws through the rest of holes.

Using the Soundbar with Wall Mount

[Detaching the Soundbar from the Wall Mount]
