1-2

X9DRH-7F/-iF/-iF-NV/-7TF/-iTF Motherboard User’s Manual

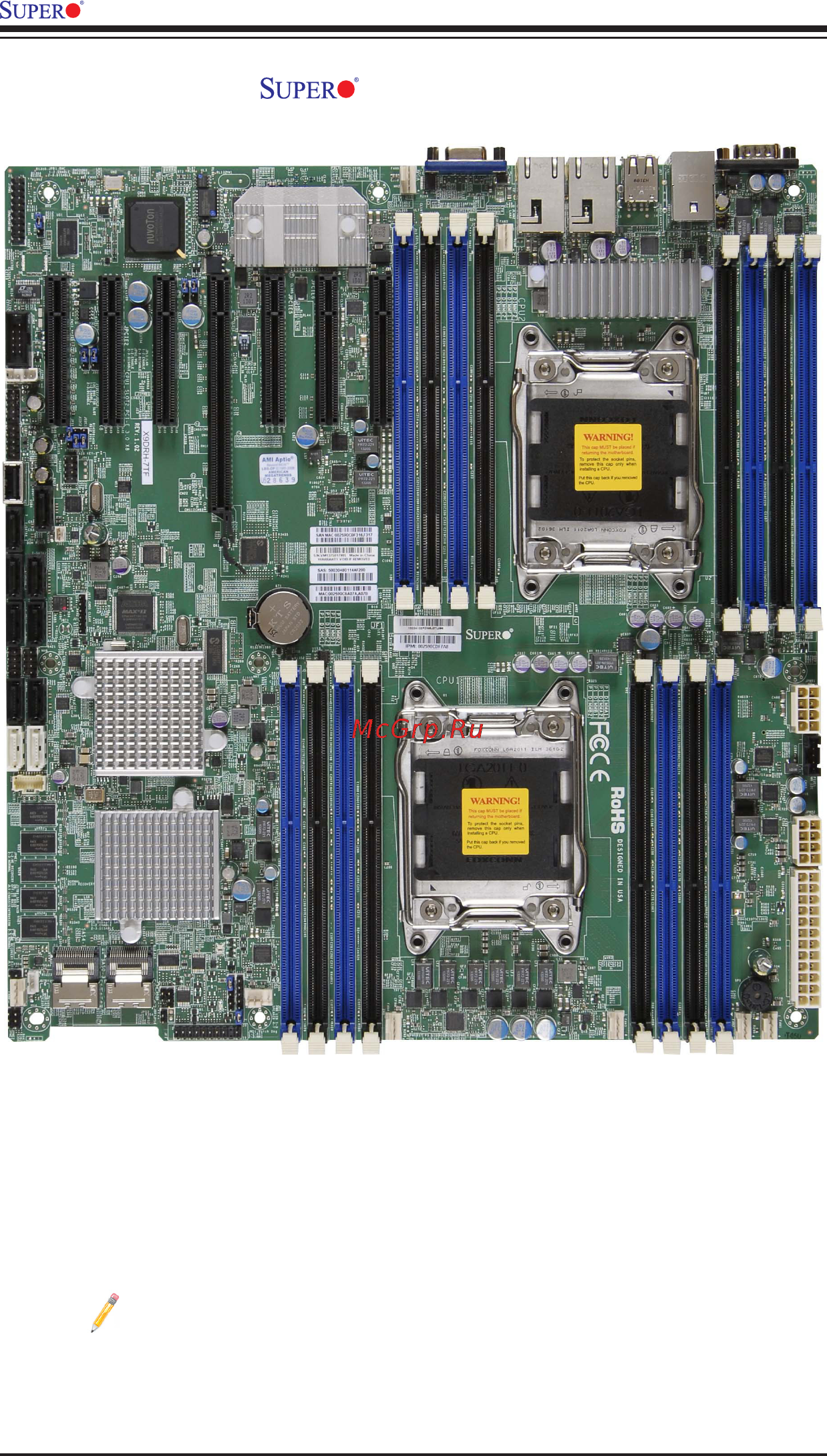

Motherboard Image

Note: All graphics shown in this manual were based upon the latest PCB

Revision available at the time of publishing of the manual. The motherboard

you've received may or may not look exactly the same as the graphics

shown in this manual.
