Supermicro X9DRH-IF-O [105/115] 6 boot

Chapter 4: AMI BIOS

4-29

4-6 Boot

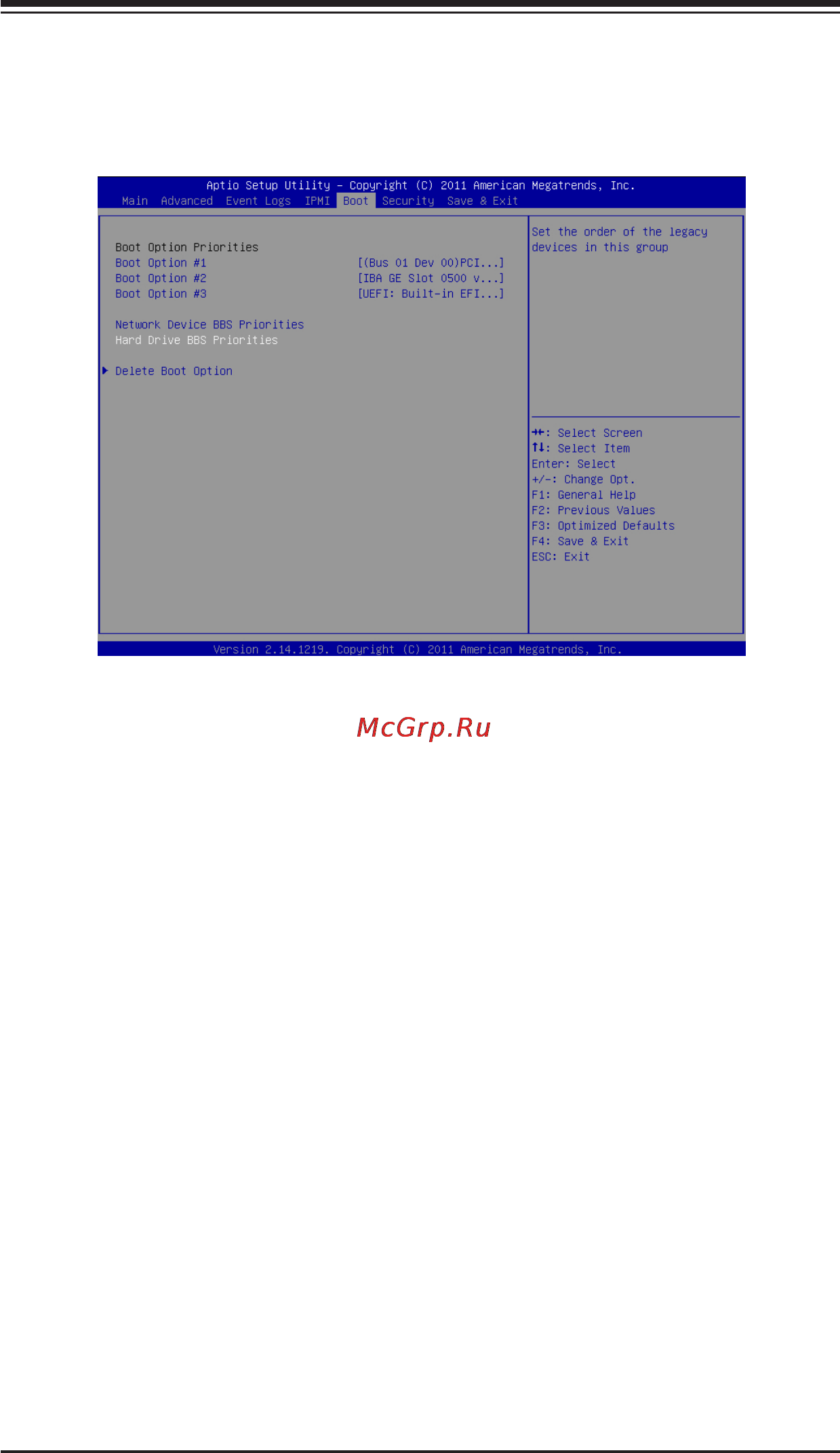

This menu allows the user to congure the following boot settings for the system.

Boot Option Priorities

Boot Option #1/ Boot Option #2/ Boot Option #3

Use this feature to specify the sequence of boot device priority.

Network Device BBS Priorities

This option sets the order of the legacy network devices detected by the mother-

board.



Delete Boot Option

This feature allows the user to delete a previously dened boot device from which

the system boots during startup.
