CONEL ER75i [11/101] User interfaces connectors
![CONEL ER75i [11/101] User interfaces connectors](/views2/1190496/page11/bgb.png)
DESCRIPTION
11
2.8. User interfaces (Connectors)
On the back panel of the router the following connectors are located:
• one RJ12 connector or MRT9 (PWR) – for connection of the power supply adapter,
• one RJ45 connector (ETH) – for connection into the local computer network,
• one RJ45 connector (optional PORT1) – for connection of the local any arrangement over
RS232, RS485/422, M-BUSD or CNT,
• one FME connector (ANT) – for connection of the antenna,
• one USB-B connector (USB) – for connection of the router to the PC.

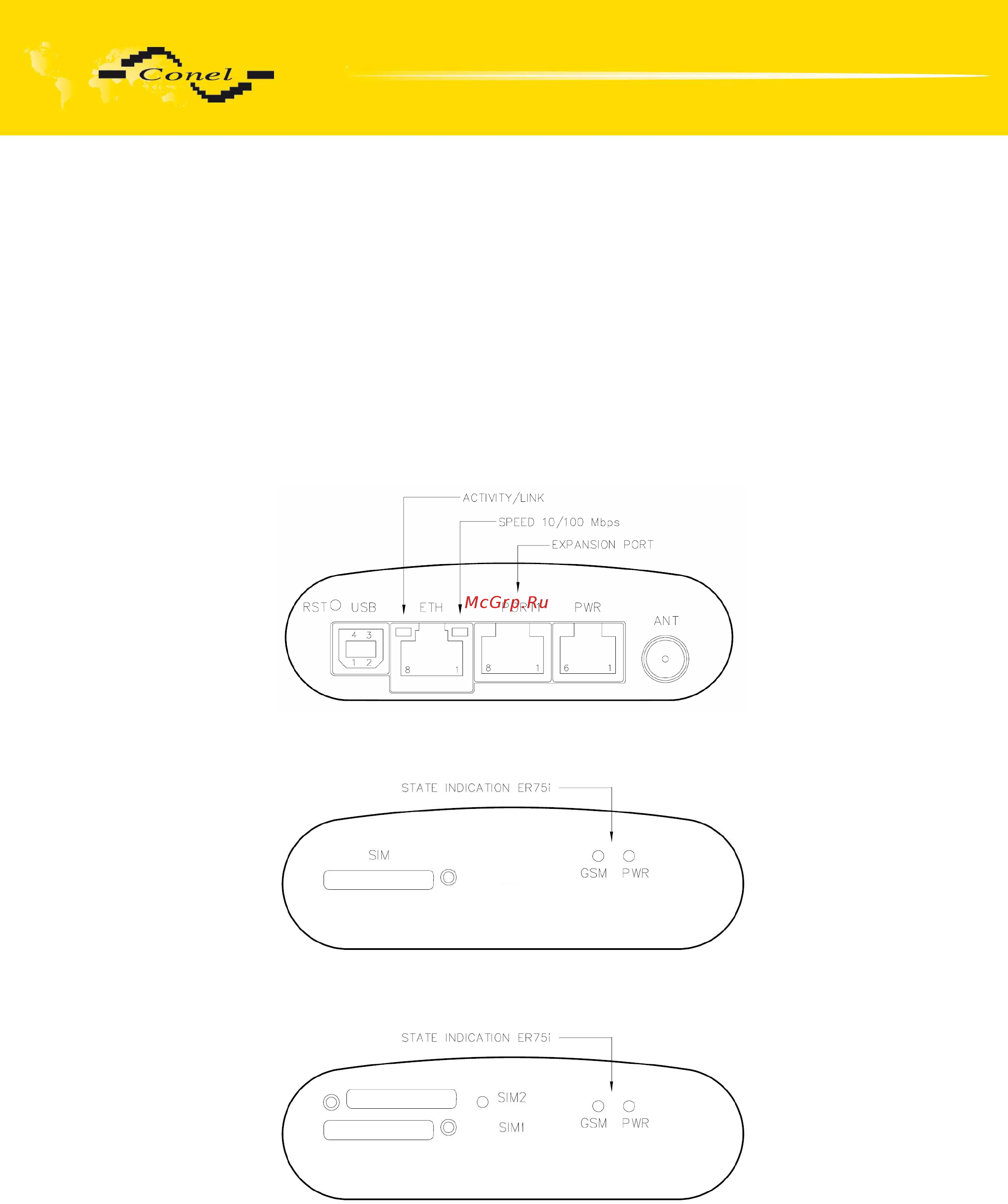

Rear panel ER 75i and ER 75i DUO
Front panel ER 75i
Front panel ER 75i DUO
