CONEL ER75i [2/4] Start guide er75i

START GUIDE ER75i & ER75s

First use

Before putting the router into operation it is necessary to connect all the components

that are required to run your applications.

The router cannot be operated without connected antenna, inserted SIM card and

connected power supply. If there is no connected antenna during operation of the router,

the router may be damaged!

Antenna connection

Use FME connector for antenna connection. Main antenna is connected by screwing

at ANT connector (see figure below).

Inserting SIM card

The SIM card reader for 3 V and 1.8 V SIM cards is located at the front panel of Conel

router. To initiate router operation it is necessary to insert an activated SIM card with

unblocked PIN to the SIM card reader.

Slide out SIM card holder by pressing the small yellow button right from the SIM card

socket. Insert SIM card into holder and push the holder into the reader (see figure below).

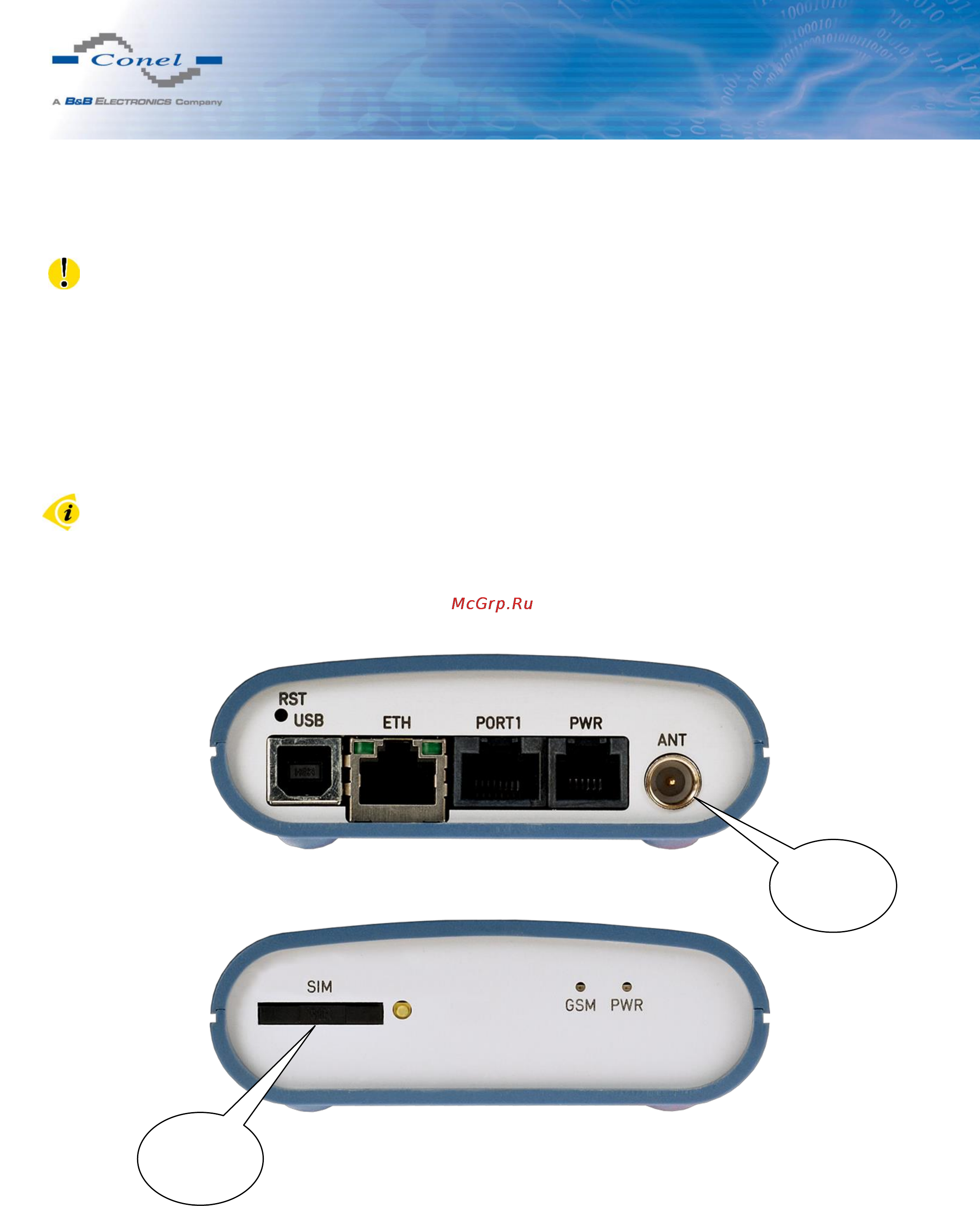

Antenna

connector

SIM card

reader
