START GUIDE ER75i & ER75s

Power cable connection

The router requires DC power supply from +10 to +30 V DC. The router has a built-in

protection against reverse polarity without signaling.

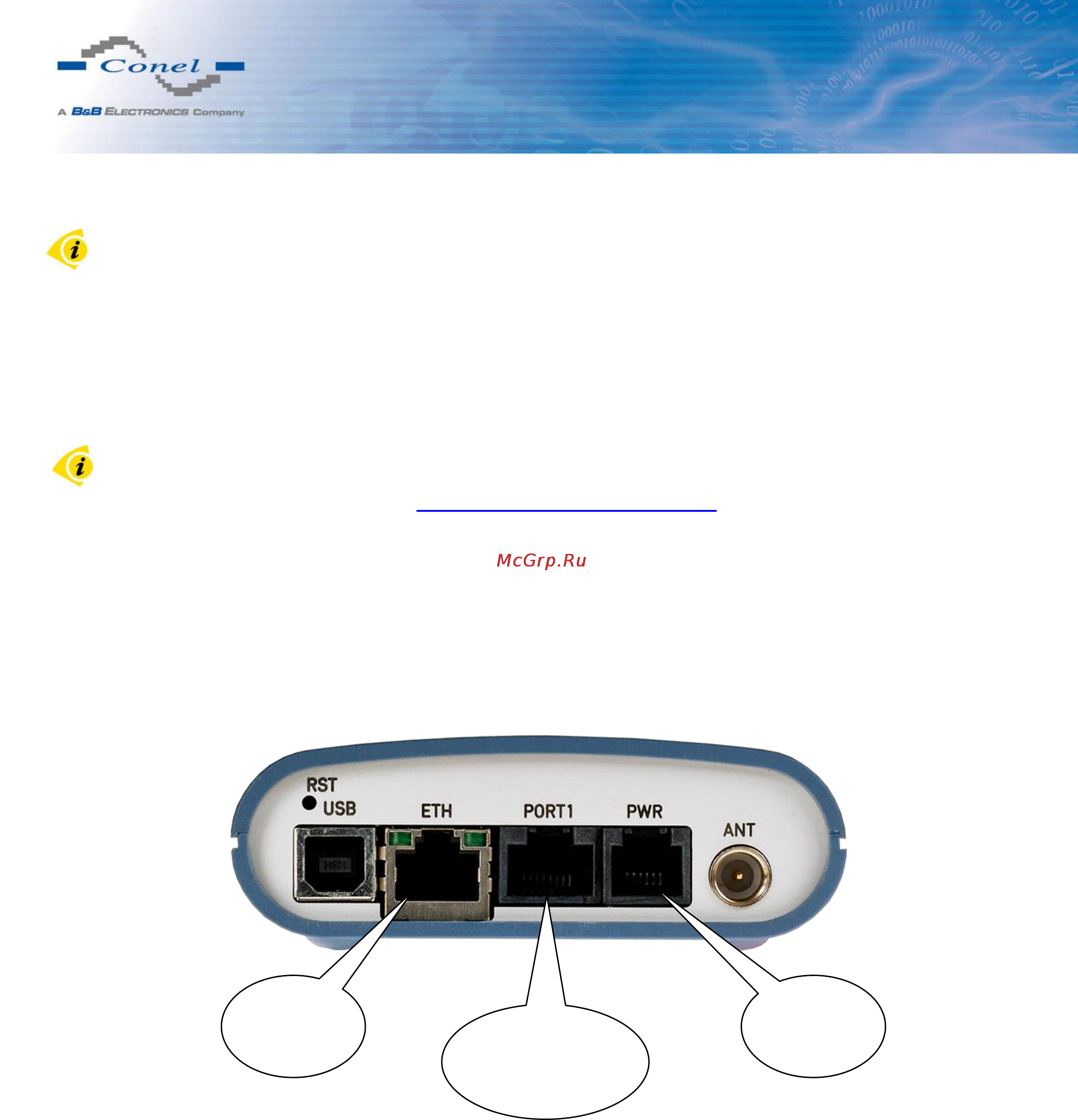

Connect power cable to PWR connector on the front panel of the (see figure below).

Ethernet cable connection

Ethernet cable is connected to ETH connector (see figure below). Ethernet cable is

used for configuration and communication with router.

If expansion port is assembled, cable is connected to port PORT1. Wiring of pins for

expansion port is described in manual of corresponding expansion port. These manual can

be found on the Conel website: http://www.conel.com/download. Please, use the following

Username: ConelFreeDownload

Password: coneldownload

Power

connector

Ethernet

connector

Connector for

expansion port
