Tp-Link tl-wa750re [21/42] Dhcp settings

TL-WA750RE

150Mbps Universal Wi-Fi Range Extender User Guide

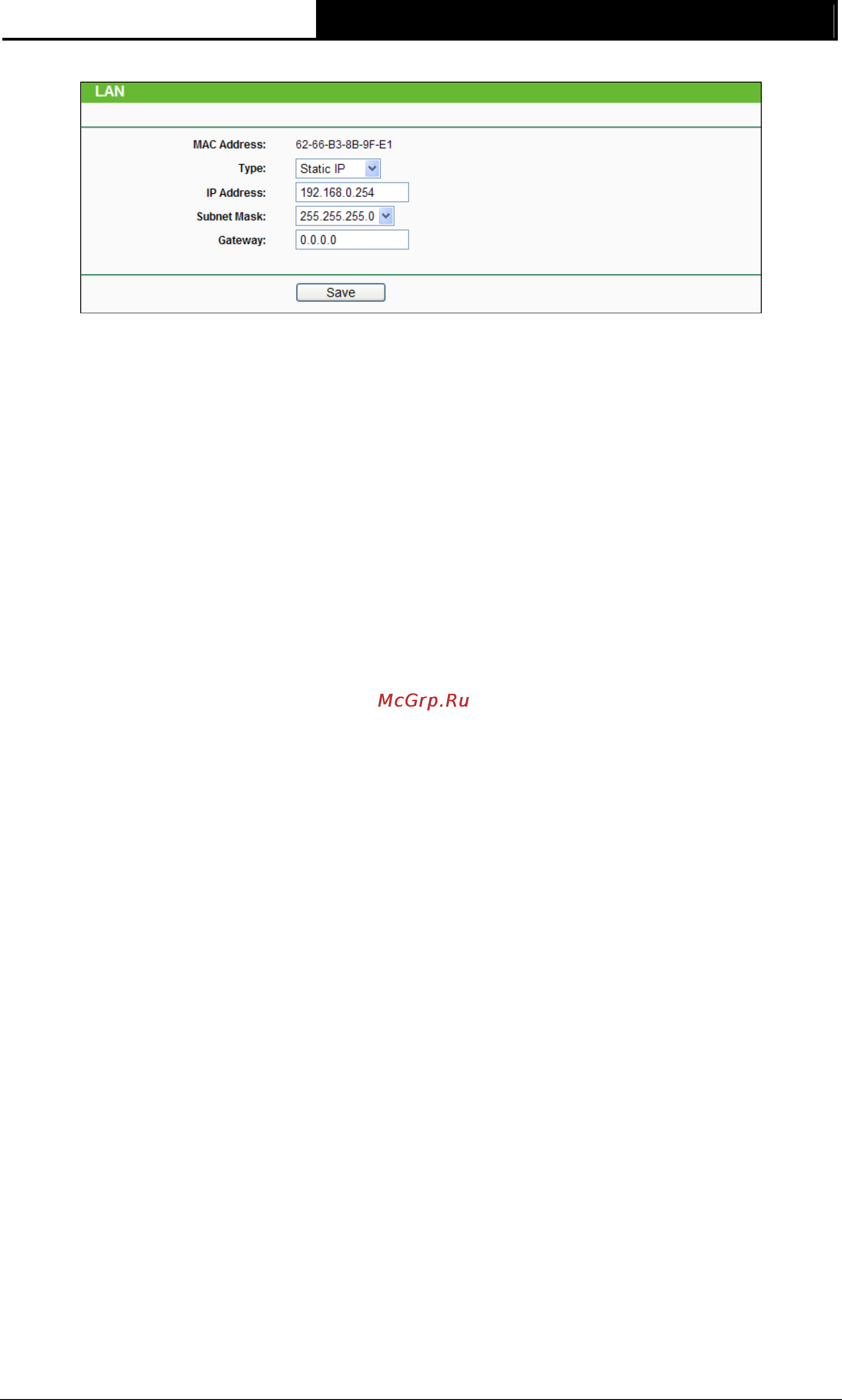

Figure 4-7 LAN – Static IP

 MAC Address - The physical address of the LAN port, as seen from the LAN. The value

cannot be changed.

 Type - Several IP types are supported, including: (1) Dynamic IP; (2) Static IP, and they are

explained below.

 Dynamic IP - In this type, if your range extender have connected to a router, your client

will dynamically get a IP Address/Gateway from the router, otherwise the client will get a

IP Address/Gateway in the same network as you set below. And this type is

recommended.

 Static IP - In this type, you can configure IP Address/Gateway manually.

 IP Address - Enter the IP address of your Range Extender in dotted-decimal notation (factory

default setting is 192.168.0.254).

 Subnet Mask - An address code that determines the size of the network. Normally use

255.255.255.0 as the subnet mask.

 Gateway - The gateway should be in the same subnet as your IP address.



Note:

1. The IP parameters cannot be configured if you have chosen Dynamic IP. In this situation the

device will automatically configure the IP parameters appropriate to your need.

2. If you are not familiar with the setting items in this page, it's strongly recommended to keep

the provided default values, otherwise may result in lower wireless network performance or

even can't work.

3. If you choose Static IP, the domain name log in function won't work, and you have to use the

IP you set to log in the Range Extender's web based utility.

4.4.2 DHCP Settings

DHCP stands for Dynamic Host Configuration Protocol. The DHCP Server will automatically

assign dynamic IP addresses to the computers on the network. This protocol simplifies network

management and allows new wireless devices to receive IP addresses automatically without the

need to manually assign new IP addresses.

Selecting Network > DHCP Settings will enable you to set up the Range Extender as a DHCP

(Dynamic Host Configuration Protocol) server, which provides the TCP/IP configuration for all the

PCs that are connected to the system on the LAN. The DHCP Server can be configured on the page

(shown as Figure 4-9), only when you’ve set the Network LAN type as Static IP in Figure 4-7.
