www.timberk.com • electric convector heater
4
8. Impact and heat resistant glass.
9. A built-in fall sensor will switch off the convector if it is turned away
from a vertical position, for example, if it is accidentally tipped over when
operated on legs.

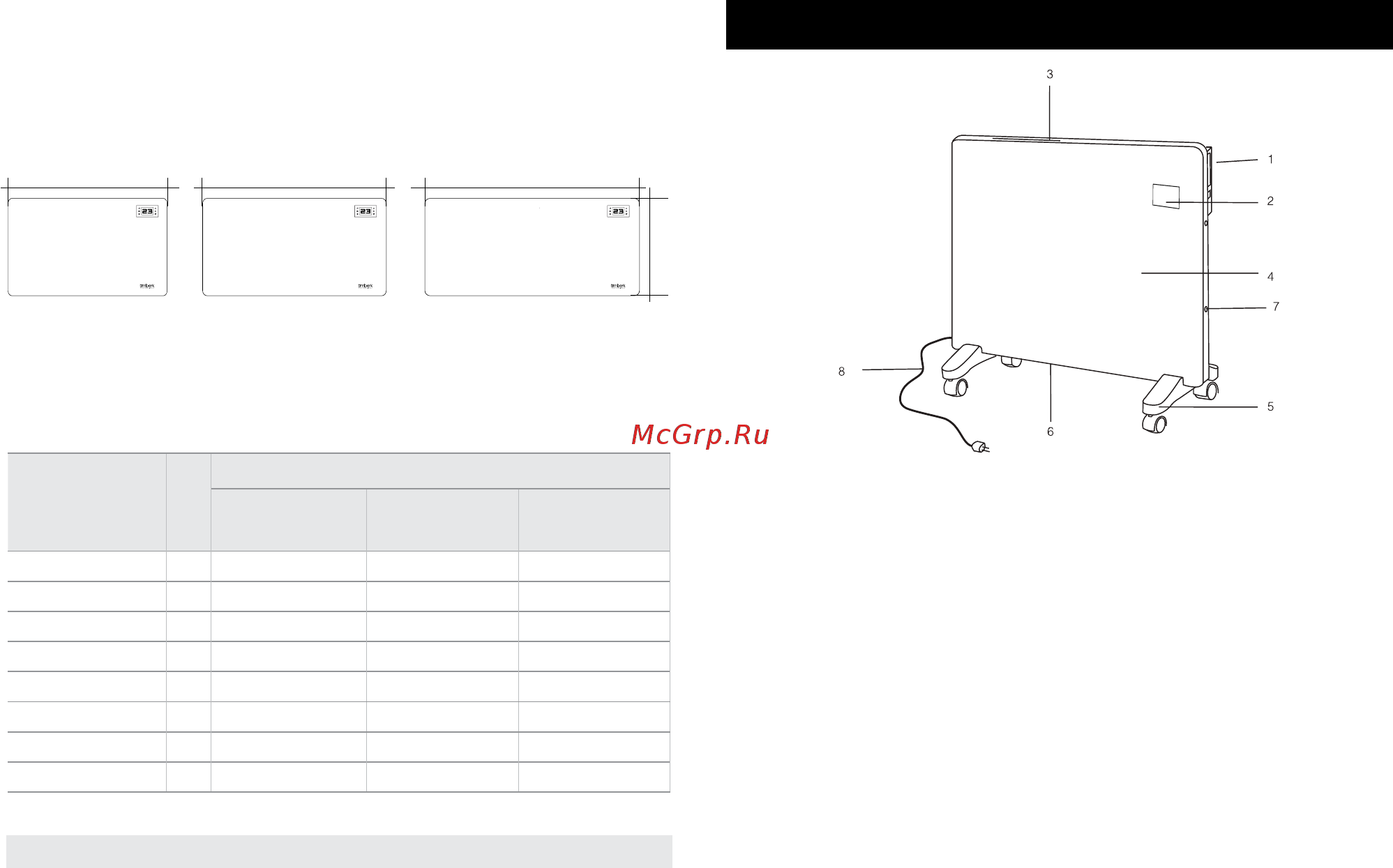

Dimensions of convectors depending on power (Fig. 1)
Timberk series convectors are distinguished on maximum consumed
power of the heating element and differ from each other by the unit’s length
at equal height and depth. (Standard overall height of all units is equal to
430 mm). This pattern in forming overall dimensions allows the consumer
to use Timberk convectors of different power in one room next to each
other without breaking regular symmetries, and perfectly integrating
several units into your interior at the same time.
1. Glass panel
2. Rear cover
3. Control panel
4. Mechanical power switch
5. Hooks
6. Feet
For a detailed description of technical parameters and characteristics go to www.timberk.com
or contact TIMBERK official dealers.
The manufacturer reserves the right to change the set-list of the device (including liquid and
powder components) for different supplies without prior notice. The changes either in no way
influence the basic technical parameters of the device or may improve them, and also not
violate the legislation or quality standards of the countries of manufacture, transit and selling.
The changes in the set-list may result in changing of the weight and dimensions of the device,
but not more than by +\- 5-20% (depending on the product category)
Technical characteristics
Technical characteristics of the convector are given in Table 1.
Table 1
Fig. 1
Description
Model
TEC.PF8 LE 1000 IN
TEC.PF9 LE 1000 IN
TEC.PF10 LE 1000 IN
TEC.PF8 LE 1500 IN
TEC.PF9 LE 1500 IN
TEC.PF10 LE 1500 IN
TEC.PF8 LE 2000 IN
TEC.PF9 LE 2000 IN
TEC.PF10 LE 2000 IN
Rated voltage
V/Hz
~220-240/50 ~220-240/50 ~220-240/50
Rated current
A
4,54 6,8 9,1
Rated power consumption
W
1000 1500 2000
Power on modes
W
600/1000 900/1500 1200/2000
Water protection class IP24 IP24 IP24
Class of electric protection Class I Class I Class I
Overall dimensions
mm
600x430x70 814x430x70 894x430x70
Weight
kg
6.3 7.6 9.2
4. DESCRIPTION OF THE CONVECTOR (FIG. 2)
Fig.2
1000 W 1500 W 2000 W
894 mm814 mm600 mm
430 mm
