Part names and functions (sound bar)

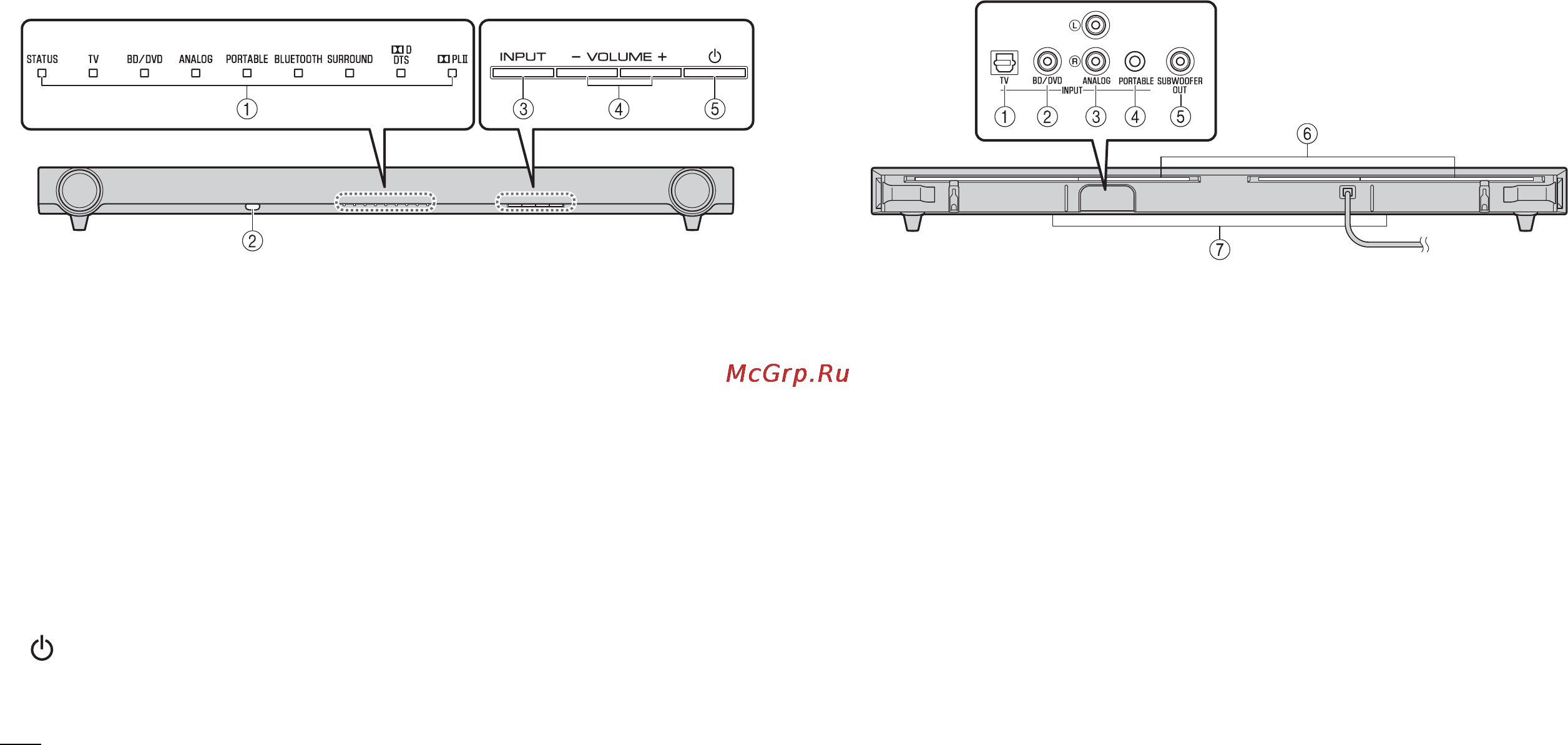

Sound bar (front panel)

A Indicators

Indicate the status of the sound bar.

The indicators will dim automatically if no operations are performed for 5 seconds.

B Remote control sensor

Receives infrared signals from the remote control of the sound bar (p.6).

Receives infrared signals from the TV remote control when the TV Remote Repeater

function is enabled (p.13).

C INPUT key

Selects an input source to be played back (p.6).

D VOLUME (+/-) keys

Adjust the volume (p.6).

E (power) key

Turns on or off (standby) the sound bar (p.7).

HINT

• The sound bar will be automatically turned off when one of the following conditions is met.

− No operations for 8 hours

− No audio input and no operations for 30 minutes

Sound bar (rear panel)

A TV input jack

For connecting to a TV with an optical cable.

B BD/DVD input jack

For connecting to a playback device, such as a Blu-ray Disc (BD) player, with a

coaxial digital cable.

C ANALOG input jacks

For connecting an external device with an RCA stereo cable.

D PORTABLE input jack

For connecting a portable device with a 3.5 mm stereo mini plug cable.

E SUBWOOFER OUT jack

For connecting an external subwoofer with a monaural pin cable.

The default setting is for the built-in subwoofer. The setting has to be changed to

output signal to an external subwoofer (p.13).

F TV Remote Repeater

Transmits TV remote control signals received at the remote control sensor to the TV

(p.13).

G Dual built-in subwoofers

The built-in subwoofers are located in the bottom part of the sound bar.
