LUBRICATOR CHARACTERISTICS

Model

Number of

Feeds

Maximum

Operating

Pressure

Reservoir

Capacity

(Quarts) (1)

HP-15 1 to 6 18,000 7 1/4 4 1 .008 .002 .133 .033 36 3

use with mineral oil or synthetic base lubricants with viscosities in the range

of 100 to 5,000 SUS under pumping conditions.

Heaters and Other Accessories — Both electrical and steam heater

assemblies for low ambient temperatures and/or high viscosities are available

on special order.

Also available are low level, low level/shaft rotation alarms and auto fill

devices.

Finish — The exteriors of all pumping units are Parco-Lubrited, as well as

the inside and outside of the cast reservoir and its cover. This makes painting

unnecessary, and eliminates many of the problems of handling synthetic

Reservoir and Cover — Heavily ribbed cast iron.

Cylinder — Hardened alloy steel, precision-honed.

Plunger — Hardened alloy steel, precision-ground and fitted.

Valves — Poppet type, flat face, hardened and ground alloy steel.

Valve Seats — Hardened and ground alloy steel.

Driveshaft — Integral crankshaft type, hardened, ground and polished alloy

steel, machined from solid bar.

Bearings — Bronze bushed, high load capacity, long-life, self-lubricating

type.

Regulating Lever — Forged steel.

of Bottom Gauge Glass.

of Bottom Gauge Glass.

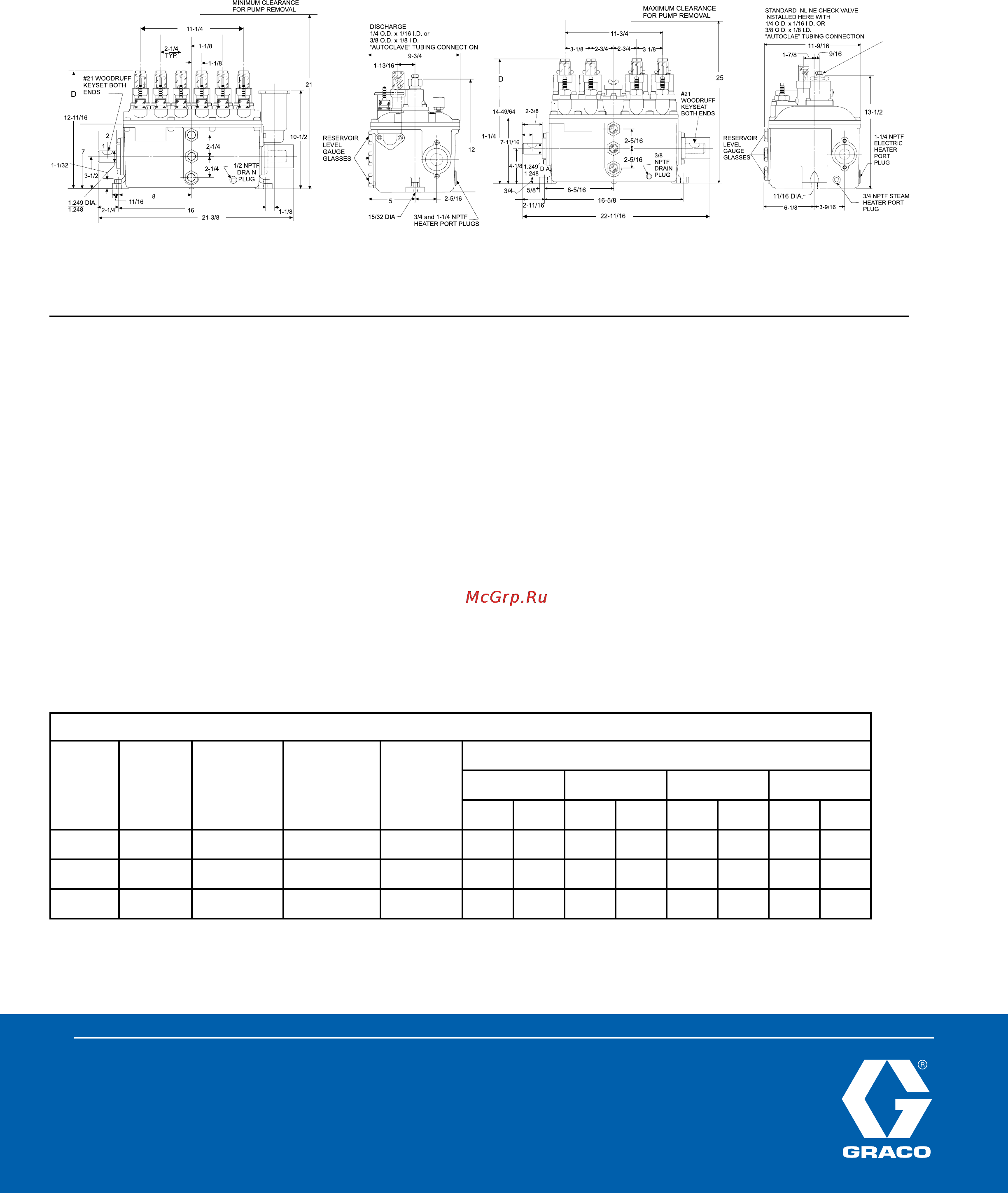

Front View End Front Front View End Front
