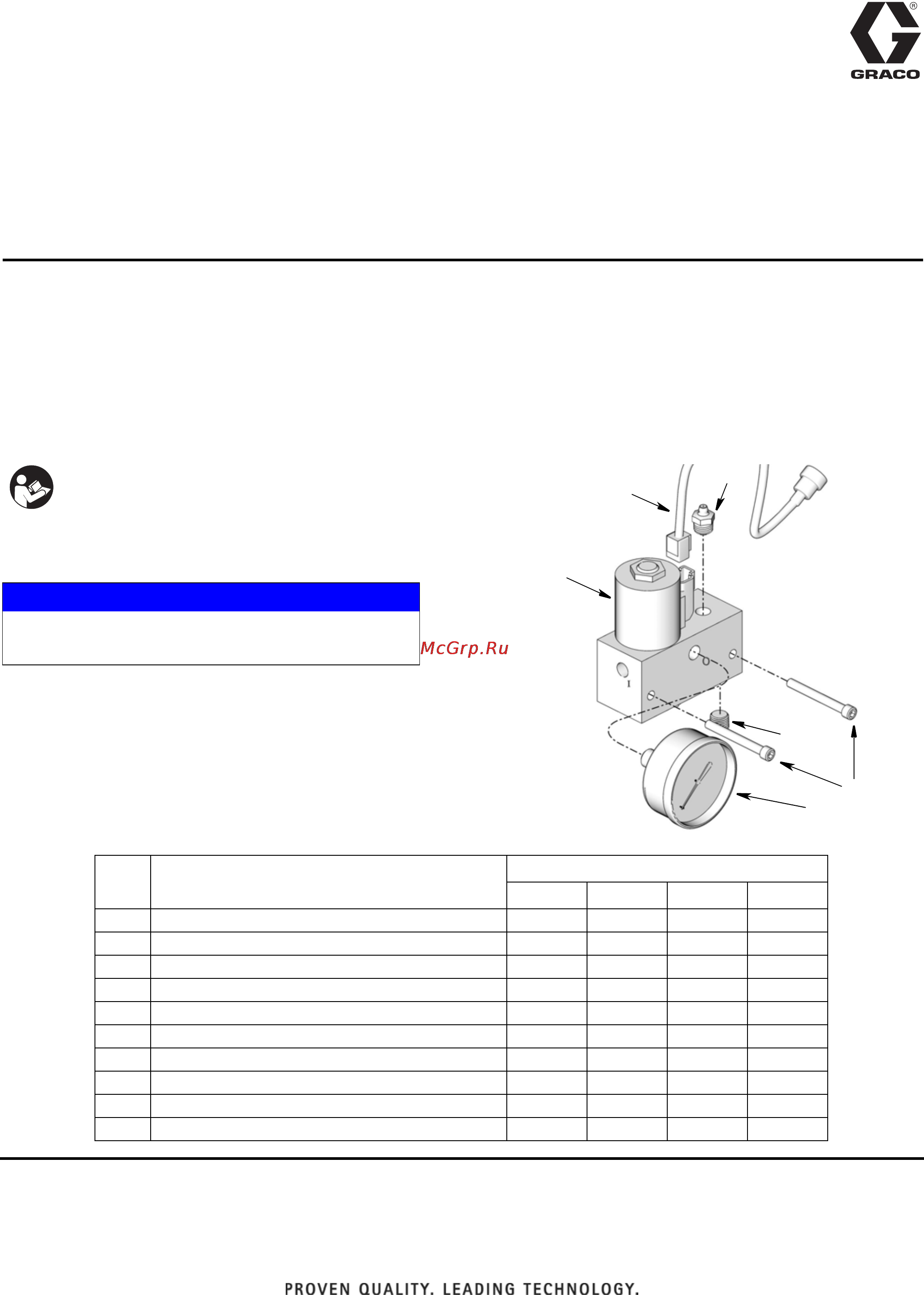

Instructions

G3 Vent Valve Kit

Instructions for installing vent valve. For professional use only.

Part No.:

12 VDC, NPT- 571061; 24 VDC, NPT - 571029

12 VDC, BSPP - 24F537; 24 VDC, BSPP - 24F536

Maximum Working Pressure: 3500 psi (241 bar, 24 MPa)

Kit Parts:

Important Safety Instructions

Read all warnings and instructions in this

manual and the G3 Pump instruction manual

included with your unit. Save these instructions.

NOTICE

All user supplied tubing must be rated for the same

pressure or equipment could be damaged.

ti15466

Ref. Description

Qty

571029 571061 24F536 24F537

1VALVE, vent, 12 VDC, NPT 0100

VALVE, vent, 24 VDC, NPT 1000

VALVE, vent, 12 VDC, BSPP 0001

VALVE, vent, 24 VDC, BSPP 0010

2CABLE, 6 ft, vent valve, 2 pin 1111

3FITTING, grease 1111

4PLUG, dryseal, 1/4 NPTF 3333

5SCREW, cap, socket 2222

6GAUGE, pressure, fluid 1111

7 ADAPTER, NPT to BSPP (not shown) 0011

3A0526E

ENG
