9. Apply thread sealant (user supplied) to threads (k)
of a tube fitting (m).
NOTE: Although the example shown in F
IG. 8 shows
a 90° elbow fitting, this is only shown for reference.
The user may use what ever fitting best suits their
installation.
10. Install tube fitting (m) in open port.
11. Wrench tighten fitting (m) then torque to 50 in. lbs
(5.6 N•m).
12. Install vent tube (n) between vent port (p) and fitting
(m) (F
IG. 9).
13. The kit includes the following additional parts:
Zerk Grease Fitting (optional) (4)
Plugs (must be installed in any open outlet port)
(5)
Pressure Gauge (optional) (7)
Install any of these parts in the remaining outlet
ports on the manifold block.
NOTE: Any port not used by a pressure gauge (7) or
zerk grease fitting (4) MUST have a plug (5)
installed in the opening.
Retrofitting Existing
Installations
NOTE: These instructions assume grease is already
loaded in injector valves.
Installation
1. Disconnect power source.
2. Relieve pressure, page 2.
3. Remove existing plumbing installed between pump
element (d) (F
IG. 5) and injector inlet (h) (FIG. 6).
4. Continue installation following Installation Instruc-
tions, Steps 3 - 13, on pages 3 - 4.

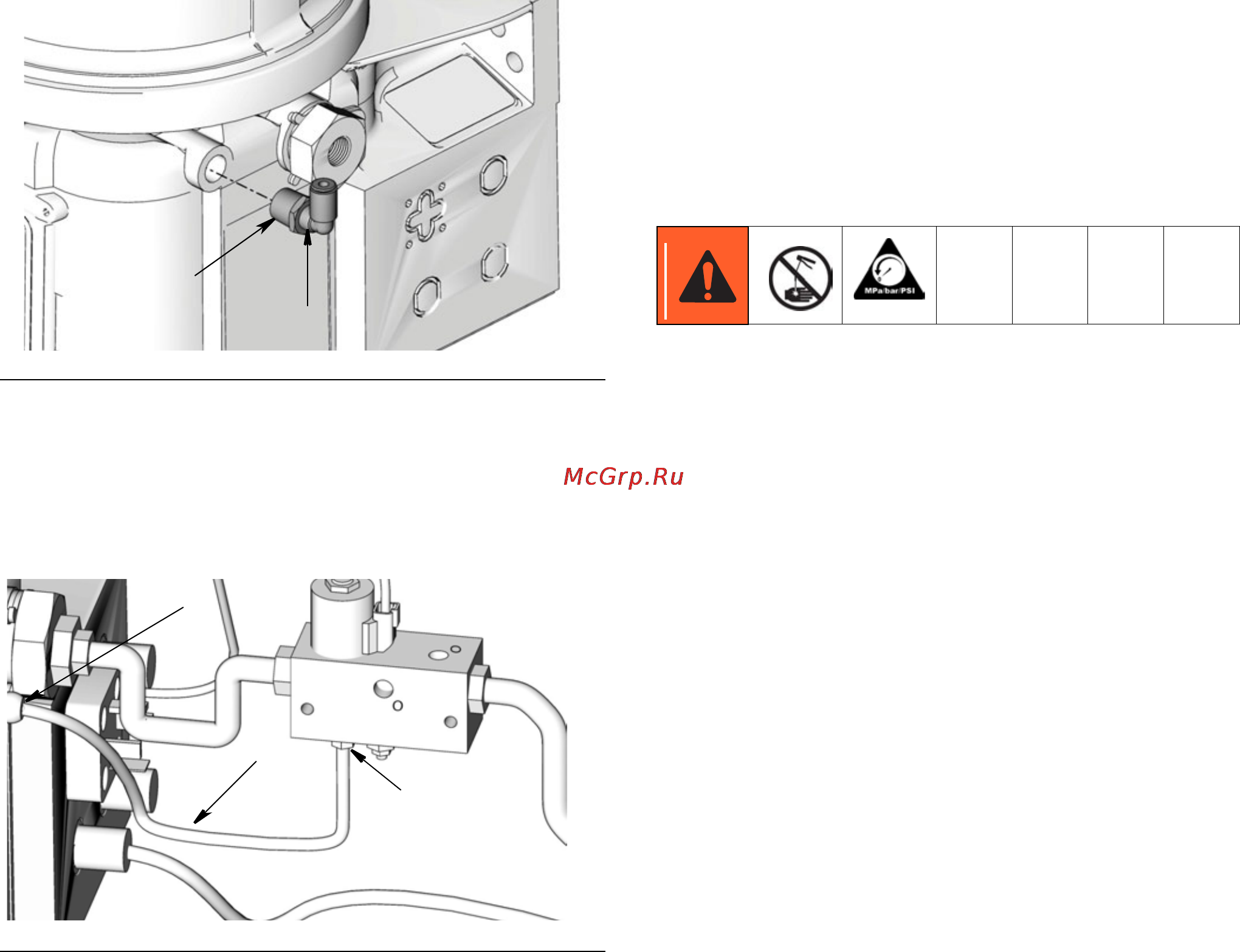

FIG. 8
FIG. 9
k
m
ti15469
m
p
n
ti15463
