Instructions

3A0526E 3

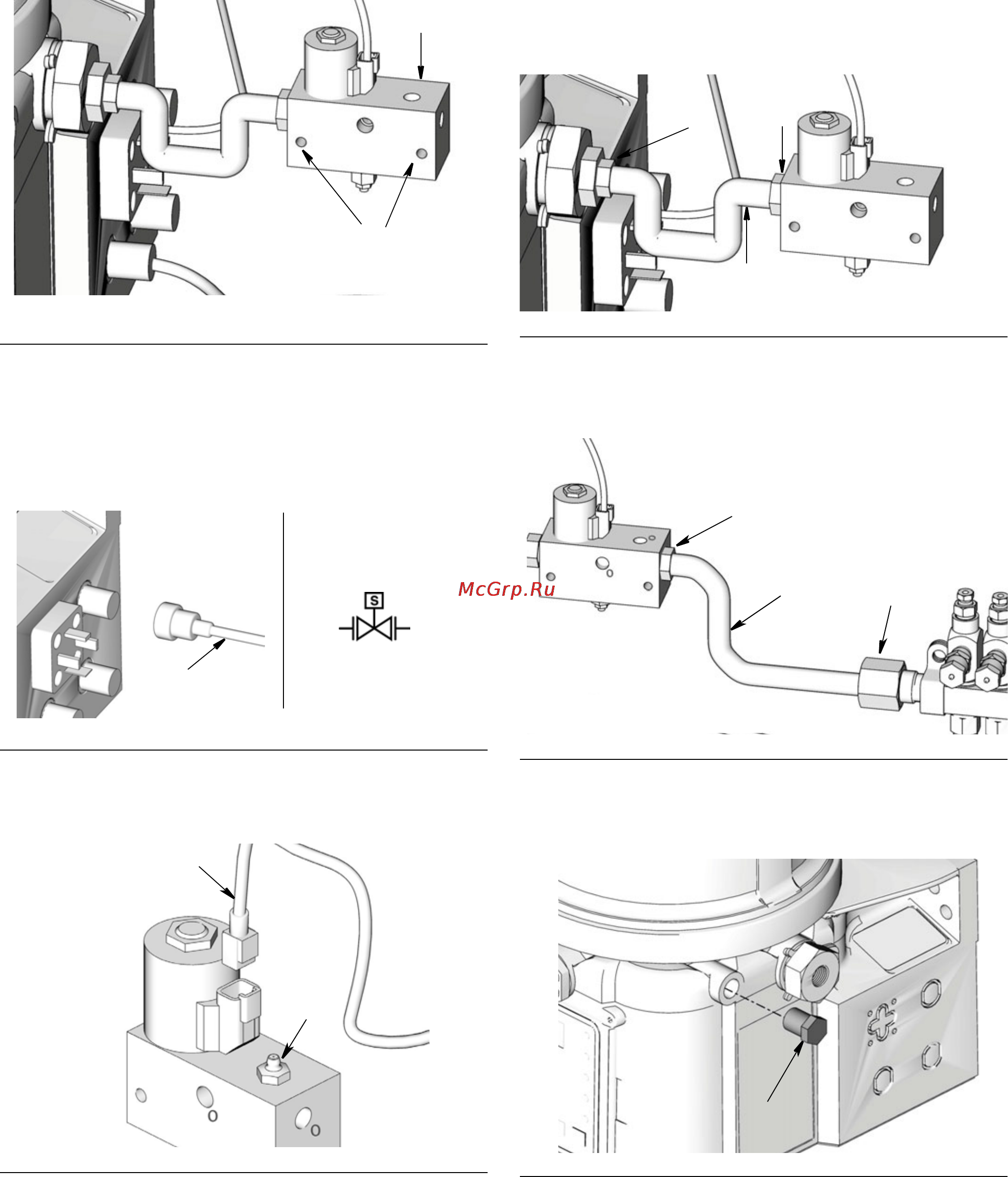

3. Mount vent valve block (1) to a fixed surface near

the G3 pump using mounting holes (b) and two

socket screws (5).

4. Connect end of cable (2) to the G3 (F

IG. 3).

NOTE: Verify correct port on G3 label is selected.

Locate symbol shown in F

IG. 3 on G3 label to select

correct port.

5. Connect cable connector (2) to solenoid valve (1)

IG. 4).

NOTE: If using one of the BSPP Vent Valve Kits, install

adapter (7) into pump element prior to installing pump

element fitting (c) then continue installation, Step 6.

6. Connect inlet tube (c) to pump element fitting (d)

and inlet fitting (e) to manifold port (stamped with an

“I”) (F

IG. 5). Wrench tighten only.

7. Connect main tube (f) to any manifold outlet (g)

(stamped with an “O”) and injector inlet (h) (F

IG. 6).

8. Use a wrench to loosen plug (j) from return location.

Remove plug from port (F

IG. 7).

FIG. 2: Mounting Dimension a = 3.25 inches (8.255

cm). Thread 1/4 - 20 UNC-2A

FIG. 3

FIG. 4

ti15463

Vent Valve

Symbol

ti15593

ti15544

FIG. 5

FIG. 6

FIG. 7

ti15463

ti15468

ti15464
