Setup

4 308667V

Setup

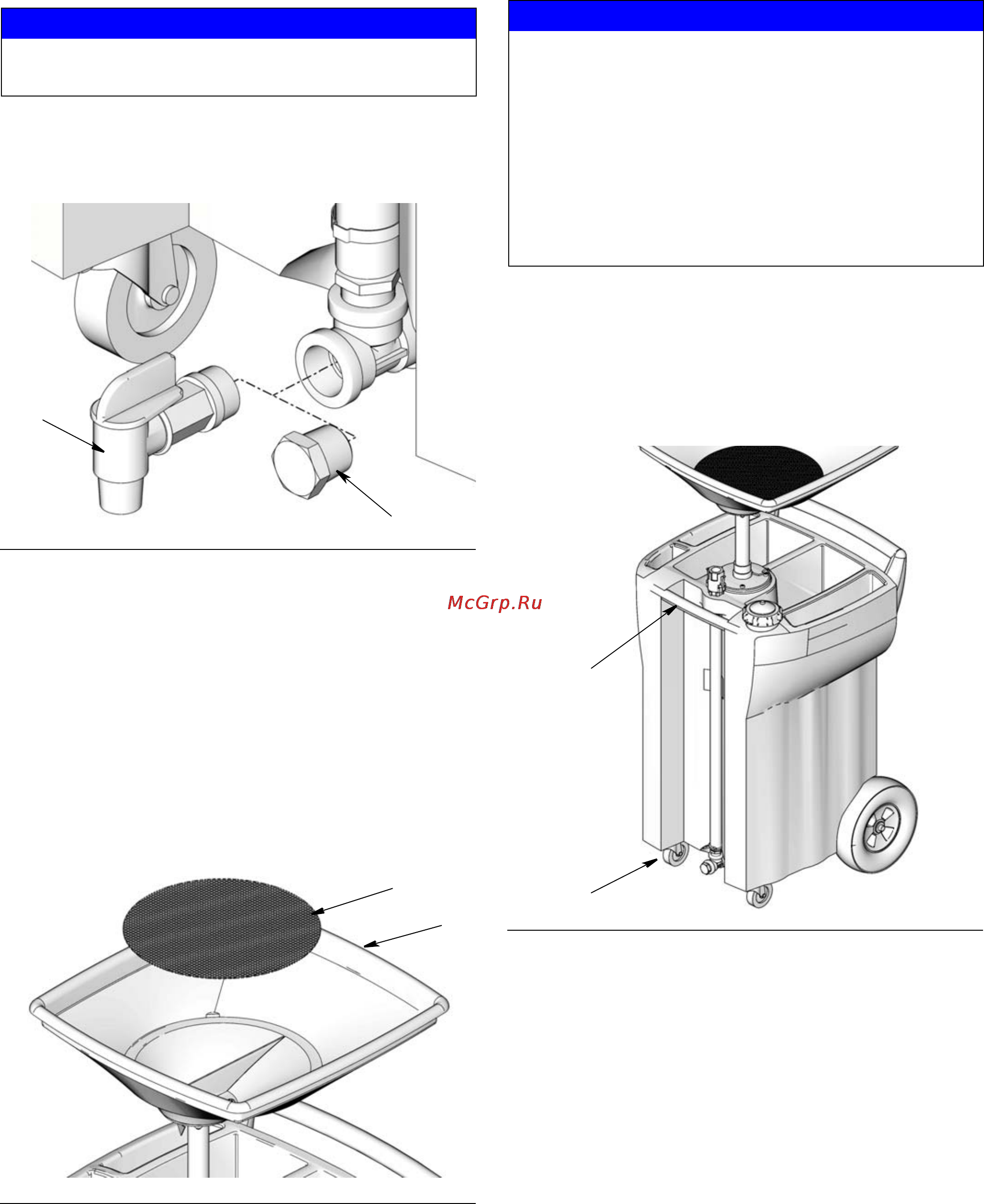

1. Before adding any fluid to the drum, select the evac-

uation method you will use to empty fluid from the

drum when it is full.

• For evacuation systems, be sure the drain plug (12)

is installed (also see instruction manual 308719.)

• For gravity fed systems, remove drain plug (12) and

install drain valve (25).

NOTE: In F

IG. 1 the drain valve (25) is shown in the

closed position. To open it, rotate the handle so it points

away from the drum.

2. The strainer (2f) is shipped loose and must be

installed in funnel assembly (2) prior to use (F

IG. 2).

Positioning the Collection Container

Guide the collection container to the drain location.

• Use the front handle (a) to move the collection

container. Pivoting casters (b) are located on

the front of the container to help make it easier

to maneuver into the correct draining position.

NOTICE

Install a gravity drain valve to prevent spilling when not

using a receiver evacuation system.

FIG. 1

FIG. 2

NOTICE

Do not attempt to move the collection container with

the funnel assembly (2) raised or after you have started

any drain procedure.

• Lowering the funnel assembly (2) until it meets the

funnel collar (6), lowers the center of gravity and

reduces the possibility of the unit tipping.

• Moving the collection container before completing

any drain procedure could result in tipping and

cause accidental fluid spills.

FIG. 3
