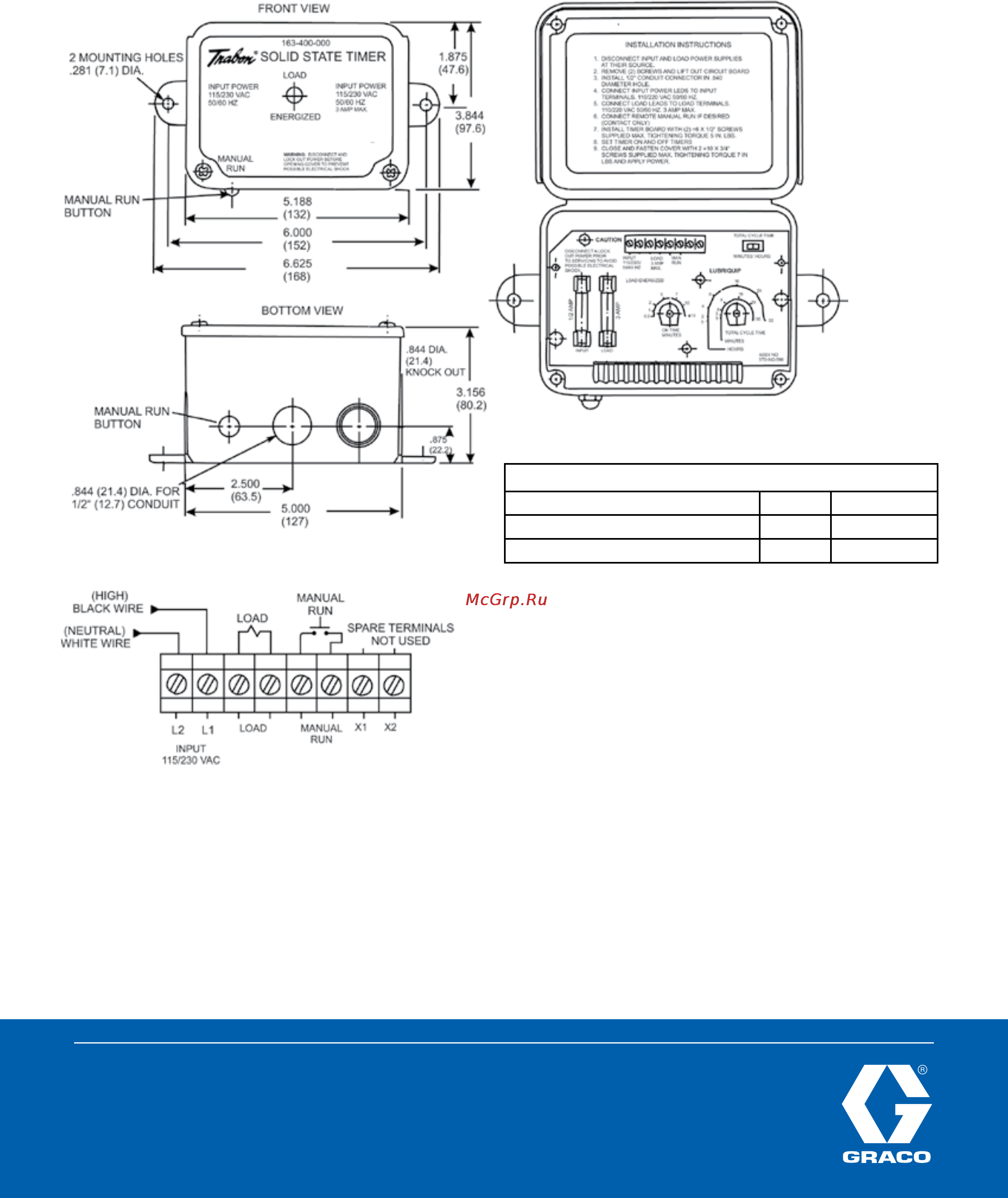

DIMENSIONS Inches/(mm)

WIRING DIAGRAM

NOTE: Two spare terminals x1 and x2 are provided for customer

convenience. They are not connected on the board and can be

used for any terminations or junctions.

INSTALLATION

It’s this simple. Disconnect & Lockout input and load power

supplies.

Open the timer cover. Remove the timer circuit board. Install a

total cycle will begin with the “on” time period as previously set.

Note: The “total cycle time” must not be less than the “on time” or

the timer will remain in the “on” condition continuously.

All written and visual data contained in this document are based on the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice.

©2006-2009 Graco Inc. Form No. L14521 Rev. B 2/09 Printed in U.S.A. All other brand names or marks are used for identification purposes and are trademarks of their respective owners. All written and

visual data contained in this document are based on the latest product information available at the time of publication. Graco reserves the right to make changes at any time without notice.

Contact us today!

To receive product information or talk with a Graco representative,

call 800-533-9655 or visit us online at www.graco.com.

ORDERING INFORMATION
