Graco 8900 [52/86] Cylinder assemblies
![Graco 8900 [52/86] Cylinder assemblies](/views2/1193778/page52/bg34.png)
Parts
52 309790ZAE

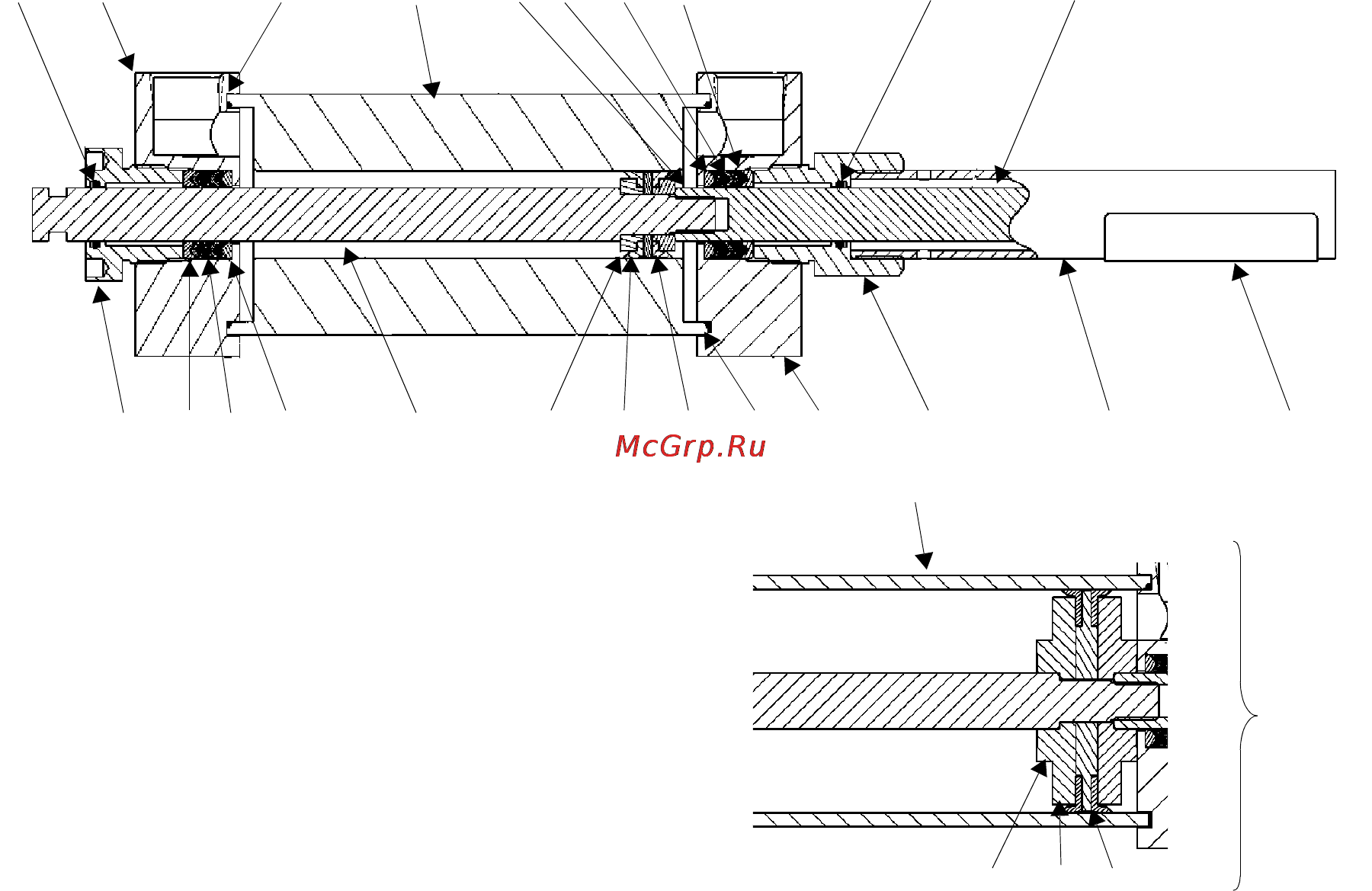

Cylinder Assemblies
(ref. nos. 7 and 14 FR, 1 and 2 VR)
Part No. 246558
Model 246557 only
Part No. 570366
Models 570373 and 570374 only
Part No. 570367
Models 570372, 570375, and 570377 only
Part No. 570369
Models 570371 and 570376 only
Part No. C24145
Models 570371,570372, 570374, 246557,and 570376
Ref.
No. Part No. Description Qty.
101 C24054 SHAFT, piston, outer 1
102 C24055 SHAFT, piston, inner 1
103 C24022 NUT, packing 1
104 C24026 BLOCK, cylinder, inside 1
105 15C180 CYLINDER, 111; 246558 only 1
C23171 CYLINDER, 250; 570366 only
C23200 CYLINDER, 500; 570367 only
C23137 CYLINDER, 100; 570369 only
C23136 CYLINDER; 1000; C24145 only
106 15C181 SPACER; 246558 only 1
C23431 SPACER, 570366 only
C23460 SPACER, 570367 only
C23398 SPACER; 570369 only
C05031 SPACER; C24145 only
107 15C182 PACKING, cup; 246558 only 2
C23318 PACKING, cup; 570366 only
C23350 PACKING, cup; 570367 only
C23282 PACKING, cup; 570369 only
C05032 PACKING, cup; C24145 only
108 15C183 RING, backup; 246558 only 2
C23547 RING, backup; 570366 only
C23515 RING, backup; 570369 only
C05029 RING, backup; C24145 only
C23574 RING, backup; 570367 only
109* C20278 O-RING; fluoroelastomer 2
110 C21002 V-PACKING; PTFE 10
111 C36244 GLAND, male 2
112 C36246 GLAND, female 2
113 C24023 BLOCK, cylinder, outside 1
114* 188554 O-RING, fluoroelastomer 2
115 C57617 NUT, packing 1
116 C57618 TUBE, guard 1
117 179788 LABEL, warning 1
118 SEALANT, thread lock 1
*EPDM replacement part available in kit 289402
Ref.
No. Part No. Description Qty.
101
102103
104 105
106107108
109 110111 112
113
114
115 116 117
114
109
106107108
110
111
112
105
C24145
118
