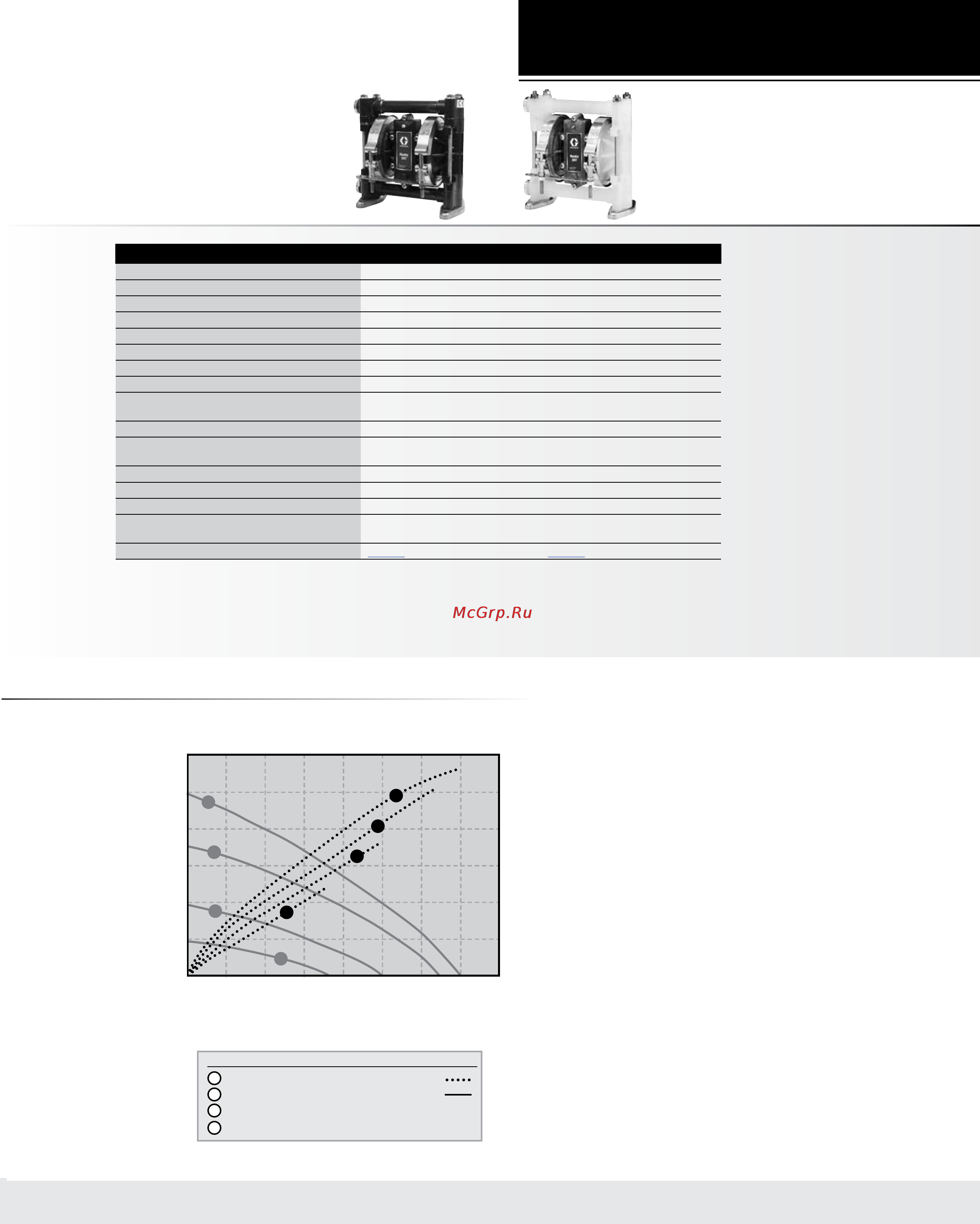

PROCESS EQUIPMENT CATALOG
Husky 307 Plastic Pumps
Air-Operated Double Diaphragm
Technical Specifications
Husky 307 Plastic Pumps Acetal Polypropylene
Maximum fluid working pressure 100 psi (7 bar, 0.7 MPa) 100 psi (7 bar, 0.7 MPa)
Maximum free flow delivery* 7.0 gpm (26.5 lpm) 7.0 gpm (26.5 lpm)
Maximum pump speed 330 cpm 330 cpm
Displacement per cycle** 0.02 gallon (0.076 liter) 0.02 gallon (0.076 liter)
Maximum suction lift (D31255) 12 ft (3.7 m) dry 12 ft (3.7 m) dry
Maximum size pumpable solids 0.06 in (1.5 mm) 0.06 in (1.5 mm)
Maximum ambient operating temperature*** 180°F (65.5°C) 150°F (65.5°C)
Maximum diaphragm operating temperature*** Refer to page 5 Refer to page 5
Typical sound level at 50 psi
(3.5 bar, 0.35 MPa) air @ 50 cpm
75 dBa 75 dBa
Maximum air consumption 6 scfm (0.17 m3/min) 6 scfm (0.17 m3/min)
Air pressure operating range 20 to 100 psi
(1.4 to 8.4 bar, 0.14 to 0.84 MPa)
20 to 100 psi
(1.4 to 8.4 bar, 0.14 to 0.84 MPa)
Air inlet size 1/4 npt(f) or bspt(f) 1/4 npt(f) or bspt(f)
Fluid inlet & outlet size**** 3/8 npt(f) 3/8 npt(f)
Weight 5.2 lb (2.4 kg) 4.75 lb (2.2 kg)
Wetted parts (in addition to ball, seat and
diaphragm materials–which may vary by pump)
Acetal with Stainless
Steel fibers, PTFE
Polypropylene, PTFE
Instruction manual
308553 308553
*Flow rates are with muffler and do not vary based on diaphragm material
**Displacement per cycle may vary based on suction condition, discharge head, air pressure and fluid type
***Actual pump performance may be affected by prolonged usage at temperature
Performance Chart
FLUID FLOW
(Pump tested in water with inlet submerged
FLUID OUTLET PRESSURE psi (bar, MPa)
AIR CONSUMPTION scfm (m
3
/min
gpm
(lpm)
1
(3.8)
100
(7, 0.7)
120
(8.4, 0.84)
80
(5.5, 0.55)
60
(4.1, 0.41)
40
(2.8, 0.28)
20
(1.4, 0.14)
1
(0.028)
2
(0.057)
3
(0.085)
4
(0.11)
5
(0.14)
6
(0.17)
0
2
(7.6)
3
(11.4)
4
(15.2)
5
(19.0)
6
(22.7)
8
(30.0)
7
(26.5)
0
C
Husky 307 Performance
AIR PRESSURE LEGEND
= at 100 psi (7 bar, 0.7 MPa) Air Consumption
= at 70 psi (4.8 bar, 0.48 MPa) Fluid Pressure
= at 40 psi (2.8 bar, 0.28 MPa)
A
B
C
= at 20 psi (1.4 bar, 0.14 MPa)
D
A
B
C
D
A
B
D
updated 2/15
