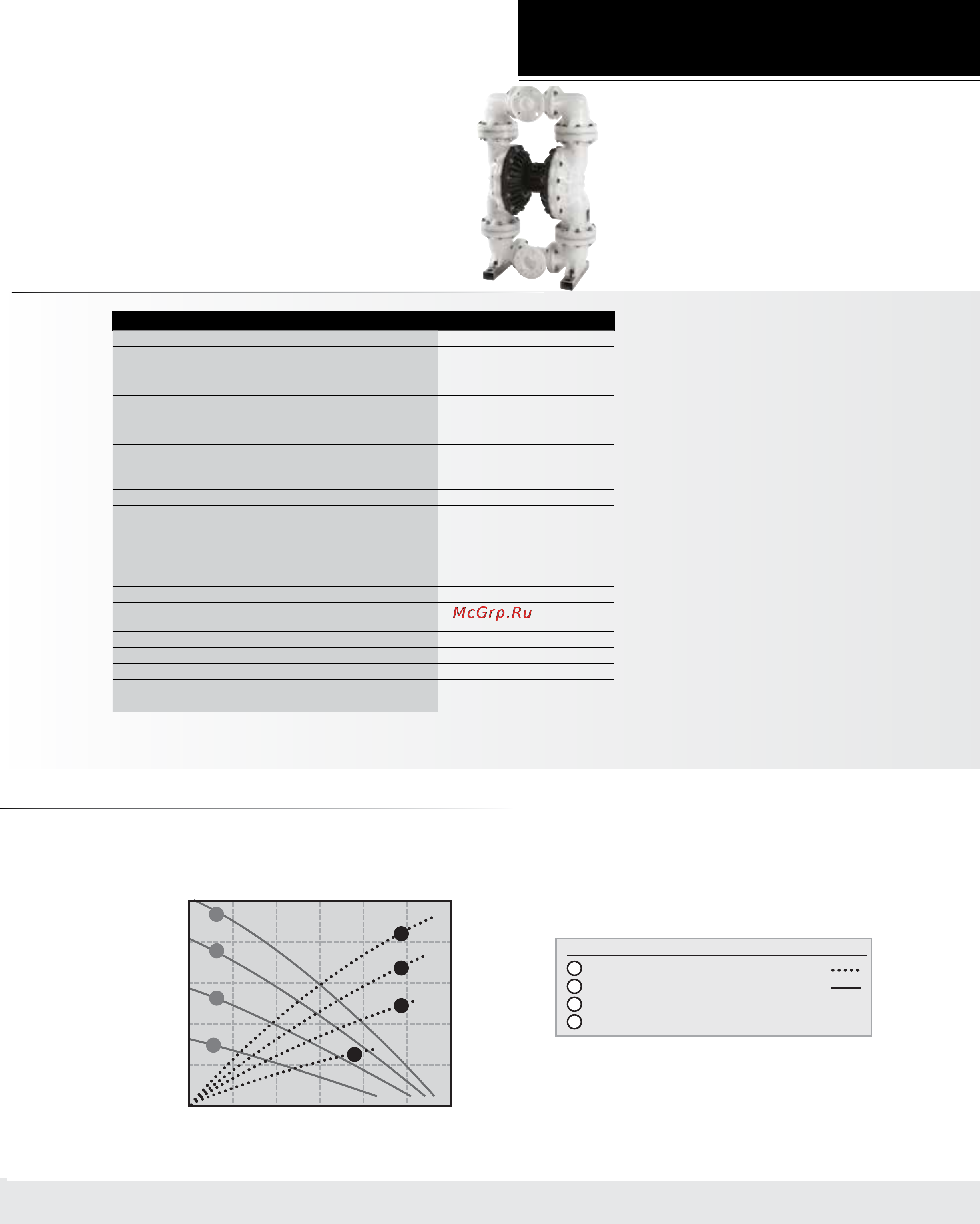

PROCESS EQUIPMENT CATALOG
updated 2/15
PROCESS EQUIPMENT CATALOG
Husky 3300 Plastic Pumps
Air-Operated Double Diaphragm
updated 2/15
Husky 3300 Plastic Pumps Polypropylene
Maximum fluid working pressure 100 psi (7.0 bar, 0.7 MPa)
Maximum free flow delivery*
Standard diaphragms at 100 psi (7.0 bar, 0.7 MPa)
Overmolded diaphragms at 100 psi (7.0 bar, 0.7 MPa)
280 gpm (1,059 lpm)
260 gpm (984 lpm)
Maximum pump speed*
Standard diaphragms at 100 psi (7.0 bar, 0.7 MPa)
Overmolded diaphragms at 100 psi (7.0 bar, 0.7 MPa)
97 cpm
130 cpm
Maximum suction lift *
(varies widely based on ball/seat selection and wear, operating
speed, material properties, and other variables)
8 ft (2.4 m) dry
Maximum size pumpable solids 0.5 in (13 mm)
Noise (dBa)***
Sound Power at 50 psi (3.4 bar) and 50 cpm
Sound Power at 120 psi (8.3 bar) and full flow
Sound Pressure at 50 psi (3.4 bar) and 50 cpm
Sound Pressure at 120 psi (8.3 bar) and full flow
92 dBa
99 dBa
86 dBa
93 dBa
Maximum air consumption 275 scfm (7.8 m
3
/min.)
Air pressure operating range 20 to 100 psi
(1.4 to 7.0 bar, 0.14 to 0.7 MPa)
Air inlet size 3/4 npt(f)
Fluid inlet/outlet 3 in (76.2 mm) ANSI/DIN flange
Weight 200 lb (91 kg)
Instruction manual 3A0410
Repair/parts manual
3A0411
* Maximum values with water as media at ambient temperature. Water level is approximately 3 feet above pump inlet.
** Startup pressures and displacement per cycle may vary based on suction condition, discharge head, air pressure, and fluid type.
*** Sound power measured per ISO-9614-2. Sound pressure was tested 3.28 ft (1 m) from equipment.
Technical Specifications
Performance Charts
FLUID FLOW
(Pump tested in water with inlet submerged)
Approx. Cycles per Minute
FLUID OUTLET PRESSURE psi (bar, MPa)
AIR CONSUMPTION scfm (m
3
/min)
gpm
(lpm)
50
(189)
125
(8.6, 0.86)
100
(7, 0.69)
75
(5.2, 0.52)
50
(3.4, 0.34)
25
(1.7, 0.17)
75
(2.1)
225
(6.4)
150
(4.2)
300
(8.5)
375
(10.6)
0
100
(379)
150
(568)
200
(757)
250
(946)
17.2 34.5 51.7 69.0 86.2
300
(1136)
0
Husky 3300 Performance
AIR PRESSURE LEGEND
= at 125 psi (8.3 bar, 0.83 MPa) Air Consumption
= at 100 psi (7 bar, 0.7 MPa) Fluid Pressure
= at 70 psi (4.8 bar, 0.48 MPa)
A
B
C
= at 40 psi (2.8 bar, 0.28 MPa)
D
A
B
C
D
D
A
B
C
FLUID FLOW
(Pump tested in water with inlet submerged)
Approx. Cycles per Minute
FLUID OUTLET PRESSURE psi (bar, MPa)
AIR CONSUMPTION scfm (m
3
/min)
gpm
(lpm)
50
(189)
125
(8.6, 0.86)
100
(7, 0.69)
75
(5.2, 0.52)
50
(3.4, 0.34)
25
(1.7, 0.17)
75
(2.1)
225
(6.4)
150
(4.2)
300
(8.5)
375
(10.6)
0
100
(379)
150
(568)
200
(757)
250
(946)
17.2 34.5 51.7 69.0 86.2
300
(1136)
0
Husky 3300 Performance
AIR PRESSURE LEGEND
= at 125 psi (8.3 bar, 0.83 MPa) Air Consumption
= at 100 psi (7 bar, 0.7 MPa) Fluid Pressure
= at 70 psi (4.8 bar, 0.48 MPa)
A
B
C
= at 40 psi (2.8 bar, 0.28 MPa)
D
A
B
C
D
D
A
B
C
