Husky 3300 Metal Pumps
Air-Operated Double Diaphragm
updated 2/15

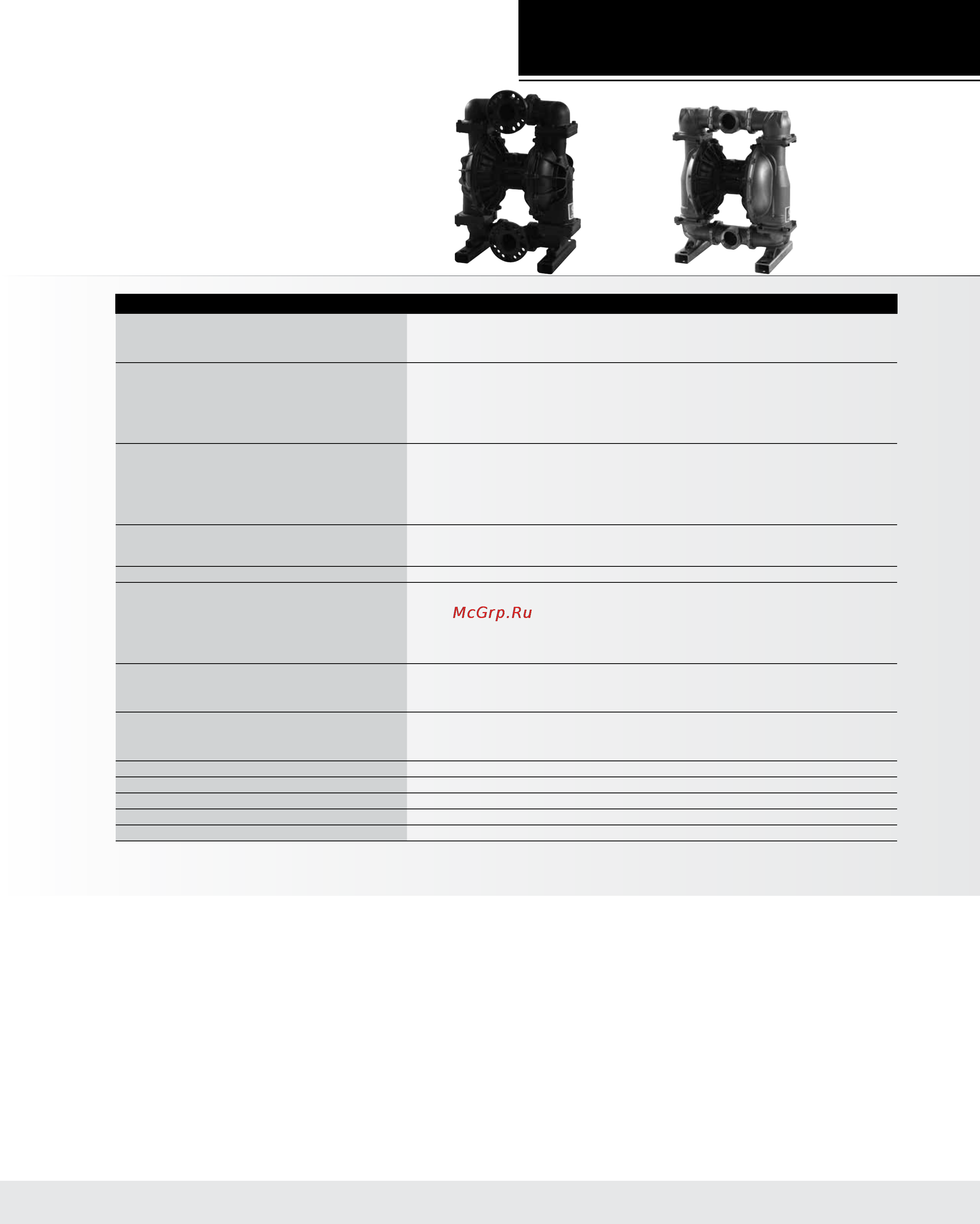

Technical Specifications
Husky 3300 Metal Pumps Aluminum Stainless Steel
Maximum fluid working pressure
with Aluminum Center Section
with Polypropylene Center Section
125 psi (8.6 bar, 0.86 MPa) 125 psi (8.6 bar, 0.86 MPa)
100 psi (7.0 bar, 0.7 MPa)
Maximum free flow delivery*
Standard diaphragms at 125 psi (8.6 bar, 0.86 MPa)
Standard diaphragms at 100 psi (7.0 bar, 0.7 MPa)
Overmolded diaphragms at 125 psi (8.6 bar, 0.86 MPa)
Overmolded diaphragms at 100 psi (7.0 bar, 0.7 MPa)
300 gpm (1,135 lpm)
280 gpm (1,059 lpm)
270 gpm (1,022 lpm)
260 gpm (984 lpm)
300 gpm (1,135 lpm)
280 gpm (1,059 lpm)
270 gpm (1,022 lpm)
260 gpm (984 lpm)
Maximum pump speed*
Standard diaphragms at 125 psi (8.6 bar, 0.86 MPa)
Standard diaphragms at 100 psi (7.0 bar, 0.7 MPa)
Overmolded diaphragms at 125 psi (8.6 bar, 0.86 MPa)
Overmolded diaphragms at 100 psi (7.0 bar, 0.7 MPa)
103 cpm
97 cpm
135 cpm
130 cpm
103 cpm
97 cpm
135 cpm
130 cpm
Maximum suction lift *
(varies widely based on ball/seat selection and wear,
operating speed, material properties, and other variables)
8 ft (2.4 m) dry
28 ft (8.5 m) wet
8 ft (2.4 m) dry
28 ft (8.5 m) wet
Maximum size pumpable solids 0.5 in (13 mm) 0.5 in (13 mm)
Noise (dBa)***
Sound Power at 50 psi (3.4 bar) and 50 cpm
Sound Power at 120 psi (8.3 bar) and full flow
Sound Pressure at 50 psi (3.4 bar) and 50 cpm
Sound Pressure at 120 psi (8.3 bar) and full flow
92 dBa
99 dBa
86 dBa
93 dBa
92 dBa
99 dBa
86 dBa
93 dBa
Maximum air consumption
with Aluminum Center Section
with Polypropylene Center Section
335 scfm (9.5 m
3
/min.) 335 scfm (9.5 m
3
/min.)
275 scfm (7.8 m
3
/min.)
Air pressure operating range
with Aluminum Center Section
with Polypropylene Center Section
20 to 125 psi (1.4 to 8.6 bar, 0.14 to 0.86 MPa) 20 to 125 psi (1.4 to 8.6 bar, 0.14 to 0.86 MPa)
20 to 100 psi (1.4 to 7.0 bar, 0.14 to 0.7 MPa)
Air inlet size 3/4 npt(f) 3/4 npt(f)
Fluid inlet 3 in (76.2 mm) npt or bspt with ANSI/DIN flange 3 in (76.2 mm) npt or bspt
Weight 150 lb (68 kg) 255 lb (116 kg)
Instruction manual 3A0410 3A0410
Repair/parts manual 3A0411 3A0411
* Maximum values with water as media at ambient temperature. Water level is approximately 3 feet above pumpinlet.
** Startup pressures and displacement per cycle may vary based on suction condition, discharge head, air pressure, and fluid type.
*** Sound power measured per ISO-9614-2. Sound pressure was tested 3.28 ft (1 m) from equipment.
