Graco President 20:1 [29/48] Model 237208 series a 55 1 ratio stubby bulldog pump shown uhmwpe and ptfe packed

308017 29

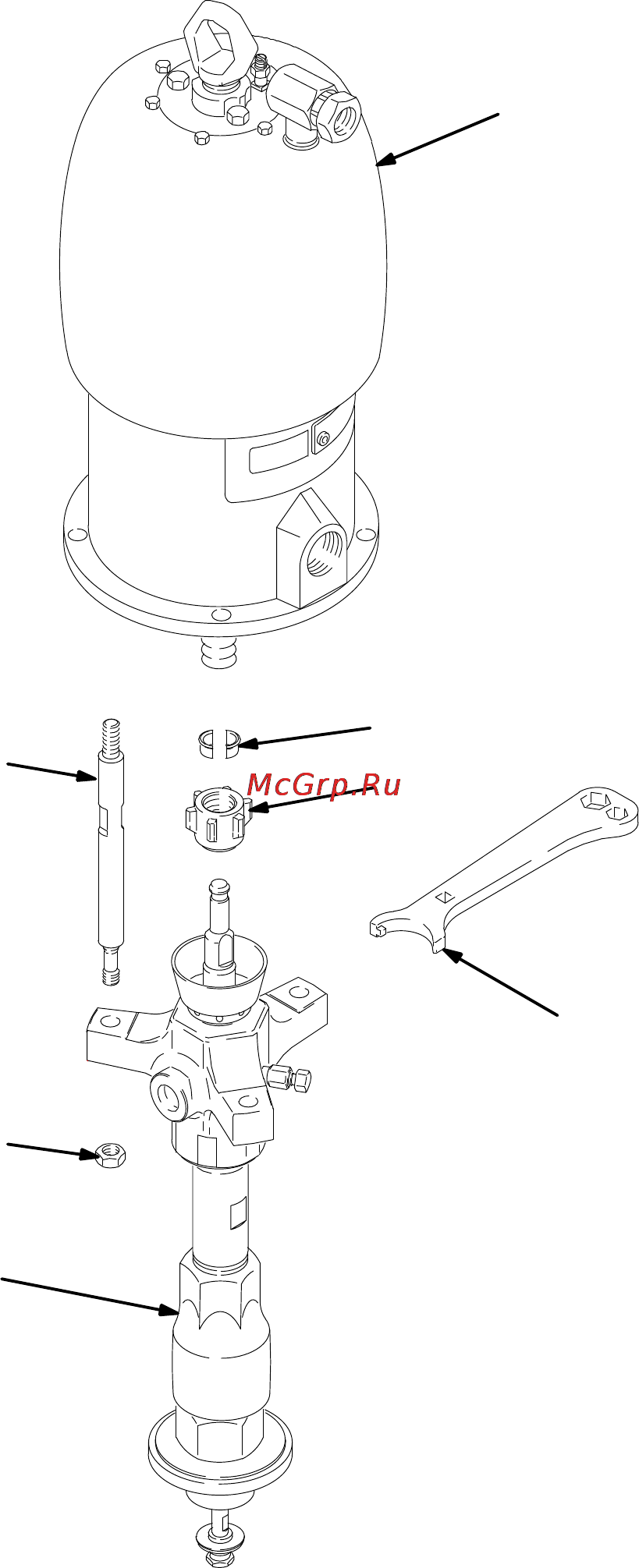

Parts

Model 237208, Series A

55:1 Ratio Stubby Bulldog Pump (shown)

(UHMWPE and PTFE Packed)

Model 237779, Series A

55:1 Ratio Stubby Quiet Bulldog Pump

(UHMWPE and PTFE Packed)

Ref.

No. Part No. Description Qty.

101 208356 AIR MOTOR, Bulldog, standard

Used on Model 237208

See 307049 for parts 1

215255 AIR MOTOR, Bulldog, quiet

Used on Model 237779

See 307304 for parts 1

102n 190000 ROD, tie; 224 mm (8.82”)

shoulder to shoulder 3

104n 186925 NUT, coupling 1

105n 184129 COLLAR, coupling 2

106n 106166 NUT, hex, self-locking; M16 x 2.0 3

107 237450 PUMP, displacement

See pages 30 & 31 for parts 1

110n 112887 WRENCH, packing nut 1

n These parts are included in Connection Kit 235417.

05667A

110

101

102

104

105

107

106
